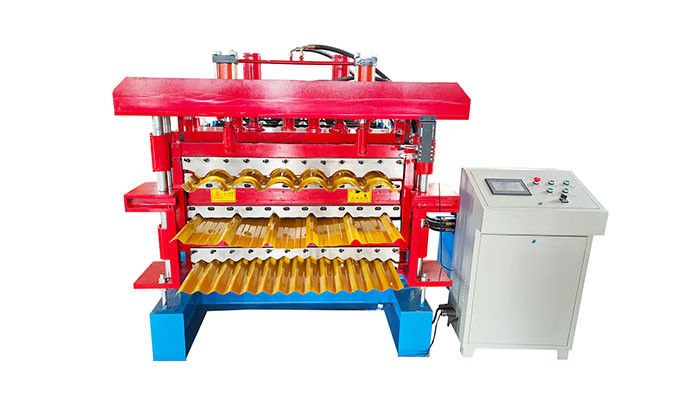

Glazed Tile IBR Sheet Three Layer Roll Forming Machine 15 Steps

Glazed Tile IBR Sheet Three Layer Roll Forming Machine 15 Steps
Glazed Tile IBR Sheet Three Layer Roll Forming Machine 15 Steps
video play

Large Image :  Glazed Tile IBR Sheet Three Layer Roll Forming Machine 15 Steps

Product Details:
Place of Origin: Cangzhou, China
Brand Name: SHITONG
Certification: ISO,CE
Model Number: 978-1025-988
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $22000-$23000
Packaging Details: Loading container
Delivery Time: 40-60 days
Payment Terms: L/C,T/T
Supply Ability: 20sets/month
Detailed Product Description
Thickness Of Matrial: 0.3-0.8 Mm Forming Steps: 15 Steps/14 Steps/13 Steps
Name: Metal Roof Making Machine Usage: Steel Roofing And Wall Panel
Color: As Required Voltage: As Required
Highlight:

IBR Sheet Three Layer Roll Forming Machine

,

Three Layer Roll Forming Machine 15 Steps

,

Glazed Tile Roll Forming Machine 15 Steps

High quality glazed tile IBR sheet three layer trapezoidal roof press making machine roll forming machinery



1. Three Profile Sheet Combination Three Layer Cold Roll Forming Machine for Roofing and Wall

--- One machine have three layers rollers.

--- We design the rollers according to customer's requirement, tell me the profile you want.

--- A hydraulic motor instead of the electric motor, the machine working speed is dobule time of before.

--- The steel we adopted for machine is GB standard, ensure machine have a long working life.



2. Three Profile Sheet Combination Three Layer Cold Roll Forming Machine for Roofing and Wall  parameters

High quality glazed tile IBR sheet double layer trapezoidal roof press making machine roll forming machinery
1.Formed Material

PPGI,GI,AI

Thickness:0.3-0.8mm
2.Decoiler
Hydraulic decoiler
Manual decoiler(will give you as free)
3.Main body
Roller station
15 rows(As your requirement)
Diameter of shaft
80mm solid shaft
Material of rollers
45# steel, hard chrome plated on the surface
Machine body frame
350 H steel
Drive
Double Chain transmission
Dimension(L*W*H)
7500*1600*1600(customize)
Weight
7.5T
4.Cutter
Automatic
cr12mov material, no scratches, no deformation
5.Power
Main Power
5.5KW
6.Voltage
380V 50Hz 3Phase
As your requirement
7.Control system
Electric Box
Customized(famous brand)
Language
English(Support multiple languages)
PLC
Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed
8-12m/min
15-20m/min
The speed depends on the shape of the tile and the thickness of the material.



Machine Components
No. Name QTY
1 Manual uncoiler 1 set
2 Feeding and leveling device 1 set
3 Roll forming system 1 set
4 Hydraulic punching and cutting 1 set
5 Product support frame 1 set
6 PLC Control System 1 set



3. roll forming machine company profiles

Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.

4. Comapny advantage:

In Botou, we start the pressure roll forming machine export business from 2008.

As a manufacturer we are specialized in all kinds of roll forming machine, we are not machine supplier, we are a roll forming solution provider.

Provide best price,good quality and fast delivery.

Machine pictures:

Glazed Tile IBR Sheet Three Layer Roll Forming Machine 15 Steps 0Glazed Tile IBR Sheet Three Layer Roll Forming Machine 15 Steps 1Glazed Tile IBR Sheet Three Layer Roll Forming Machine 15 Steps 2

 Glazed Tile IBR Sheet Three Layer Roll Forming Machine 15 Steps 3
