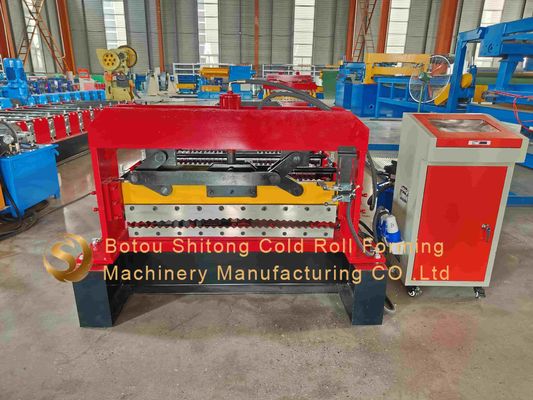

Triple Layer Corrugated IBR Glazed Tile Steel Roofing Panel Three Layer Roll Forming Machine

Triple Layer Corrugated IBR Glazed Tile Steel Roofing Panel Three Layer Roll Forming Machine
Triple Layer Corrugated IBR Glazed Tile Steel Roofing Panel Three Layer Roll Forming Machine
video play

Large Image :  Triple Layer Corrugated IBR Glazed Tile Steel Roofing Panel Three Layer Roll Forming Machine

Product Details:
Place of Origin: China
Brand Name: SHITONG
Certification: CE, ISO 9000
Model Number: 762-760 - 820
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact us for more
Packaging Details: The machine is covered with plastic film if in FCL shipping; or we will put the machines and part into wooden boxes in LCL shipping.
Delivery Time: 30 days
Payment Terms: T/T,L/C,Western Union
Supply Ability: set 20 month
Contact Now
Detailed Product Description
Machine Size: 8.6*1.2*1.5m Machine Color: Blue And Orange
Material: Galvanized Coil Usage: Steel Roofing
Control System: PLC Control Cutting System: Hydraulic Cutting System
Condition: Brand New Voltage: 380V , 440V , 220V Or Customized
Cutting Blade: Cr12MoV Transmission Mode: By Chain
Highlight:

Triple Layer IBR roofing panel machine

,

Corrugated steel roofing roll forming machine

,

Glazed tile roofing panel forming equipment

Triple Layer Corrugated IBR Glazed Tile Steel Roofing Panel Three Layer Roll Forming Machine
Product Introduction

This triple layer roll forming machine specializes in manufacturing corrugated IBR glazed tile steel roofing panels, integrating intelligent control and efficient production to meet diverse roofing material needs.

  • Overseas Technical Support: Professional engineers provide on-site services including installation, operational guidance, and maintenance.
  • Intelligent Computer-Controlled Operation: Pre-set parameters for cutting length, production quantity, and punching positions with automatic operations.
  • Multi-Language Compatibility: Control interface supports multiple languages for global users.
  • Efficient Data Management: Stores multiple work data sets for quick production task switching.
Technical Parameters & Core Components
Technical Parameters
Parameter Category Details
Raw Material Specifications
  • Feeding width: Upper layer 1000mm, Lower layer 1000mm
  • Effective width: Upper layer 820mm, Lower layer 836mm
  • Thickness: 0.3-0.8mm
Main Roll Forming Machine
  • Roller material: 45# steel with chrome plating
  • Shaft diameter: 70mm
  • Roller stations: Upper layer 16 steps, Lower layer 16 steps
Main Configuration
  • Main motor power: 5.5KW
  • Hydraulic station power: 4KW
  • Control system: Mitsubishi PLC
Core Machine Components
No. Component Name Quantity Function Description
1 Manual Uncoiler 1 set Stably unrolls steel coils to ensure continuous, uniform feeding
2 Feeding & Leveling Device 1 set Levels raw material sheets to eliminate wrinkles or deformations
3 Roll Forming System 1 set Core component for triple layer tile forming using 16-step rollers
4 Hydraulic Punching & Cutting 1 set Completes punching and cuts formed panels to pre-set lengths
5 Product Support Frame 1 set Supports finished roofing panels during discharge
6 PLC Control System 1 set Centralizes control of all processes with Mitsubishi PLC
Company Overview

With 10 years of experience in designing and manufacturing pressure equipment, we have built a solid foundation in the roll forming machinery industry.

  • Professional Team: Skilled technical talents with strong R&D capabilities and advanced production equipment.
  • Comprehensive Product Range: Including various construction equipment and roll forming machines.
  • Global Recognition: Customers in India, Mozambique, Angola, Nigeria, Russia, and European countries.
  • Customer-Centric: Committed to quality, integrity, innovation, and win-win cooperation.
Our Commitment
Pre-Purchase Guidance: Professional consultation to select the most suitable machine model.
Post-Purchase Support: Timely after-sales service to resolve operational or maintenance issues.
Frequently Asked Questions
Q: What are the key factors to consider when selecting the right roll forming machine?
A: The core factors include the machine's overall structure stability, roller shaft durability, roller material quality, motor & pump performance, and control system reliability.
Q: Do you provide OEM services for the triple layer roll forming machine?
A: Yes. Most cold roll forming machines require customization based on specific customer needs.
Q: What standard trade terms do you support?
A: We can provide technical quotations based on trade terms such as FOB, CFR, CIF, and Door-to-Door.
Q: How do you ensure product quality control?
A: Our company implements the 6S management system and all machines have passed ISO9001:2000, CE, and TUV/BV certifications.
Q: What after-sales service do you provide?
A: We offer an 18-month free warranty period and lifelong free technical support for all machines.
