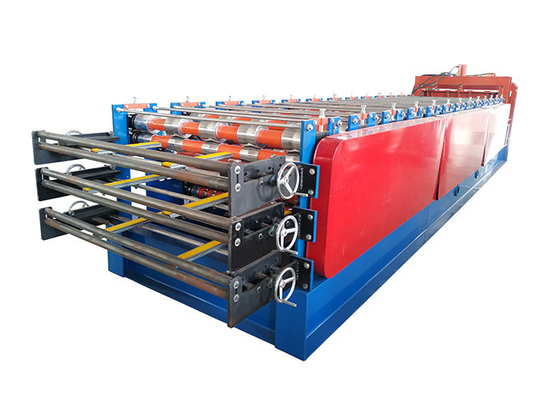

Three Layer Full Automatic Metal Roof Roll Forming Machine 0.3 - 0.8 mm

Three Layer Full Automatic Metal Roof Roll Forming Machine 0.3 - 0.8 mm
Three Layer Full Automatic Metal Roof Roll Forming Machine 0.3 - 0.8 mm
video play

Large Image :  Three Layer Full Automatic Metal Roof Roll Forming Machine 0.3 - 0.8 mm

Product Details:
Place of Origin: Cangzhou, China
Brand Name: SHITONG
Certification: ISO,CE
Model Number: 820-840-836
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $22000-$23000
Packaging Details: Loading container
Delivery Time: 40-60 days
Payment Terms: L/C,T/T
Supply Ability: 20sets/month
Contact Now
Detailed Product Description
Thickness Of Matrial: 0.3-0.8 Mm Forming Steps: 15 Steps/14 Steps/13 Steps
Name: Metal Roof Making Machine Usage: Steel Roofing And Wall Panel
Color: As Required Voltage: As Required
High Light:

0.3mm Three Layer Roll Forming Machine

,

0.8mm Three Layer Roll Forming Machine

,

0.8mm Metal Roof Roll Forming Machine

metal roof three layer full automatic roll forming machine for roofing and wall panel roll forming machine



1.

Essential details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Showroom Location:
None
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Colored Glaze Steel
Use:
ROOF
Production Capacity:
14 m/min
Place of Origin:
Hebei china
Brand Name:
JCX
Voltage:
380V
Dimension(L*W*H):
7000mm*1500mm*1700mm
Weight:
3800 kg
Warranty:
1 Year
Key Selling Points:
Easy to Operate
Rolling thinckness:
0.3-0.8mm
Feeding width:
1220mm
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
Hot Product
Warranty of core components:
1 Year
Core Components:
Motor, Other, Bearing, Gear, Pump, Engine, PLC
Cutting blade material::
Cr 12 High Grade Steel
Main frame:
300-450 H steel
Profiles:
Cold Roll Forming Machine
Roller material::
45#steel Chrome Plated
control system::
PLC(imported Brand)
Certification::
CE ISO

2. Three Profile Sheet Combination Three Layer Cold Roll Forming Machine for Roofing and Wall  parameters

High quality glazed tile IBR sheet double layer trapezoidal roof press making machine roll forming machinery
1.Formed Material

PPGI,GI,AI
Thickness:0.3-0.8mm
2.Decoiler
Hydraulic decoiler
Manual decoiler(will give you as free)
3.Main body
Roller station
15 rows(As your requirement)
Diameter of shaft
80mm solid shaft
Material of rollers
45# steel, hard chrome plated on the surface
Machine body frame
350 H steel
Drive
Double Chain transmission
Dimension(L*W*H)
7500*1600*1600(customize)
Weight
7.5T
4.Cutter
Automatic
cr12mov material, no scratches, no deformation
5.Power
Main Power
5.5KW
6.Voltage
380V 50Hz 3Phase
As your requirement
7.Control system
Electric Box
Customized(famous brand)
Language
English(Support multiple languages)
PLC
Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed
8-12m/min
15-20m/min
The speed depends on the shape of the tile and the thickness of the material.



Machine Components
No. Name QTY
1 Manual uncoiler 1 set
2 Feeding and leveling device 1 set
3 Roll forming system 1 set
4 Hydraulic punching and cutting 1 set
5 Product support frame 1 set
6 PLC Control System 1 set



3. roll forming machine company profiles

Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.

4. Comapny advantage:

In Botou, we start the pressure roll forming machine export business from 2008.

As a manufacturer we are specialized in all kinds of roll forming machine, we are not machine supplier, we are a roll forming solution provider.

Provide best price,good quality and fast delivery.

Machine pictures:

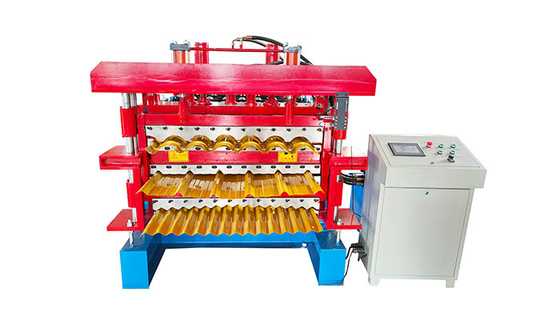

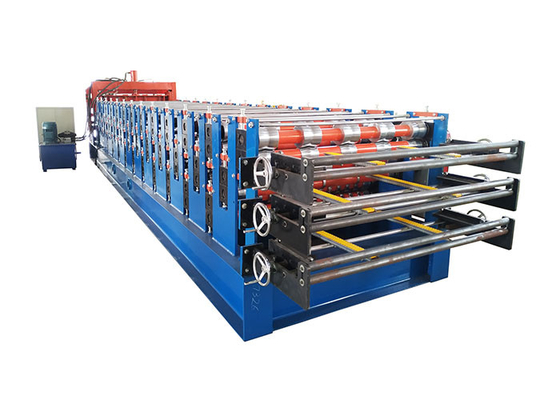

Three Layer Full Automatic Metal Roof Roll Forming Machine 0.3 - 0.8 mm 0Three Layer Full Automatic Metal Roof Roll Forming Machine 0.3 - 0.8 mm 1Three Layer Full Automatic Metal Roof Roll Forming Machine 0.3 - 0.8 mm 2

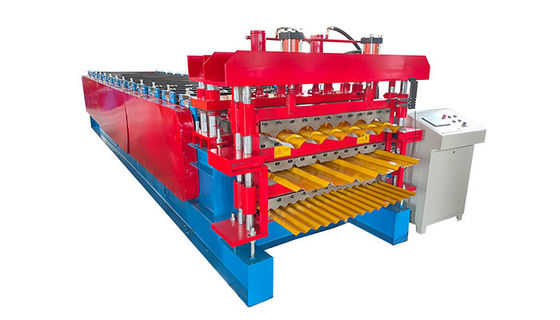

 Three Layer Full Automatic Metal Roof Roll Forming Machine 0.3 - 0.8 mm 3

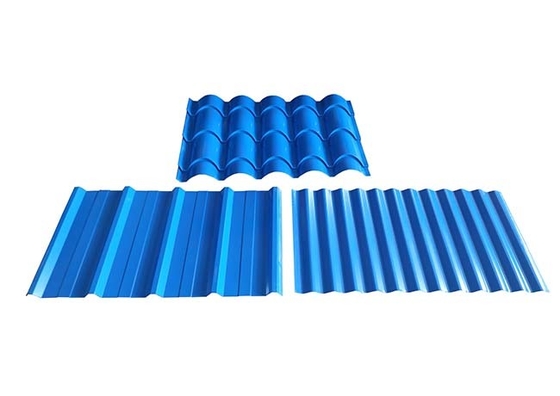

Three layer roof slate metal tile making machine trapezoidal corrugated ibr roof sheet roll forming machine

Customized shape profile panel metal roll forming roof sheet making machine,it is our company most popular products in building materials machine. For roof sheet, it include many type according to its different shape, popular type include corrugated tile roll forming machine, trapezoidal tile roll forming machine,glazed tile roll forming machine, ridge cap roll forming machine and other type profile panel roll forming machine.

When you choose roof sheet making machine, you had better learn popular shape in local,also raw material is an important considering data, if do not have good supplier in local, we can assist you purchase it in China together. we are professional factory and in this area for many years, any requires please contact us at any time!

Please feel free to contact us:

Contact person: Jessie Wang

Whatsapp/Wechat: +8613230728517

Email: jessie@shitongjixie.com

ADD:No. 1 Road, Economic Development Zone, botou, Hebei, China
