Building Roofing Panel Glazed Tile Three Layer Roll Forming Machine Steel Panel

Building Roofing Panel Glazed Tile Three Layer Roll Forming Machine Steel Panel

Building Roofing Panel Glazed Tile Three Layer Roll Forming Machine Steel Panel
Building Roofing Panel Glazed Tile Three Layer Roll Forming Machine Steel Panel Building Roofing Panel Glazed Tile Three Layer Roll Forming Machine Steel Panel Building Roofing Panel Glazed Tile Three Layer Roll Forming Machine Steel Panel

Large Image :  Building Roofing Panel Glazed Tile Three Layer Roll Forming Machine Steel Panel

Product Details:
Place of Origin: China
Brand Name: ST
Certification: ISO CE
Model Number: 825-840-836
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: contact me
Packaging Details: nude
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 sets per month
Detailed Product Description
Dimension(l*w*h): 9500mm*1550mm*1700mm Use: Roof
Tile Type: Colored Glaze Steel After-sales Service Provided: Video Technical Support
Warranty: 24 Months Control System: Totally Automatic PLC Taiwan Delta
High Light:

Colored Glaze Steel Roofing Machine

,

Glazed Tile Roofing Machine

,

Glazed Tile Cold Roll Forming Machine

Building Roofing Panel Glazed Tile Three Layer Roll Forming Machine Steel Panel



Who is Zhongchao International Trade Co.,Ltd?



As a global manufacturer of cold roll forming machine with more than 15 years experiences, ZHONGCHAO is bulding a partnerships and provide comprehensive customer service with customers in all over the world. Through resources innovative solutions and expert service, we are committed to a stable production with good quality and great service. ZHONGCHAO's machines and services are trusted and used by all of our customers, which demonstrates ZHONGCHAO's reliability and trustworthiness.



Building Roofing Panel Glazed Tile Three Layer Roll Forming Machine Steel Panel

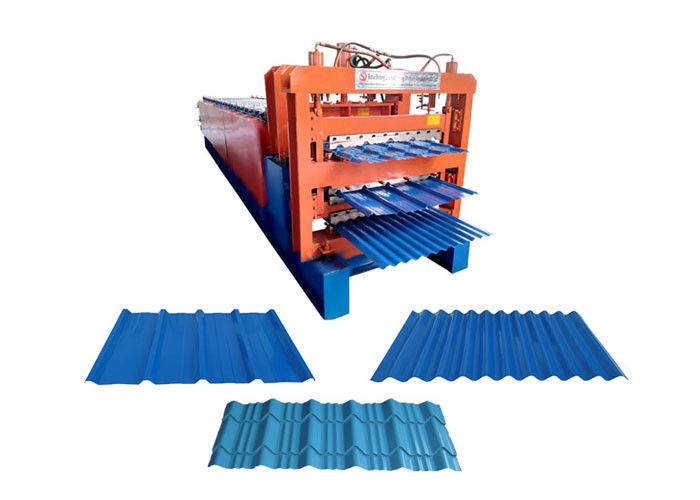

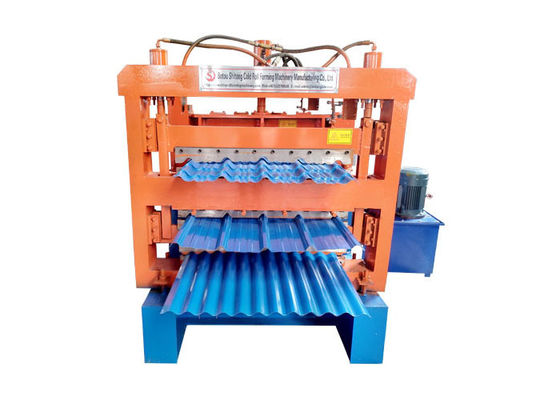

The three layer roll forming machine also called triple layer roll forming machine or multi-layer roll forming machine, shares same uncoiler, machine frames, main motor electrical control system and ect, it can produce three different profiles in one machine.



Usually, three layer roll forming machine is used for produce steel roofing sheet, corrugated sheet, glazed tile roof panel, ect. When one layer work, the other two layer will not running, it saved the power comsuption for customer.





Building Roofing Panel Glazed Tile Three Layer Roll Forming Machine Steel Panel Parameters







No. main parameter of Double-Deck Forming Machine
1 Suitable to process Color steel plate, Galvanized Board, Aluminum Plate
2 Width of the plate 1250mm
3 Rollers First layer:11 rows,
Second layer:14 rows
Third layer: 13rows
4 Dimensions 7.8*1.55*1.71m
5 Motor Power
Oil pump power
4+4kw
6 Thickness of the plate 0.3-0.6mm
7 Productivity First layer:0-3m/min
Second layer:15-20m/min
Third layer: 15-20m/min
8 Material of the cutting blade Cr12
9 Diameter of the roller Φ70mm
10 Weight About 6.2 T
11 Voltage 380V 50Hz 3phases
12 Main frame 300mmH steel
14 Control system PLC Frequency ControlSystem with touch screen





Building Roofing Panel Glazed Tile Three Layer Roll Forming Machine Steel Panel process

The complete line includes decoiler, forming machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system to keep products accurate.



Packing Method



Main machine is packaged with plastic film

Transportation

All machines need one 40 feet container to hold



Payment Term



30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.

Delivery Time

Within 35 days after receiving deposit.



Warranty



Two years, and we will provide technical support for wholelife of the equipment.

If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.



Building Roofing Panel Glazed Tile Three Layer Roll Forming Machine Steel Panel 0Building Roofing Panel Glazed Tile Three Layer Roll Forming Machine Steel Panel 1Building Roofing Panel Glazed Tile Three Layer Roll Forming Machine Steel Panel 2
