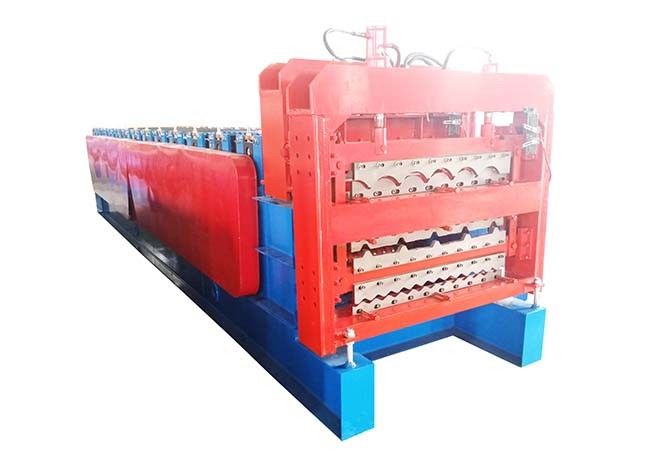

3 Profiles Tile Roofing Three Layer Roll Forming Machine IBR Sheet

3 Profiles Tile Roofing Three Layer Roll Forming Machine IBR Sheet
3 Profiles Tile Roofing Three Layer Roll Forming Machine IBR Sheet 3 Profiles Tile Roofing Three Layer Roll Forming Machine IBR Sheet 3 Profiles Tile Roofing Three Layer Roll Forming Machine IBR Sheet

Large Image :  3 Profiles Tile Roofing Three Layer Roll Forming Machine IBR Sheet

Product Details:
Place of Origin: China
Brand Name: ST
Certification: ISO CE
Model Number: 825-840-836
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: contact me
Packaging Details: nude
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 sets per month
Detailed Product Description
Dimension(l*w*h): 9500mm*1550mm*1700mm Use: Roof
Tile Type: Colored Glaze Steel After-sales Service Provided: Video Technical Support
Warranty: 24 Months Control System: Totally Automatic PLC Taiwan Delta
High Light:

IBR Sheet Roll Forming Machine

,

3 Profiles Tile Roofing Forming Machine

,

Colored Glaze Steel Tile Roofing Machine

3 Profiles Tile Roofing Three Layer Roll Forming Machine IBR Sheet



3 Profiles Tile Roofing Three Layer Roll Forming Machine IBR Sheet



With 3 profiles in one machine, the three layer roll forming machine can help customer to reduce the investment costs and save factory space. We are confident with our rich experience of roll forming machine design and manufacturing, we will provide useful and satisfying three layer roll forming machines to customers.



A three layer roll forming machine have three layers or levels, so can produce three different profiles of the steel sheets. The trapezoidal sheet, corrugated sheet and steel tile roof, customer can choose any kind of three different profiles and make a combination in oue three layers machine.





3 Profiles Tile Roofing Three Layer Roll Forming Machine IBR Sheet Parameters



1. Suitable material: Color steel plate, Galvanized Board, Aluminum Plate, etc.
2. Suitable thickness: 0.3-0.8mm or other thickness
3. Forming specifications: Depending on specific requirements of customers
4. Forming speed: First layer:0-3m/min
Second layer:15-20m/min
Third layer: 15-20m/min
5. Main motor power: 4Kw (depending on specific requirements of users)
6. Cutting mode: Hydraulic cutting
7. Hydraulic station power: 4Kw (depending on specific requirements of users)
8. Control system: PLC systems from Mitsubishi, Schneider and Panasonic products, electrical appliances of famous brands
9. Way of drive: One inch chain
10. Optional accessories: Hydraulic uncoiler.
11. Material of roller: High grade 45# forged steel plated with hard chrome plating



No. main parameter of Double-Deck Forming Machine
1 Suitable to process Color steel plate, Galvanized Board, Aluminum Plate
2 Width of the plate 1250mm
3 Rollers First layer:11 rows,
Second layer:14 rows
Third layer: 13rows
4 Dimensions 7.8*1.55*1.71m
5 Motor Power
Oil pump power
4+4kw
6 Thickness of the plate 0.3-0.6mm
7 Productivity First layer:0-3m/min
Second layer:15-20m/min
Third layer: 15-20m/min
8 Material of the cutting blade Cr12
9 Diameter of the roller Φ70mm
10 Weight About 6.2 T
11 Voltage 380V 50Hz 3phases
12 Main frame 300mmH steel
14 Control system PLC Frequency ControlSystem with touch screen





3 Profiles Tile Roofing Three Layer Roll Forming Machine IBR Sheet process

The complete line includes decoiler, forming machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system to keep products accurate.

Packing Method



Main machine is packaged with plastic film

Transportation

All machines need one 40 feet container to hold



Payment Term



30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.

Delivery Time

Within 35 days after receiving deposit.



Warranty



Two years, and we will provide technical support for wholelife of the equipment.

If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.



3 Profiles Tile Roofing Three Layer Roll Forming Machine IBR Sheet 03 Profiles Tile Roofing Three Layer Roll Forming Machine IBR Sheet 13 Profiles Tile Roofing Three Layer Roll Forming Machine IBR Sheet 2
