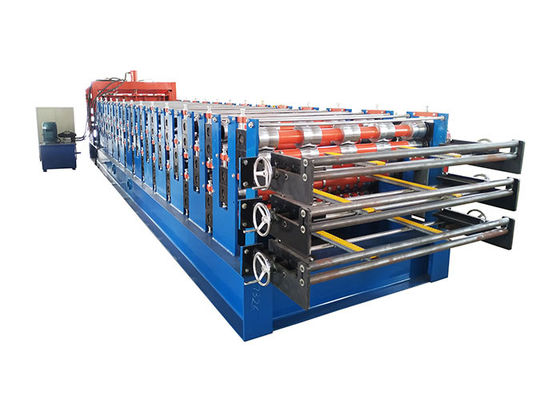

Iron Sheet Three Layer Roll Forming Machine Trapozoidal And Corrugated

Iron Sheet Three Layer Roll Forming Machine Trapozoidal And Corrugated

Iron Sheet Three Layer Roll Forming Machine Trapozoidal And Corrugated
Iron Sheet Three Layer Roll Forming Machine Trapozoidal And Corrugated Iron Sheet Three Layer Roll Forming Machine Trapozoidal And Corrugated Iron Sheet Three Layer Roll Forming Machine Trapozoidal And Corrugated

Large Image :  Iron Sheet Three Layer Roll Forming Machine Trapozoidal And Corrugated

Product Details:
Place of Origin: China
Brand Name: ST
Certification: ISO CE
Model Number: 825-840-836
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: contact me
Packaging Details: nude
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 sets per month
Detailed Product Description
Dimension(l*w*h): 9500mm*1550mm*1700mm Use: Roof
Tile Type: Colored Glaze Steel After-sales Service Provided: Video Technical Support
Warranty: 24 Months Control System: Totally Automatic PLC Taiwan Delta
High Light:

Iron Sheet Roll Forming Machine

,

Trapezoidal Three Layer Roll Forming Machine

,

Corrugated Three Layer Roll Forming Machine

Iron Sheet Three Layer Roll Forming Machine Trapozoidal And Corrugated



1. Iron Sheet Three Layer Roll Forming Machine Trapozoidal And Corrugated



 The roll forming machines can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.



Advantages of the roofing sheet roll forming machine
1. High efficiency
2. Lower cost
3. Long life time: 30years
4. Low energy consumption
5. PLC control, Panasonic or Siemens or eura
6. Easy operation
7. Beautiful and best quality



Iron Sheet Three Layer Roll Forming Machine Trapozoidal And Corrugated Parameters



No. main parameter of Double-Deck Forming Machine
1 Suitable to process Color steel plate, Galvanized Board, Aluminum Plate
2 Width of the plate 1250mm
3 Rollers First layer:11 rows,
Second layer:14 rows
Third layer: 13rows
4 Dimensions 7.8*1.55*1.71m
5 Motor Power
Oil pump power
4+4kw
6 Thickness of the plate 0.3-0.6mm
7 Productivity First layer:0-3m/min
Second layer:15-20m/min
Third layer: 15-20m/min
8 Material of the cutting blade Cr12
9 Diameter of the roller Φ70mm
10 Weight About 6.2 T
11 Voltage 380V 50Hz 3phases
12 Main frame 300mmH steel
14 Control system PLC Frequency ControlSystem with touch screen





Iron Sheet Three Layer Roll Forming Machine Trapozoidal And Corrugated Working process

The complete line includes decoiler, forming machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system to keep products accurate.

Packing Method



Main machine is packaged with plastic film

Transportation

All machines need one 40 feet container to hold



Payment Term



30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.

Delivery Time

Within 35 days after receiving deposit.



Warranty



Two years, and we will provide technical support for wholelife of the equipment.

If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.



Iron Sheet Three Layer Roll Forming Machine Trapozoidal And Corrugated 0Iron Sheet Three Layer Roll Forming Machine Trapozoidal And Corrugated 1Iron Sheet Three Layer Roll Forming Machine Trapozoidal And Corrugated 2
