3 Stations Roof Curving Machine Sheet Metal Steel Bending 3 Phase

3 Stations Roof Curving Machine Sheet Metal Steel Bending 3 Phase

3 Stations Roof Curving Machine Sheet Metal Steel Bending 3 Phase
3 Stations Roof Curving Machine Sheet Metal Steel Bending 3 Phase
video play

Large Image :  3 Stations Roof Curving Machine Sheet Metal Steel Bending 3 Phase

Product Details:
Place of Origin: HEBEI
Brand Name: SHITONG MACHINERY
Certification: CE, ISO
Model Number: HC686
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: contact the sales,she will give you the best offer
Packaging Details: The machine is covered with plastic film if in FCL shipping; or we will put the machines and part into wooden boxes in LCL shipping.
Delivery Time: 30-40 work days
Payment Terms: T/T, Western Union
Supply Ability: 20 set per month
Detailed Product Description
Feeding Material: After Roll-formed Roof Panel Shaft Diameter: 70 Mm
Roller Material: High Grade NO. 45 Forged Steel With 0.05mm Hard Chrome Plating Main Frame: 300 H Steel
Hydraulic Station Power: 3 KW Feeding Step: 3 Stations
Working Speed: 1-3m/min Warranty: 2 Years
Weight: 2000 Kg Voltage: 380V 50Hz 3 Phase
Color: Customer Requirement
High Light:

3 stations roof curving machine

,

plc roof curving machine

,

3 phase roof panel curving machine

Roof Sheet Curving Metal Bending Curve Steel Bending Machine Made In China



1. Company information

This machine is made up of roll forming machine,manual decoiler,cutting machine,PLC computer control and hydraulic system,out put tables.The machine is stable,no noise,no shake.

It is one unit, the control box and the hydraulic station for the cutting are all put under the machine frame to save space.

Shitong company is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.



2. Technical parameters:

Article No. Item Name Specification
1 Width of feeding material 1000 mm coil sheet
2 Thickness of feeding material 0.3-0.8 mm coil sheet
3 Roller station 3 stations
4 Shaft Diameter 75 mm
5 Productivity 8-15 t/min
6 Rollers' material 45# steel with 0.05 mm chrome
7 Shaft material 45# steel with 0.05 mm chrome
8 Weight 1.5 tons
9 length 1.5 m
10 Voltage 380V 50Hz 3phases
11 Control PLC
12 Decoiler 5 tons
13 Motor 5.5 kw
14 Driving way Chain transmission
15 Chain size 1 inch
16 Cutting system Hydraulic cutter


3. Our Service and Guarantee:
3.1. We provide the technical support for whole life of self lock standing seam roof roll forming machine.
3.2. Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free.
3.3. When need the technician to go abroad, we will arrange the technician.

3.4. 1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.



4. Our advantage

1). To design and make the best roll forming machine, we took EUROPEAN quality standard;

2). Choose the best material and components, and adopting our 17+ years experience;

3). We achieves that the machine capacity is double of the competitors;

4). The machine's working speed can be 5m/min;

5) . Very easy to install and operate the roll forming machine.



5. FAQ

5.1. Can you provide some spare parts?
A: Yes,the quick-wear parts will send you together with the machine.
5.2. Do you sell only standard machines?
A: No, most of our machines were produced according to customers' specifications, we accept OEM.
5.3. What will you do if the machine is broken?
A: Within the warranty(12 months),if the broken parts can't be repaired well, we can send you the new ones freely,
but you should pay the express cost. If it is beyond the warranty period, we can discuss how to solve the
problem perfectly, anyhow we offer the technical support for the whole life of the machine.
5.4. Can you be responsible for transport?
A: Yes, please tell me the destination port or your address. we have rich experience in transportation.
5.5. How to visit your company?
A: 1) Fly to Beijing airport, by high speed train From Beijing Nan to Cangzhou Xi railway station(1 hour);
     2) or Fly to Shanghai Airport, by high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), we would meet you at Cangzhou Xi railway station.

5.6.What policy of your garentee?

A: Within the One-YEARS period, we could supply you the replacement parts free of charge

for any damaged parts caused by quality problems after two years,you need to buy by factory cost.

5.7. How is this machine's service life?

A: In the normal maintenance,the service life at least 8 years.


6. Machine picture for your reference

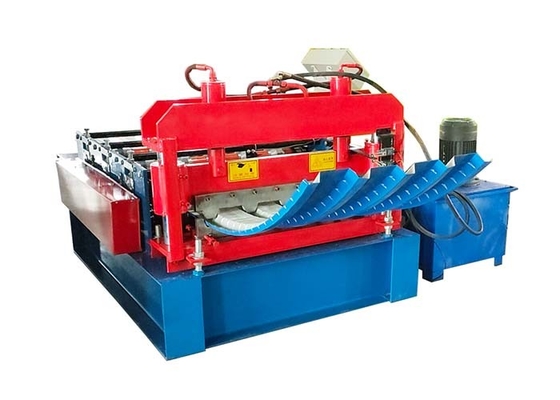

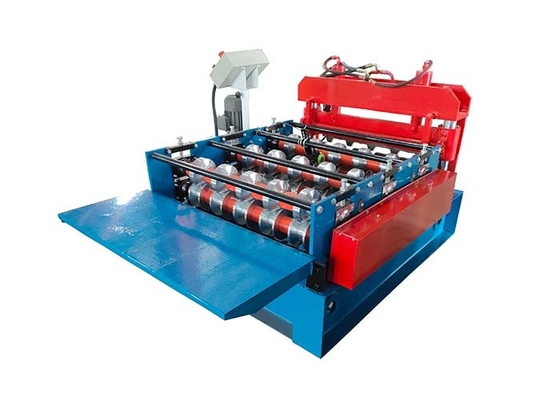

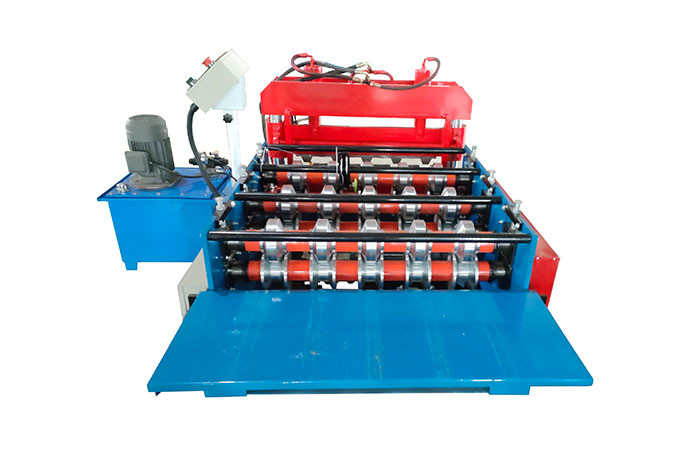

3 Stations Roof Curving Machine Sheet Metal Steel Bending 3 Phase 03 Stations Roof Curving Machine Sheet Metal Steel Bending 3 Phase 13 Stations Roof Curving Machine Sheet Metal Steel Bending 3 Phase 2
