Product Details:
Payment & Shipping Terms:
|
| COLOR: | AS YOU REQUIRE | Voltage: | AS YOU REQUIRE |
|---|---|---|---|
| Station: | 4 Steps | SHAFT: | 70MM |
| CUTTING: | HYDRAULIC CUTTING | Name: | Roofing Sheet Roll Forming Machine |
| High Light: | 70MM Curving Roll Forming Machine,Camber Curving Roll Forming Machine,Hydraulic Arch Roof Curving Machine |
||
Curving Former Machine Color Steel Roofing Sheets Hydraulic Arch Camber curving roll forming machine
Main parameters
| No. | main parameter of roll forming machine | |
| 1 | Suitable to process | Color steel plate |
| 2 | Width of the plate | 1200mm |
| 3 | Rollers | 4rows |
| 4 | Dimensions | 3.0*1.6*1.5m |
| 5 | Power | 4+3kw |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity | 15-20m/min |
| 8 | Diameter of the roller | Φ70mm |
| 9 | Weight | About 2T |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Rolling material | Carbon Steel 45# |
| 12 | Material of the cutting plate | Cr12 |
| 13 | Processing precision | Within 1.00mm |
| 14 | Control system | PLC control |
| All technical parameters can be changed, according to user's need. | ||

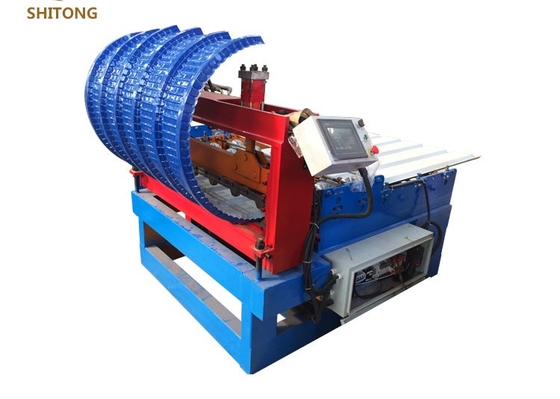

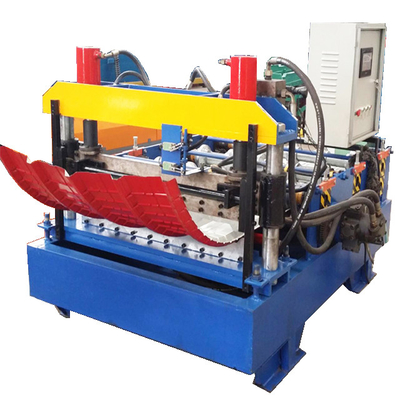

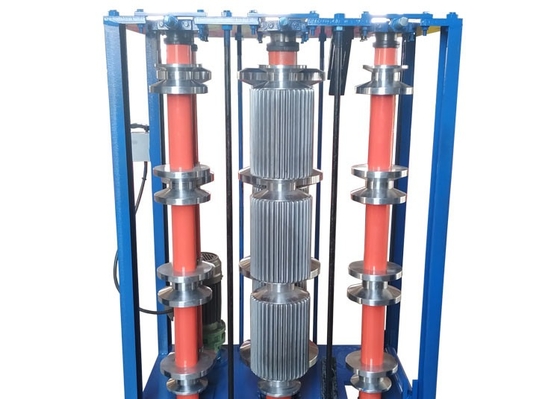

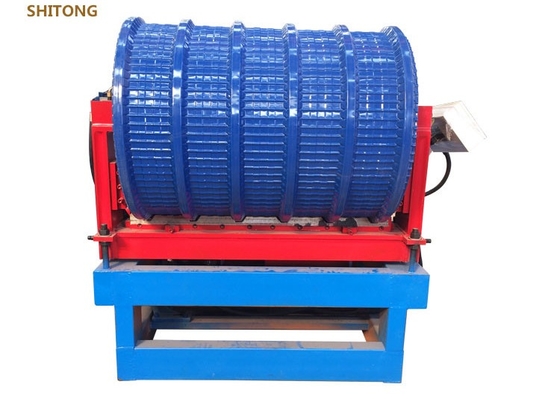

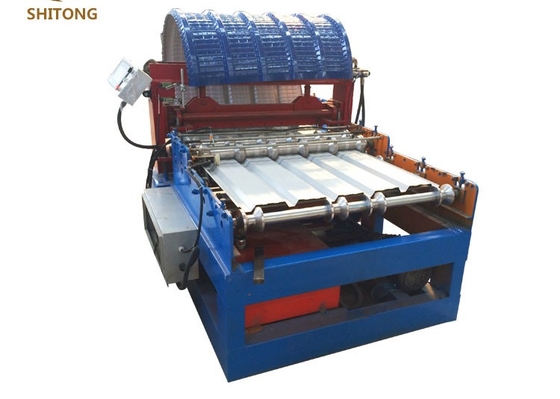

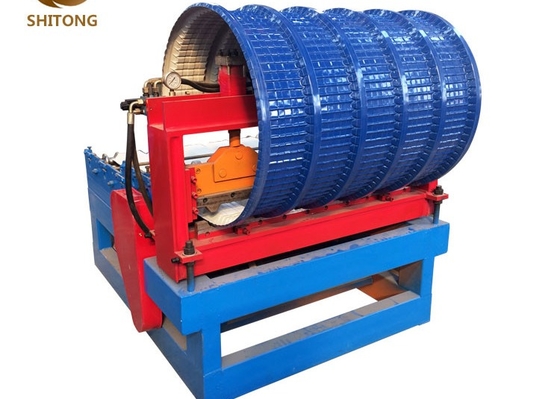

MAIN MACHINE PICTURES
Why choose this curving machine?
1. Certificate: ISO 9001, CE,
2. Lifetime services
3. 72mm diameter solid steel shaft. Roller cover with 0.05mm chrome; Lifetime>10years.
4. Introduced Mitsubishi PLC with touch screen to machine controll system.
5. One worker operation (minimum)
6. Heat treatment:Cutting blade. Quenched treatment: Cr12 mould steel cutter
7. Product cut-to-length.
8.Technician overseas installing and training available
Item |
Specification | |
| Mterial | Thickness (mm) | 0.4-0.7 |
| Yield strength (mpa) | 235-345 | |
| Roller material | 45#Chrome steel | |
| Motor power | Aabout 3kw | |
| Control mode | Delta PLC | |
Our company provides design layout diagrams free of charge, forming designers go to Germany to study every year, and plan the machine scheme exclusively for you according to your product size
| Payment | 30% T/T in advance |
| Packaging | standard seaworthy packing |
| Delivery | within 25 days |
| Guarantee | 18 months free service/ pay service all the machine life |
| Installation and training |
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face. to teach you to install and operate. please arrange board and lodging and other necessary things. |
