Hydraulic Press Roof Curving Machine Radius Adjustable Crimping Steel Roof

Hydraulic Press Roof Curving Machine Radius Adjustable Crimping Steel Roof
Hydraulic Press Roof Curving Machine Radius Adjustable Crimping Steel Roof Hydraulic Press Roof Curving Machine Radius Adjustable Crimping Steel Roof Hydraulic Press Roof Curving Machine Radius Adjustable Crimping Steel Roof

Large Image :  Hydraulic Press Roof Curving Machine Radius Adjustable Crimping Steel Roof

Product Details:
Place of Origin: Cangzhou, China
Brand Name: SHITONG
Certification: ISO,CE
Model Number: T 1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact us get the best price
Packaging Details: Loading container
Delivery Time: 35 days
Payment Terms: L/C,T/T
Supply Ability: 20 sets/month
Detailed Product Description
Name: Roof Sheet Curving Machine Machine Color: Blue And Orange
Drive Method: 1" Chain Working Speed: 0-3 M/min
Maching Weight: 1000 KG Control System: PLC
Material Of Blade: Cr12 Heat Treatment Cutting Mode: None Stop Cutting
Rows Of Rollers: 12 Stations
High Light:

hydraulic press roof curving machine

,

radius adjustable roof curving machine

,

radius adjustable roof panel curving machine

Hydraulic Press Radius Adjustable Roof Curving Machine Crimping Steel Roof



The advantages of Hydraulic Press Radius Adjustable Roof Curving Machine Crimping Steel Roof as follows:



1. Useful design to let the machine cost is lower than other competitors.

2. Have 3-5 shafts to feeding the panel into the press mould.

3. The arch radius is adjustable, can change the data in PLC.

4. Smalle size and easy operation.



Technical parameters:



Suitable Material Material Steel, galvanized steel
Thickness 0.5-1 mm
Material of rollers High grade 45# forged steel, surface hard chromium plating
Rows of rollers 3-5 stations
Material of shafts High grade 45# forged steel
Diameter of shafts 50mm
Material of blade Cr12 Heat Treatment
Cutting Mode None stop cutting
Speed 0-3 m/min
Side plate thickness 16 mm
Total power 3 kw
Voltage 380V 50HZ 3Phase
Appearance size (About) 2000mm*1400mm*1500mm
Weight(About) 1 tons
Electronic control system PLC + Touch Screen





Packing Method



Main machine is packaged with plastic film

Transportation



All machines need one 40 feet container to hold



Payment Term



30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.

Delivery Time

Within 40 days after receiving deposit.



Warranty



Two years, and we will provide technical support for wholelife of the equipment.

If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.





We specialized in manufacturing Color steel roll forming machinery, C UM Z purlin roll forming machine,Glazed tile roll forming machine, floor deck roll forming machine, shutterdoor roll forming machine, highway guardrail roll forming machine, downspout machine, weldingpipe machine. For metal processing, we have slitting machine, cutting machine, decoiler, punching machine and others.

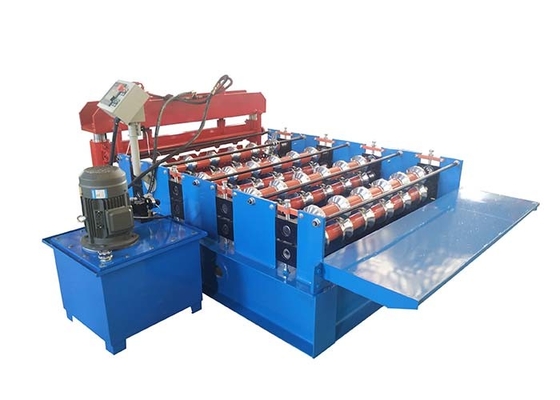

Hydraulic Press Roof Curving Machine Radius Adjustable Crimping Steel Roof 0

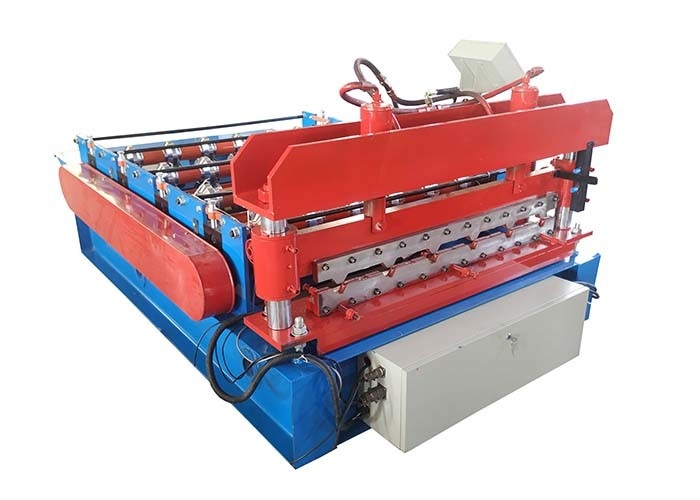

Hydraulic Press Roof Curving Machine Radius Adjustable Crimping Steel Roof 1

Hydraulic Press Roof Curving Machine Radius Adjustable Crimping Steel Roof 2
