Product Details:
Payment & Shipping Terms:
|
| Feeding Material: | After Roll-formed Roof Panel | Shaft Diameter: | 70 Mm |
|---|---|---|---|
| Roller Material: | High Grade NO. 45 Forged Steel With 0.05mm Hard Chrome Plating | Main Frame: | 300 H Steel |
| Hydraulic Station Power: | 3 KW | Feeding Step: | 3 Stations |
| Working Speed: | 1-3m/min | Warranty: | 2 Years |
| Weight: | 2000 Kg | Voltage: | 380V 50Hz 3Phase |
| Color: | Customer Requirement |

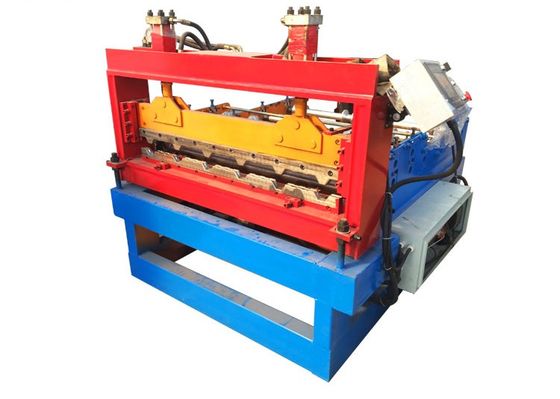

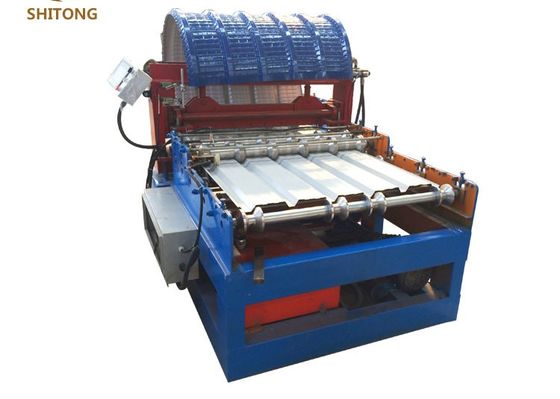

Color Steel Sheet Crimping Curving Roofing Roll Forming Machine With Hydraulic Pump Station Press
1. Company information
Shitong machinery sells roll forming machines after carrying out research on the products. They include Arch Sheet Roll Forming Machines, arch sheet molding machines, flat sheet molding machines and more. You can trust us, which is a professional Arch Sheet Roll Forming Machine manufacturer with more than 20 years of experience. Please contact us and we will help you find the exact machine you are looking for!
Usually Automatic Metal Roof Panel Crimp Roof Panel Curving Roll Forming Machine is used with metal roofing sheet roll forming machine, In some places we need different shape roof sheet,so we need Automatic Metal Roof Panel Crimp Roof Panel Curving Roll Forming Machine to make curved roof sheets such like some building corner.
2. Technical parameters:
| Roof Curving Roll Forming Machine | ||||
| 1 | Suitable to process | Color alu-zinc steel roof sheet,galvanized roof sheet,aluzinc roof sheet | ||
| 2 | Roller | 3Rows based on design | ||
| 3 | Dimensions | 2.6*1.5*1.6m | ||
| 4 | Motor Power | 3Kw | ||
| 5 | Pump Station Motor | 3Kw.Lichao Brand | ||
| 6 | Thickness of the plate | 0.3-0.8mm | ||
| 7 | Productivity | 3-5m/min | ||
| 8 | Material of the cutting blade | Cr12,Quenched treatment 58ºC-60ºC | ||
| 9 | Diameter of the roller | Φ70mm | ||
| 10 | Weight | About 2450kgs | ||
| 11 | Main structure of the machine | 350H beams | ||
| 12 | Processing precision | Within 1.0mm | ||
| 13 | Side panel of machine | 16mm | ||
| 14 | Chain Wheel and Cycle Chain | 1 Inch | ||
| 15 | Voltage | 380V 50Hz 3phases or as customer's need | ||
| 16 | Control system | PLC control (Delta) | ||
| 17 | Frequency system | Delta | ||
| 18 | Drive mode | Motor driver | ||
| 19 | Touch screen | Delta | ||
| 20 | Rolling materials | 45# forging steel with chromium plate | ||
| 21 | Length Tolerance | ±2mm | ||

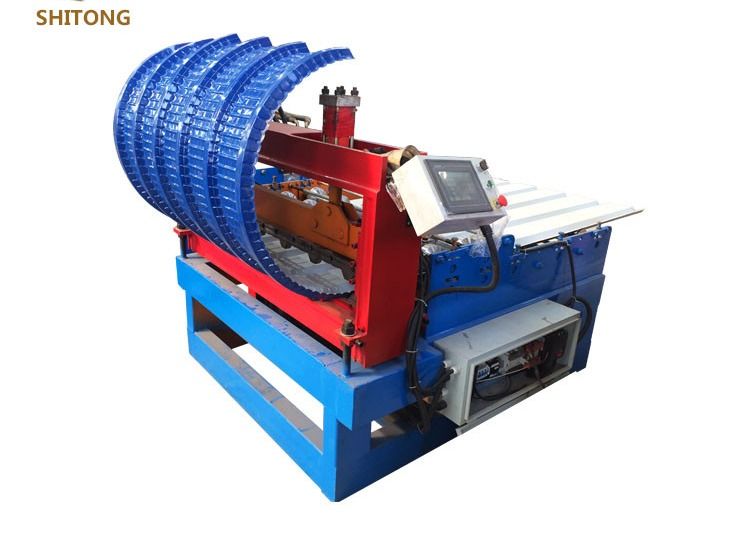

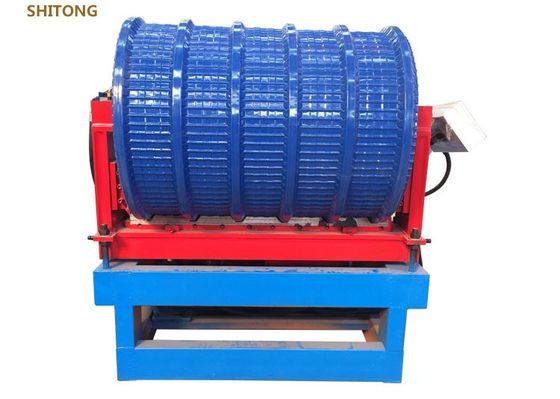

3. Roof curving machine introduction
Usually Automatic Metal Roof Panel Crimp Roof Panel Curving Roll Forming Machine is used with metal roofing sheet roll forming machine, In some places we need different shape roof sheet,so we need Automatic Metal Roof Panel Crimp Roof Panel Curving Roll Forming Machine to make curved roof sheets such like some building corner.
4. Our machine advantage
4.1 More efficient and accurate execution of production orders;
4.2 High equipment reliability;
4.3 Little waste of materials and energy;
4.4 High productivity;
4.5 High quality materials, get a longer service life;
4.6 All parts of the machine are processed with precision, and the surface of the roll is chromeplated to ensure that customers can get qualified products at the same time, it can avoid the scratch of the color steel surface paint, and increase the service life of the roll;
4.7 Customized coil processing solutions to solve all aspects of technical problems.
5. FAQ
Q: Can you make the machine according to my design or photo type?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine according to your demand or photo type that you are going to book with us.
Q: Are you a factory or trading company?
A: We are a factory located in YingKou city, LiaoNing Province, China. Our city is near Beijing. All clients from abroad and home are warmly welcome to visit our factory!
Q: How do you guarantee the quality of the products?
A: Every section of our production has strict manufacture process, than professional inspectors check every section of the production, next the production will work for testing quality, which must be 100% quality assurance. Unqualified resolute don't a better factory.
Q: What is your service?
A: We provide the technical support for whole life. Pre-sales service includes inquiry and design support and view our factory. After-sales service includes training how to instal the machine, training how to use the machine, and engineers available to service machinery overseas.
