Product Details:
Payment & Shipping Terms:
|
| Feeding Material: | After Roll-formed Roof Panel | Shaft Diameter: | 70 Mm |
|---|---|---|---|
| Roller Material: | High Grade NO. 45 Forged Steel With 0.05mm Hard Chrome Plating | Main Frame: | 300 H Steel |
| Hydraulic Station Power: | 3 KW | Feeding Step: | 3 Stations |
| Working Speed: | 1-3m/min | Warranty: | 2 Years |
| Weight: | 2000 Kg | Voltage: | 380V 50Hz 3Phase |
| Color: | Customer Requirement |

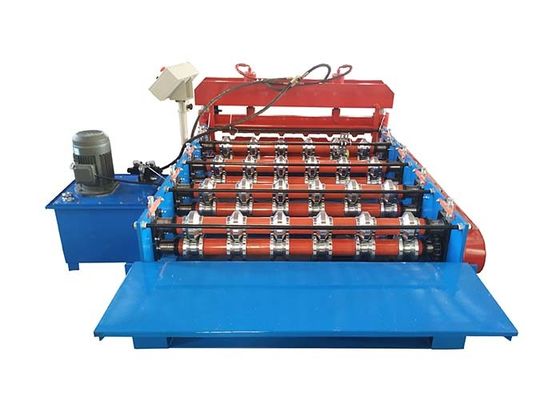

Automatic PPGI Aluminium Roofing Sheet Roof Panel Curving Crimping Machine For Roof Tile
1. Company information

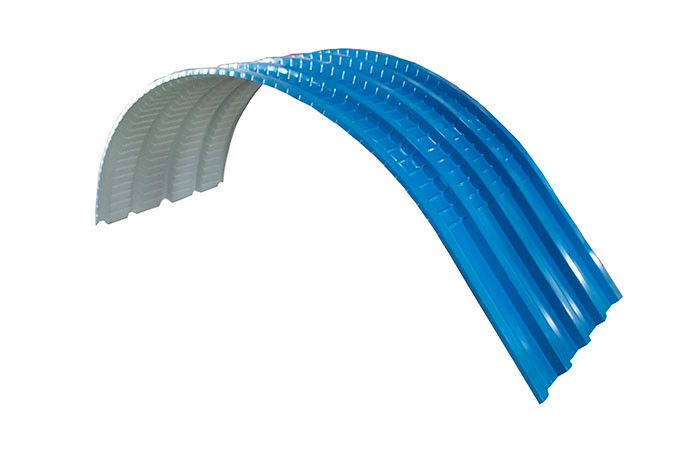

Auto Aluminium Roofing Sheet Roof Panel Curving Crimping Machine has different types which used together with corrugated sheet and IBR sheet, or glazed tile sheet. The curved roof sheet is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product It has advantage of pretty appearance, durable using and so on.
It is one unit, the control box and the hydraulic station for the cutting are all put under the machine frame to save space.
Shitong company is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
2. Technical parameters:
| No. | IBR Roof Curving Roll Forming Machine | |
| 1 | Suitable to process | Color alu-zinc steel roof sheet,galvanized roof sheet,aluzinc roof sheet |
| 2 | Roller | 3Rows based on design |
| 3 | Dimensions | 2.6*1.5*1.6m |
| 4 | Motor Power | 3Kw |
| 5 | Pump Station Motor | 3Kw. Lichao Brand |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity | 3-5m/min |
| 8 | Material of the cutting blade | Cr12,Quenched treatment 58ºC-60ºC |
| 9 | Diameter of the roller | Φ70mm |
| 10 | Weight | About 2450kgs |
| 11 | Main structure of the machine | 350H beams |
| 12 | Processing precision | Within 1.0mm |
| 13 | Side panel of machine | 16mm |
| 14 | Chain Wheel and Cycle Chain | 1 Inch |
| 15 | Voltage | 380V 50Hz 3phases or as customer's need |
| 16 | Control system | PLC control (Delta) |
| 17 | Frequency system | Delta |
| 18 | Drive mode | Motor driver |
| 19 | Touch screen | Delta |
| 20 | Rolling materials | 45# forging steel with chromium plate |
| 21 | Length Tolerance | ±2mm |
3. Packing and Shipping
3.1 Auto Aluminium Roofing Sheet Roof Panel Curving Crimping Machine need one 20/40 feet container to load .
3.2 We have professional technicians for loading to make sure machine has no damage.
3.3 Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you..
4. Our advantage
4.1 We are a factory with nearly 20 years experiences on Roll Forming Machines;
4.2 We have our own research and development team with strong ability to solve all kinds of problems;
4.3 We have stable raw material suppliers to ensure the best quality and on time supplying with low cost;
4.4 We have more than 20 technicians that can go abroad for the after-sale service;
4.5 We have more than 100 kinds and models products for your choice, you can find the most kind of roll forming machines from us;
4.6 We have Laser Cutting Machine, CNC Machining Center, Polishing Line, Painting Line, etc. advanced production equipments to ensure the quality of each part and the best appearance of our machines;
5. FAQ
Q1, If our country's voltage is different from yours, how to solve that?
A1, The usual voltage is 380v,220v,415v. If yours are not one of them, we will design the electric motor to suit your voltage.
Q2, We bought your roll forming machine line, but we couldn't install and debug it?
A2, Don't worry about that, when finished the machine, we will send you the manual book which shows you how to use the machine; if you still don't know, we can record a video to teach you how to operate the machine.
Q3, About the after service, if the machine has problem out of guarantee?
A3, All the machines are one guaranteed, life maintenance. It means if you order our machine, you will be our customer for lifetime, you can ask us anytime about the machine issues.
Q4, Do you have any other service?
A4, We can manufacture, design, installation and debug various roll forming machines including standard and customized machines.
It is free to assemble machine and train your works, but the buyer should pay for the round-trip airplane ticket, and arrange accommodation during that time.
Q5, How to visit your company?
A5, 1) Fly to Beijing airport, by high speed train From Beijing Nan to Cangzhou Xi railway station(1 hour);
2) or Fly to Shanghai Airport, by high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), we would meet you at Cangzhou Xi railway station.
Q6, What policy of your garentee?
A6, Within the One-YEARS period, we could supply you the replacement parts free of charge
for any damaged parts caused by quality problems after two years,you need to buy by factory cost.
