Product Details:
Payment & Shipping Terms:
|
Thickness: | 0.3mm-0.8mm | Shaft Diameter: | 70 Mm |
---|---|---|---|
After-sales Service Provided: | Video Technical Support | Warranty: | More Than 5 Years |
Voltage: | 380V 50HZ 3phase | Name: | Iron Sheet Making Machine |
Weight: | 3.5 Tons | Color: | Blue |
Roller Material: | Carbon 45# Steel,45#steel | Power: | 4Kw |

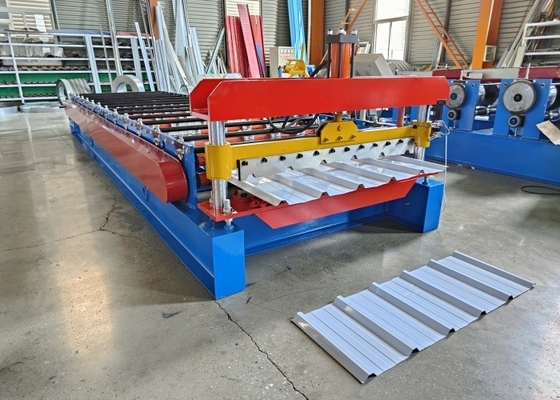

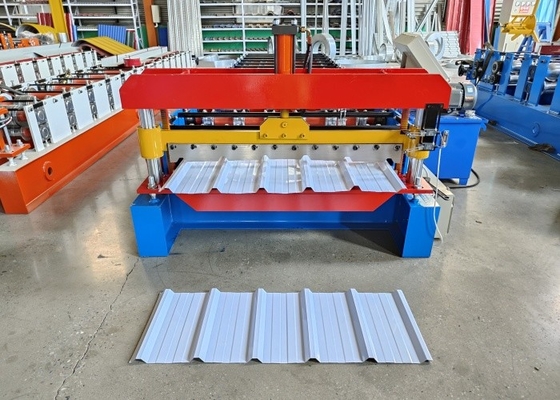

Precise 840 -1000 aluminum blue steel plate roll forming machine
1. Company information
BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD. was established in 2001.Our company is a comprehensive enterprise intergrating production,sales and service.We are mainly devoted to the development and manufacturing of metal plate cold bending roll forming equipment.
We have high quality professional teams,skillful talents,strong technical force,strong and indenpendent reaserch and development capabilities,advanced production equipment and a perfect after-sales service system.We have great confidence in the quality and precision of our product.Our customers feedback said that it is a great machine,no noise,clean,very advanced technology ,and it also has the features of light sturcture and reasonable design.
2. Technical parameters:
configurations | manual decoiler, main machine of roll forming, cutting device, output table, electric motor, PLC control system | ||||
Material | processing material | Colored Steel plate, Galvanized Board, Aluminum Plate | |||
thickness | 0.3mm-0.8mm | ||||
Efficienty width | 1050mm | ||||
Coil width | 1200mm | ||||
Manual decoiler | The maximum load capacity:5 ton | Expand by band | |||
The coil inside diameter:450-550mm | |||||
Suitable Coil width:1250mm | |||||
Main Forming machine | Forming steps | 11steps | |||
Shaft diameter | 70 mm | ||||
Thick of arch frame | 16mm | ||||
Frame body | High strength steel pipe weld with color steel sheet cover | ||||
roller material | 45# steel | ||||
shaft material | 45# steel | ||||
cutter material | Cr12 mold steel with quenched treatment | ||||
Transmission | By 1” chain | ||||
Work speed | 20-25m/min | ||||
Hydraulic system | Automatic hydraulic cutting after forming, without wasting. | ||||
Control Device |
PLC control touch screen Program language: English/Chinese(or as required) |
||||
Operating mode | Button+touch screen | ||||
Total power | 4 kw | ||||
Main body color | Blue and orange(or as required) | ||||
Voltage | 380v/50hz/3ph(or as required) |
3.Stanard Configuration
5 tons Manual decoiler |
1 set |
Main roll forming machine |
1 set |
Hydraulic pump system |
1 set |
PLC control system |
1 set |
Receiving Stand |
2 sets |
Spare parts |
1 box |
5.Packing Method
Main machine is packaged with plastic film
6.Transportation
All machines need one 20 feet container to hold
7.Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
8.Delivery Time
Within 35 days after receiving deposit.
9.Warranty
Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
Contact Person: Mr. jack
Tel: +86 18932785588
