Building Material Prefab Steel Frame C Purlin Roll Forming Machine Automatic

Building Material Prefab Steel Frame C Purlin Roll Forming Machine Automatic
Building Material Prefab Steel Frame C Purlin Roll Forming Machine Automatic Building Material Prefab Steel Frame C Purlin Roll Forming Machine Automatic Building Material Prefab Steel Frame C Purlin Roll Forming Machine Automatic Building Material Prefab Steel Frame C Purlin Roll Forming Machine Automatic Building Material Prefab Steel Frame C Purlin Roll Forming Machine Automatic Building Material Prefab Steel Frame C Purlin Roll Forming Machine Automatic

Large Image :  Building Material Prefab Steel Frame C Purlin Roll Forming Machine Automatic

Product Details:
Place of Origin: China
Brand Name: ST
Certification: CE ISO
Model Number: C49-100
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $9000
Packaging Details: nude
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 sets per month
Detailed Product Description
Name: Light Steel Keel Roll Forming Machine Speed: 45-50 M/min
Side Plate Thickness: 16 Mm Total Power: 5.5 Kw
Appearance Size (About): 5000mm*1000mm*1500mm Weight(About): 2 Tons
Highlight:

Prefab Purlin Roll Forming Machine

,

Building Material Purlin Roll Forming Machine

,

Steel Frame c purlin roll former

Building Material Machinery Prefeb Automatic C Purlin Typle Steel Frame & Purlin Roll Forming Machines



(1) 5Tons un-coiler
Description There are different choices, please turn to the catalogue of un-coiler
(2) The general machine parameter
Suitable roll forming material Galvanized steel sheet or Ex cold rolled sheet
Thickness 1.5-2.4mm
Frame design Wall-plate-frame-design /Strong-stand-frame-design
Roll stages 14 stages
Material of forming roller GCr15, CNC lathes, Hard Chrome Coated
Shafts Diameter Φ75mm
Main motor power 18.5KW, Frequency speed control
Max. Line speed of roll former 7-10m/min (Higher speed is available, depends on the specification required by the buyer)
Hydraulic group power 15KW
Material of cutting blade Cr12, heat treatment
Electric Standard 380V /50Hz/3PH or as per customers requirements
Machine Dimensions 11760mm×1980mm×1630mm (estimated only)
Major Color of Machine Painted RAL 5015 (Blue) or as per customers requirements
(3) PLC Control system
PLC Siemens brand (ABB brand is available if required)
Touch Screen Siemens brand (ABB brand is available if required)
Inverter Schneider brand (ABB brand is available if required)
Encoder Omron brand
(4) Product rack
Description Un-powered, 6 meters length

(5) Option:

1. Hydraulic pre-shearing device

2. CE certificate

Please refer to the attached pictures for details

(6) Service after sell

In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.

Installation:

(1) If installation is needed, Liming (the seller) will dispatch technician to the buyer’s factory abroad to assist regulating the machine with charge free. The buyer should assist Liming to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.

(2) If installation is needed, the buyer shall make the following preparation before arrival of technicians.

a) Position the machine in the buyer’s factory.

b) Prepare necessary electric wiring.

c) Prepare material of trial running.

d) Provide labors for assistance and installation during installation.

e) If possible, One Chinese-speaking interpreter so that the communication between the buyer and seller’s technician will go smoothly.

(7) About us
Please visit the web site: www.xmliming.com.cn for detailed information



Components and Technical Specification

No   Technical Specification
1

Manual Uncoiler



Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:5T

Inner diameter: 500-508mm

2

Feeding Table





Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

3

Main Roll Forming Machine



Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.



4

Hydraulic System





Hydraulic oil: 40#

hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

6 Computer Control Cabinet

The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use

PLC:EURA



Shearing Mechanism



It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12,quenching treatment

7

Output table



It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.

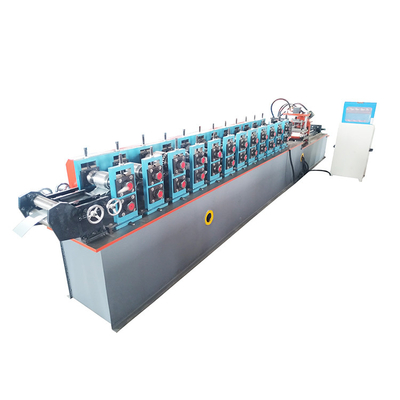

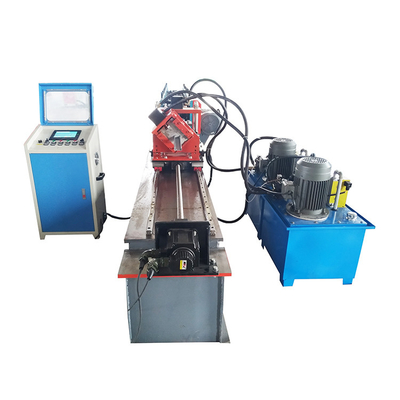

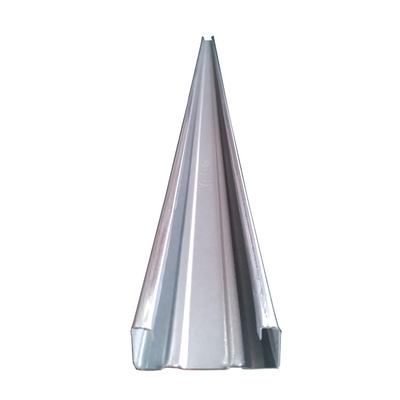

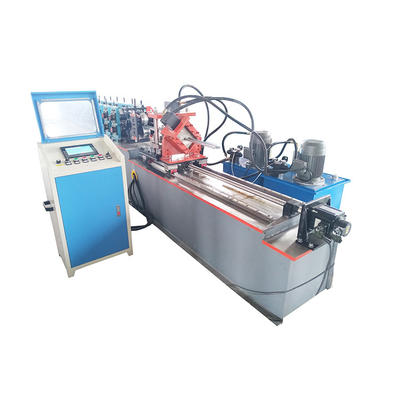

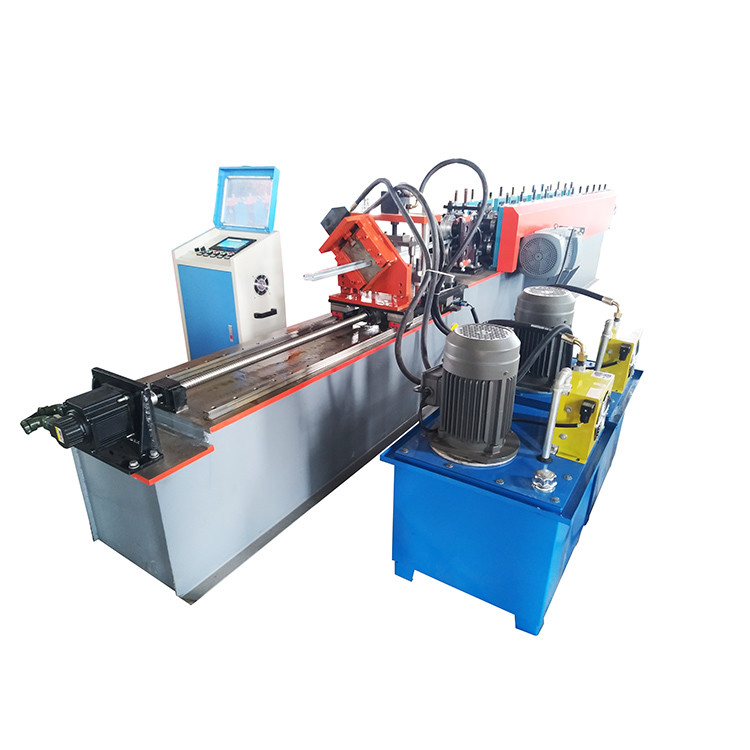

Building Material Prefab Steel Frame C Purlin Roll Forming Machine Automatic 0Building Material Prefab Steel Frame C Purlin Roll Forming Machine Automatic 1Building Material Prefab Steel Frame C Purlin Roll Forming Machine Automatic 2
