Product Details:
Payment & Shipping Terms:
|
| Machine Size: | 8.6*1.2*1.5m | Key Selling Points: | Easy To Operate |
|---|---|---|---|
| Forming Speed: | 15-25M/min | Usage: | C Purlin Making |
| Machine Weight: | 6500 KGS | Voltage: | 380V 50Hz 3phase |
| Highlight: | purlin roll former,steel frame roll forming machine |
||
Fast changed size C Z section purlin cold roll forming machine for steel construction
1. Brief instruction of C Z section purlin cold roll forming machine
This roll forming machine is widely used in many kinds of industrial factory, workshop, civilian buildingsand so on , It has advantage of pretty appearance, durable using lower cost,high efficiency,reliable working and so on. It includes manual decoiler, main body of roll forming machine, hydraulic cutting system, PLC control system and discharge table. The users can set order as per their requirement to produce the special pieces and length products. This machine line can work automatically by PLC control system. It is easy to operate and running stably.
2. General parameters of roll forming machine production line
| No. | Item | parameter |
| 1 | Machine size | 10500*2100*1800mm |
| 2 | Machine weight | 7000kg |
| 3 | Machine power | 22kw |
| 4 | Hydraulic engine | 7.5kw |
| 5 | Roll speed | 15-25M/Min |
| 6 | Roll stations | 16 |
| 7 | Roller material | 45# steel, CNC lathes, hard Chrome Coated |
| 8 | Effective width | C80-300mm,Z140-300mm |
| 9 | Feeding width | As per required |
| 10 | Voltage | 380V 50Hz 3PH/Customized |
| 11 | Material thickness | 1.5-3.0mm/Customized |
| 12 | Control System | Schneider/Delta/Customized |
| Machine Components | ||
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
3. After-sales service
(1) Once you paid the deposit, we will start the production as soon as possible. When the machine is finished, you can come to check the machine, we will arrange your accommodation and relative schedule. If you don't come, we can test the machine and send you test video. It's no problem.
(2) Our machines have one year guarantee, within one year, if the machine parts has some problem, we will be in charge of the repairing or replace. Also we will deliver the customer some spare parts together with the machine when loading the machine.
(3) If the buyer need overseas debug, we can also send technician to your factory, the customer should undertake all related cost including the accommodation and round-trip ticket of technician: 100 USD/day . The buyer should make sure the safety of technician.
4. FAQ (about our roll forming machine)
Q1:What is the MOQ?
A:For roll forming machine,the MOQ is one set.
Q2:Could you design the machine for me?
A:Yes,we have professional team of engineers and are able to design and product roll forming machine as your requestment. Or if you have own drawings,we can design it as your drawings.
Q3:Are you trading company or factory?Can we visit your factory?
A:We have our own production line and factory.Warmly welcome to our factory. Once we have your schedule, we will arrange the professional sales team to follow up your case.
Q4: What's your after-sale service?
A: We'll provide engineer overseas service to help you install and debug the machine,in addition,free replacement of parts in one year warranty.
Q5: How is your Payment Term?
A:T/T,L/C ,Western Union
Q6: What’s your delivery time?
A:Normally it is about 45 days, but we will delivery as soon as possible

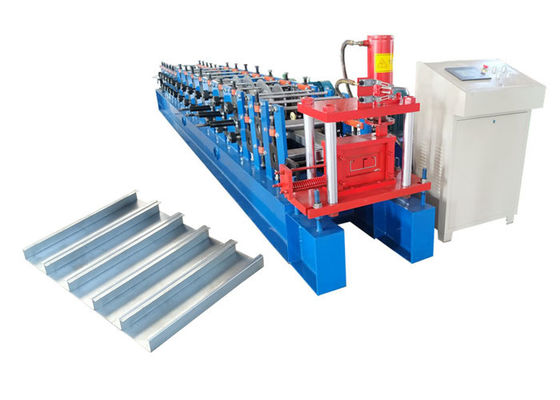

5. Roll forming machine pictures:
