Product Details:
Payment & Shipping Terms:
|
| Coil Width: | 914mm | Main Frame: | 300 H Steel |
|---|---|---|---|
| Name: | Corrugated Sheet Roll Forming Machin | Cutter Materia: | Cr12 Heat Treatment |
| Diameter Of Shaft: | 70mm | Cut Mode: | Hydraulic Forming After Cutting Off |
| Worrking Speed: | 3-5 Meters/minute | Machine Power: | 4 Kw |
| High Light: | PPGI sheet Glazed Tile Roll Forming Machine,Glazed Tile Roll Forming Machine 440V,roof tile roll forming machine 440V |
||

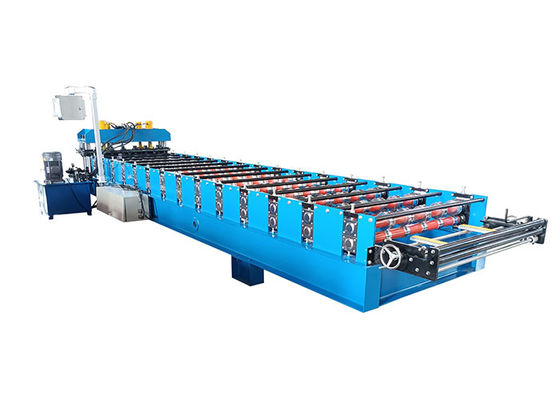

Glazed Tile Roll Forming Machine Assure Your Roof Tile System Quality Perfect
1. Glazed Tile Roll Forming Machine Assure Your Roof Tile System Quality Perfect
Glazed tile roll forming machine is used to produce metal glazed tile, step tile, roof tile, and corrugated tile, etc. It’s also named tile forming machine, step tile roll forming machine, roof tile roll forming machine, corrugated tile forming machine, etc. The glazed tile is much different from traditional ceramic roof tile, with lightweight, energy-efficient features.
Glazed tile forming machine can proceed prepainted steel coil, galvalume, etc. The typical material thickness is from 0.3 to 0.8mm. In some particular cases, Reliance machinery also can proceed with 0.25mm thickness material. The material width will be between 914mm and 1250mm.
2. Glazed Tile Roll Forming Machine Assure Your Roof Tile System Quality Perfect Parameters:
| Suitable raw material | PPGI sheet 0.3-0.8mm |
| Input width | 914 to 1250mm |
| Rolling speed | 3-6 m/minute |
| Cut off system | Hydraulic stop cutting 4 kw motor |
| Motor power | 5.5kw |
| Voltage | 220V/380V/440V |
| Machine weight | 5 tons |
| Roller step | 12 steps |
| Drive type | 1" chains |
Decoiler--Manual prectting--Material Guiding--Roll forming M/C--Hydraulic System--Post Cutting--Exit Rack
This machine takes GI/PPGI as raw material, through a series steps and can produce the barrel type roofing sheets.
The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.
A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also trainyour workers/technician face to face.
B. Without visiting, we will send you user manual and video to teach you to install and operate.
C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
1. How to get the quotation?
1.1.Give me the profile drawing and thickness,this is the important.
1.2 Other specific requirements is welcome,such as the speed,power and voltage you want.
1.3 If you don't have your own profile drawing, we can recommend some model types according to your local market standard.
2. Do you have after sales support?
Yes, we are glad to support advice. Our technicians available across the world.
3. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend a lot of time and money in the research and development of equipment and material selection, so that our machine is more automated, more reliable and accurate, and has a higher service life. Our equipment can last for nearly 20 years, and we offer a two-year warranty.
4. What can we do if the machine broken?
The machine will be tested before shipment with coil, ensure everything is ready 2.We will prepare some spare parts along with the machine, ensure our customer can solve the issue in a shortest time.Both the sale person and technician can give you the service overseas and make training for the workers,the sale person can make translation, so that the installation and training will be more clear and easily.
