| Coil Width: | 1200mm | Main Frame: | 300 H Steel |
|---|---|---|---|
| Name: | Corrugated Sheet Roll Forming Machin | Cutter Materia: | Cr12 Heat Treatment |
| Diameter Of Shaft: | 70mm | Cut Mode: | Hydraulic Forming After Cutting Off |
| Worrking Speed: | 3-5 Meters/minute | Machine Power: | 4 Kw |
| Highlight: | automatic roof panel roll forming machine,4kw roof panel roll forming machine,roofing sheet roll forming machine 4kw |
||

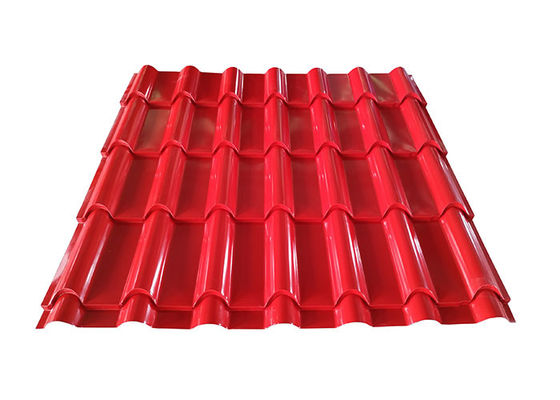

Automatic Tile Machines Tiles Roof Panel Roll Forming Machine Color Glazed
1. Automatic Tile Machines Tiles Roof Panel Roll Forming Machine Color Glazed
-- We are professional in the field of the roll forming machine, we have the many different profile of the machine, our customers are from each countries in the world, if you would like to know the popular profile in your market, you also can inquiry to us. We can give you professional suggestion.
-- The manufacturing technology and product concept of the machine are constantly progressing and improving. The technical level of the products is continuously improved, the wheels are made more refined, and the raw materials of the paint are now using environmentally friendly materials, which conform to the ecological concept.
-- The motors and accessories of the products are all famous brands. Ensure the long-term use of the machine.
2. Automatic Tile Machines Tiles Roof Panel Roll Forming Machine Color Glazed Parameters:
|
No.
|
Metal roof glazed tile making machine
|
|
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|
Roller
|
12Rows
|
|
3
|
Dimensions
|
5.8*1.6*1.7m
|
|
4
|
Motor Power
|
4Kw
|
|
5
|
Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 4200kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
Decoiler--Manual prectting--Material Guiding--Roll forming M/C--Hydraulic System--Post Cutting--Exit Rack
This machine takes GI/PPGI as raw material, through a series steps and can produce the barrel type roofing sheets.
The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.
A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also trainyour workers/technician face to face.
B. Without visiting, we will send you user manual and video to teach you to install and operate.
C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
1. How to get the quotation?
1.1.Give me the profile drawing and thickness,this is the important.
1.2 Other specific requirements is welcome,such as the speed,power and voltage you want.
1.3 If you don't have your own profile drawing, we can recommend some model types according to your local market standard.
2. Do you have after sales support?
Yes, we are glad to support advice. Our technicians available across the world.
3. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend a lot of time and money in the research and development of equipment and material selection, so that our machine is more automated, more reliable and accurate, and has a higher service life. Our equipment can last for nearly 20 years, and we offer a two-year warranty.
4. What can we do if the machine broken?
The machine will be tested before shipment with coil, ensure everything is ready 2.We will prepare some spare parts along with the machine, ensure our customer can solve the issue in a shortest time.Both the sale person and technician can give you the service overseas and make training for the workers,the sale person can make translation, so that the installation and training will be more clear and easily.
