Product Details:
Payment & Shipping Terms:
|
| Coil Width: | 1000mm | Main Frame: | 300 H Steel |
|---|---|---|---|
| Name: | Corrugated Sheet Roll Forming Machin | Cutter Materia: | Cr12 Heat Treatment |
| Diameter Of Shaft: | 70mm | Cut Mode: | Hydraulic Forming After Cutting Off |
| Worrking Speed: | 12-20meters/minute | Machine Power: | 4 Kw |
| High Light: | automatic corrugated roll forming machine,corrugated panel roll forming machine,corrugated steel panel roll forming machine |
||

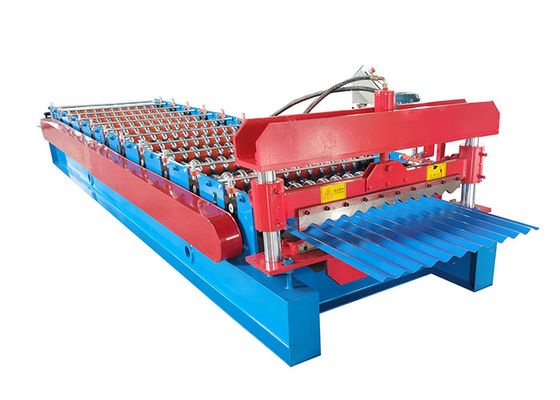

Automatic Corrugated Wave Panel Sheet Roll Forming Machine Making Tiles
1. Automatic Corrugated Wave Panel Sheet Roll Forming Machine Making Tiles
– Automatic roll forming and cutting with Inverter, PLC, HMI
– Automatic programmable length settings via the touch panel
– Roller and blade are fabricated from alloy 60-62HRC
– Save history for orders in 30 days
– Customize design
– Stable operation with strong power and body frame
2. Automatic Corrugated Wave Panel Sheet Roll Forming Machine Making Tiles Technical Parameters:
| No. | Item | Unit | Parameter | |
| 1 | Material | Type | PPGI; PPGL; GI; GL; PPAL | |
| Thickness of Material | mm | 0.3-0.8mm | ||
| 2 | Material Width | mm | 762-1450mm | |
| 3 | Production Speed | m/min | 0-12m/min(common) | |
| High Production Speed | ||||
| 4 | Effective Width of Product | mm | 635-1260mm | |
| 5 | Roller Material | 45#, Cr12, GCr15, GCr12MoV | ||
| 6 | Drive Type | By Chain or Gear or Gearbox | ||
| 7 | Motor Power | KW | 4+4 | |
| 8 | Brand of Elecetric Control System | Delta or Siemens or Schneider | ||
| 9 | Dimension( L * W * H ) | m | 8.5*1.45*1.5 | |
| 10 | Warranty | month | 24 | |
|
Roll forming system |
|
This machine takes GI/PPGI as raw material, through a series steps and can produce the barrel type roofing sheets.
The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.
A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also trainyour workers/technician face to face.
B. Without visiting, we will send you user manual and video to teach you to install and operate.
C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
1. How to get the quotation?
1.1.Give me the profile drawing and thickness,this is the important.
1.2 Other specific requirements is welcome,such as the speed,power and voltage you want.
1.3 If you don't have your own profile drawing, we can recommend some model types according to your local market standard.
2.Do you have after sales support?
Yes, we are glad to support advice. Our technicians available across the world.
3. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend a lot of time and money in the research and development of equipment and material selection, so that our machine is more automated, more reliable and accurate, and has a higher service life. Our equipment can last for nearly 20 years, and we offer a two-year warranty.
4. What can we do if the machine broken?
The machine will be tested before shipment with coil, ensure everything is ready 2.We will prepare some spare parts along with the machine, ensure our customer can solve the issue in a shortest time.Both the sale person and technician can give you the service overseas and make training for the workers,the sale person can make translation, so that the installation and training will be more clear and easily.
