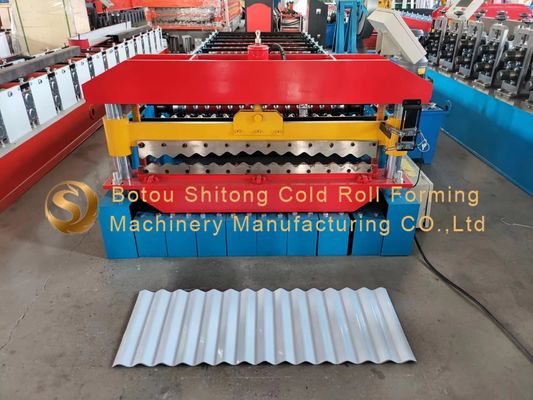

High-Efficiency Corrugated Sheet Roll Forming Machine For Roof And Wall Panel Production With Hydraulic Cutting
Product Overview
The Corrugated Sheet Roll Forming Machine is a high-performance piece of equipment engineered specifically for efficient production of corrugated sheets—primarily used for roofing and wall panel applications. Boasting a robust build with an approximate weight of 58,000 Kgs, it easily handles heavy-duty manufacturing tasks, ensuring long-term stability even in high-frequency operation.
What sets this machine apart is its blend of precision and flexibility: it supports color customization based on client requirements, allowing the end corrugated sheets to align with diverse project designs—from residential roofing to commercial and industrial cladding.
Equipped with 13-16 roller stations and 18 forming stations, it guarantees smooth, consistent sheet shaping: roller stations lay the foundation for corrugated profiles, while forming stations refine dimensions to meet exact specifications, eliminating uneven edges or mismatched shapes.
Core Features & Technical Parameters
Key Features
| Feature Category |
Details |
| Product Name |
Corrugated Sheet Roll Forming Machine |
| Primary Application |
Roof and wall panel production |
| Roller Stations |
13-16 (ensures gradual, precise profile shaping) |
| Cutting Type |
Hydraulic cutting (fast, clean cuts with minimal material waste) |
| Machine Dimensions |
Approximately 7.5m*1.5m*1.2m (compact design for factory space efficiency) |
| Forming Steps |
11 stations (streamlined shaping process for consistent quality) |
| Core System |
Corrugated Roll & Board Handling System (automates material handling, reduces labor) |
Technical Parameters
| Parameter |
Specification |
| Application |
Roof/wall panel |
| Roller Stations |
13-16 |
| Cutting Type |
Hydraulic cutting |
| Shaft Diameter |
75mm (sturdy for stable power transmission) |
| PLC Brand |
Panasonic (reliable, high-precision control) |
| Processable Material Thickness |
0.4-0.6mm |
| Hydraulic Station Power |
11KW (strong power for efficient cutting/forming) |
| Machine Weight |
Approximately 58,000 Kgs |
| Control System |
PLC + Converter (intuitive operation, easy parameter adjustment) |
| Voltage |
380V/50Hz/3Phase (compatible with industrial power supplies) |
Application Scenarios
This Corrugated Sheet Roll Forming Machine (model: Corrugated 988, brand: SHITONG MACHINERY) is a versatile solution tailored for multiple industries and scenarios, with origins in China and CO, CE certifications to guarantee quality and compliance with international standards.
It is particularly ideal for:
- Construction industry: Producing corrugated roofing/wall panels for residential buildings, commercial complexes, and industrial workshops.
- Roofing material manufacturers: Meeting large-scale production demands for standardized or customized corrugated sheets.
- Small-to-large operations: With a minimum order quantity of 1 set, it caters to small workshops; its monthly supply capacity of 15 sets (for standard models) also supports bulk orders from large manufacturers.
Customization & Cooperation Terms
Customization Services
We offer targeted customization for the Corrugated Sheet Roll Forming Machine to align with specific production needs:
- Brand: SHITONG MACHINERY
- Model: Corrugated 988
- Origin: China
- Certifications: CO, CE
- Forming Configuration: 11 forming steps, 18 forming stations
- Core Add-On: Corrugated Roll & Board Handling System (enhances material handling efficiency)
Cooperation Terms
| Term Type |
Details |
| Minimum Order Quantity |
1 set |
| Pricing |
Negotiable (flexible to fit different budget scales) |
| Packaging |
Secure wrapping with plastic film (prevents scratches/dust during transit) |
| Delivery Time |
50-60 days (from order confirmation to shipment) |
| Payment Method |
T/T (safe, traceable transaction process) |
| Monthly Supply Capacity |
15 sets (for standard models) |
Packaging & Shipping
- Packaging: The machine is wrapped in durable plastic film to shield it from moisture, dust, and minor impacts during storage and transit. For vulnerable components (e.g., control panels, hydraulic parts), additional foam padding is used to avoid damage.
- Shipping: We partner with reliable courier services (such as UPS or FedEx) to ensure timely delivery. The shipping method is selected based on the destination and customer's delivery timeline needs. Once shipped, a tracking number is provided for real-time monitoring of the shipment status.
Support & After-Sales Services
To ensure smooth operation of the Corrugated Sheet Roll Forming Machine, we provide comprehensive support:
- Technical Assistance: Our team of experts offers guidance for machine setup, troubleshooting, and answers to technical queries—available via phone, email, or video call.
- Training Programs: Customized training sessions to help operators master the machine's features, operation, and basic maintenance, reducing operational errors.
- Maintenance Services: Regular maintenance recommendations and on-demand support to extend the machine's service life and maintain consistent performance.
FAQ
Q: What is the brand and model of this machine?
A: The brand is SHITONG MACHINERY, and the model is Corrugated 988.
Q: Where is the machine manufactured?
A: It is manufactured in China.
Q: Does the machine have any certifications?
A: Yes, it holds CO and CE certifications.
Q: What payment method is accepted?
A: We accept payment via T/T (Telegraphic Transfer).
Q: Can the machine be customized?
A: Yes, we offer customization for parameters like forming stations and color (for end products) to meet specific production needs.
