Automatic Quick Change Purlin Roll Forming Machines For C And Z Purlin

Automatic Quick Change Purlin Roll Forming Machines For C And Z Purlin
Automatic Quick Change Purlin Roll Forming Machines For C And Z Purlin
video play

Large Image :  Automatic Quick Change Purlin Roll Forming Machines For C And Z Purlin

Product Details:
Place of Origin: China
Brand Name: ST
Certification: ISO CE
Model Number: 100
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: contact me
Packaging Details: nude
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 sets per month
Detailed Product Description
Dimension(l*w*h): 9500mm*1550mm*1700mm Use: C And Z Purlin
Raw Material: Galvanized Steel After-sales Service Provided: Video Technical Support
Warranty: 24 Months Control System: Totally Automatic PLC Taiwan Delta
High Light:

automatic purlin roll forming machine

,

automatic c and z purlin machine

,

quick change cz purlin forming machine

  1. Automatic Quick Change Purlin Roll Forming Machines For C And Z Purlin



Automatic Quick Change Purlin Roll Forming Machines For C And Z Purlin



With the development of roll forming technology, automatic quick change roll forming machines for the production of C and Z purlins began to appear. According to our design of the roll forming machine, the automatic interchangeable purlin roll forming machine can also be called PLC automatic purlin roll forming machine, one roll forming machine can produce steel purlin, flange size and edge size.

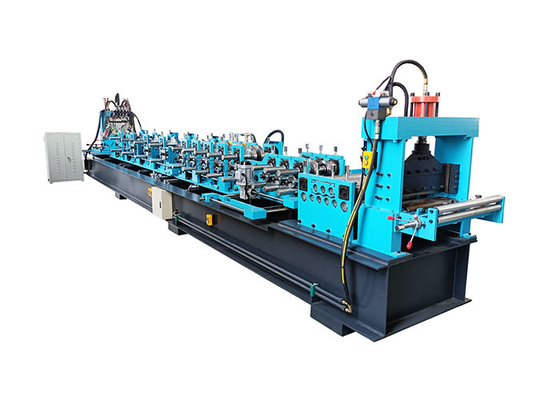

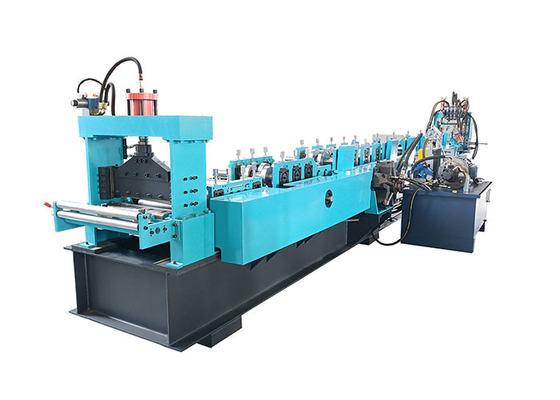

The C and Z purlin roll forming machine conbined with a manual decoiler and leveling system as a feeding device, a whole set of roll forming machine part, hydraulic punch and cutting system, an output table, a hydraulic pump and electric control cabinet.

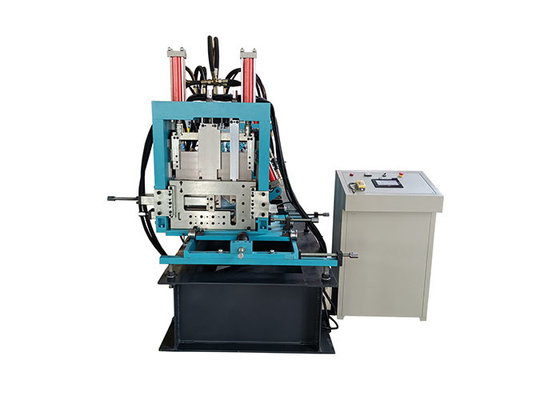

The cutter is a gantry type cutter, controlled by the encoder and PLC system, when the machine prduced the fixed length in the PLC, the cutter will start to cut the purlin.



  1. Automatic Quick Change Purlin Roll Forming Machines For C And Z Purlin Parameters





Item
Parameters
Coil Thickness(mm)
1.5~3
Max Speed(m/min)
30
Roll standard station (pcs)
18
Main Motor(KW)
22kw (Hydraulic Motor )
Main Shaft(mm)
80mm
Shaft materials
40Cr
Roller Materials
GCr15
Cutting Way
Hydraulic Cutting (7.5KW)
Cutting Blade Materials
Cr12MoV
Hole Punching
3 sets
Control System
PLC control (Xinjie)
Size Change
PLC control / Press Button
C Z Interchange
PLC control / Reverse roll





Standard Shape Profile ( Also can be customized)
C Purlin: A=80-300mm ; B=40-80mm ; C=10-20mm ; T=1.5-3mm
Z Purlin: A=120-300mm ; B=40-80mm ; C=10-20mm ; T=1.5-3mm

  1. Automatic Quick Change Purlin Roll Forming Machines For C And Z Purlin



Decoiler -- Feeding & Guiding - Leveling-- Hydraulic Cutting --Roll forming--- Product to Run Out Table



Packing Method



Main machine is packaged with plastic film

Transportation

All machines need one 40 feet container to hold



Payment Term



30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.

Delivery Time

Within 35 days after receiving deposit.



Warranty



Two years, and we will provide technical support for wholelife of the equipment.

If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.



Automatic Quick Change Purlin Roll Forming Machines For C And Z Purlin 0Automatic Quick Change Purlin Roll Forming Machines For C And Z Purlin 1Automatic Quick Change Purlin Roll Forming Machines For C And Z Purlin 2
