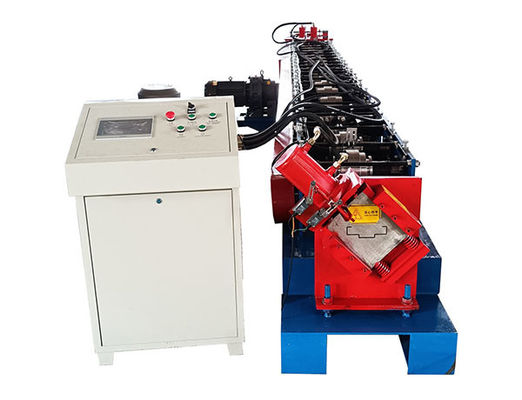

Guide Rail Steel Door Frame Roll Forming Machine Automatic

Guide Rail Steel Door Frame Roll Forming Machine Automatic

Guide Rail Steel Door Frame Roll Forming Machine Automatic
Guide Rail Steel Door Frame Roll Forming Machine Automatic
video play

Large Image :  Guide Rail Steel Door Frame Roll Forming Machine Automatic

Product Details:
Place of Origin: China
Brand Name: ST
Certification: ISO CE
Model Number: 100
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: contact me
Packaging Details: nude
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 sets per month
Detailed Product Description
Dimension(l*w*h): 9500mm*1550mm*1700mm Use: Door Frame
Raw Material: Galvanized Steel After-sales Service Provided: Video Technical Support
Warranty: 24 Months Control System: Totally Automatic PLC Taiwan Delta
High Light:

guide rail roll former making machine

,

steel door frame roll forming machine

,

automatic door frame forming machine

Guide Rail Roll Former Making Machine Steel Door Frame Roll Forming Machine



Guide Rail Roll Former Making Machine Steel Door Frame Roll Forming Machine



Metal steel sheet door frame roll forming machine is designed to roll form the galvanized steel to the door frame or window frame shape.
Normally the thickness of the door frame or window frame is from 0.5mm to 1.5mm.

Our door frame machine is widely used in the steel door or steel window manufacturing.



Guide Rail Roll Former Making Machine Steel Door Frame Roll Forming Machine Parameters



Specification

Main motor power 11kw
Hydraulic motor power 5.5kw
Hydraulic Pressure 10-12MPa
Voltage 380V/50HZ/3Phase
Control System PLC (Delta brand)
Feeding Material Galvanized steel
Feeding Thickness 0.5-1.5mm
Speed 15-30m/min
Roller station 14 rows
Shaft diameter 60mm
Shaft material 45# steel
Roller material 45# steel
Cutter material Cr12 quenched
Dimension 10500*1000*1200mm
Weight 5500kg





Guide Rail Roll Former Making Machine Steel Door Frame Roll Forming Machine process



The complete line includes decoiler, forming machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system to keep products accurate.



FAQ:
Q1. Can you manufacture the roll forming machine according to my profile drawing or picture of finished product ?
A: Yes. Our rich experienced technical team can draft the accurate profile drawing, provide the most suitable technical solution for your required roll forming machine.
Q2. How can we be assured that you will deliver us quality machine with spare parts ?
A: 1. Customers can come to our factory, or send the technical people to our factory for checking the quality.
2. We can send the technicians to the buyer's factory for the installation of the machine.
Q3. What's your payment terms and delivery time?
A: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable. After we get down payment, we will arrange production. About 45 workdays for delivery.
Q4. Do you have after-sales support?
A: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q5. Do you sell only standard machines?
A: No, most of our machines are customized according to customers specifications, also adopt top brand components.
Q6. What will you do if the machine is broken?
A: We provide 1 year free warranty and free technical support for the whole life of any machine. If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the roll forming machine.
Q7. Can you be responsible for transport?
A: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q8. How to visit your company?
A:1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2)Fly to Tianjin airport, By high speed train From Tianjin to Cangzhou Xi (0.5 hour).
3) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.



Guide Rail Steel Door Frame Roll Forming Machine Automatic 0Guide Rail Steel Door Frame Roll Forming Machine Automatic 1Guide Rail Steel Door Frame Roll Forming Machine Automatic 2
