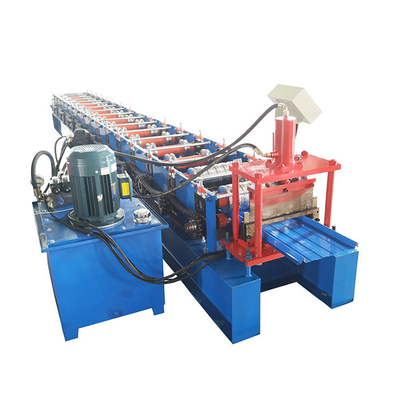

Galvanized Steel Metal Door Frame Roll Forming Machine With Cr12 Material Cutting Blade
Customized Galvanized Steel Door Frame Roll Forming Machine (Latest Design)
This machine is specifically engineered for galvanized steel door frame production, integrating advanced features to enhance efficiency and product quality:
- Hydraulic Driving System: Adopts a high-performance hydraulic driving system, enabling a working speed of up to 20 meters per minute—significantly boosting production efficiency compared to traditional mechanical driving.
- Single Hydraulic Pump Station: Equipped with one dedicated hydraulic pump station that delivers powerful and stable driving force, ensuring consistent operation of the punching, cutting, and forming processes.
- High-Durability Rollers: Rollers are made of Cr12 steel and undergo hard quenching treatment. This material and process combination enhances roller hardness, wear resistance, and service life, maintaining precise forming even during long-term high-speed operation.
Key Technical Parameters & Core Components
Technical Parameters
| Parameter Category |
Details |
| Production Capacity |
15-20 m/min |
| Power |
4+4KW |
| Voltage |
380V 50Hz 3phases |
| Dimension (L×W×H) |
6500*800*1500mm |
| Weight |
3.5 T |
| Suitable Materials |
Colored steel plate, galvanized board, aluminum plate |
| Raw Material Width |
333 mm |
| Number of Roller Rows |
18 rows |
| Roller Material |
High-grade 45# steel (surface chrome-plated for corrosion resistance) |
| Raw Material Thickness |
0.7-1.2 mm |
| Certification |
ISO |
| Machine Type |
Tile Cutting Machine (specialized for galvanized steel door frame forming) |
Core Machine Components
| No. |
Component Name |
Quantity |
Function Description |
| 1 |
Manual Uncoiler |
1 set |
Stably unrolls galvanized steel coils for continuous feeding |
| 2 |
Feeding & Leveling Device |
1 set |
Levels raw material sheets to eliminate wrinkles, ensuring uniform feeding into the forming system |
| 3 |
Roll Forming System |
1 set |
Shapes raw materials into galvanized steel door frame profiles via 18-row rollers for gradual, precise forming |
| 4 |
Hydraulic Punching & Cutting |
1 set |
Completes punching (as needed) and cuts finished door frames to set lengths, with Cr12 material cutting blade for sharp, clean cuts |
| 5 |
Product Support Frame |
1 set |
Supports finished door frames during discharge to prevent deformation |
| 6 |
PLC Control System |
1 set |
Centralizes control of all processes (speed, punching position, cutting length) for automated, stable operation |
Company Overview
Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional enterprise focusing on the design, development, and manufacturing of cold roll forming machines, with export capabilities. The company boasts:
- Professional Teams: High-quality professional teams and skilled talents, providing solid support for product R&D, production, and after-sales service.
- Strong Technical Strength: Independent and robust research and development capabilities, coupled with advanced production equipment, ensuring the innovation and reliability of products.
- Comprehensive Product Range: Specializes in manufacturing color steel forming machinery, C/Z purlin machines, glazed tile forming machines, steel structural floor panel roll forming machines, sandwich panel roll forming machines, highway guardrail forming machines, downspout forming machines, car panel roll forming machines, roll shutter door roll forming machines, sheet slitting equipment, and related accessories.
- Perfect After-Sales System: A well-established after-sales service system to address customer needs promptly and effectively.
Company Advantages
- Long-Term Export Experience: Has engaged in the export business of pressure roll forming machines since 2008, with in-depth understanding of international market demands and mature export service processes.
- Solution-Oriented Focus: Beyond being a machine supplier, the company positions itself as a roll forming solution provider—tailoring comprehensive solutions to meet customers' specific production needs rather than just selling standard equipment.
- Balanced Quality & Efficiency: Committed to offering competitive prices, high-quality products, and fast delivery, ensuring customers receive cost-effective solutions while meeting their production timelines.
FAQ
Q: What is the MOQ for this machine?
A: The MOQ for the galvanized steel door frame roll forming machine is one set.
Q: Can you design the machine according to my requirements?
A: Yes. We have a professional team of engineers capable of designing and producing the machine based on your specific needs. If you have existing drawings, we can also customize the machine according to your drawings.
Q: Are you a trading company or a factory? Can we visit your factory?
A: We have our own production line and factory. We warmly welcome you to visit our factory. Once you provide your schedule, our professional sales team will follow up and arrange the visit.
Q: What after-sales service do you provide?
A: We offer overseas engineer support to assist with machine installation and debugging. Additionally, we provide free replacement of defective parts within the 1-year warranty period (non-human damage).
Q: What payment terms do you accept?
A: We accept T/T and Western Union.
Q: What is the typical delivery time?
A: Normally, the delivery time is approximately 45 days. We will expedite production as much as possible to shorten the delivery cycle if needed.
