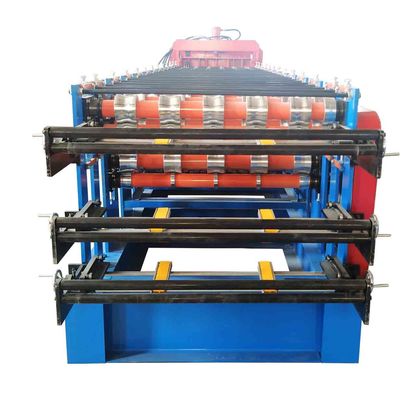

Steel Glazed Trapezoidal IBR Corrugated Roof Tile Three Deck Roll Forming Sheet Machine

Steel Glazed Trapezoidal IBR Corrugated Roof Tile Three Deck Roll Forming Sheet Machine
Steel Glazed Trapezoidal IBR Corrugated Roof Tile Three Deck Roll Forming Sheet Machine
video play

Large Image :  Steel Glazed Trapezoidal IBR Corrugated Roof Tile Three Deck Roll Forming Sheet Machine

Product Details:
Place of Origin: China
Brand Name: SHITONG
Certification: CE, ISO 9000
Model Number: 762-760-840
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact us for more
Packaging Details: The machine is covered with plastic film if in FCL shipping; or we will put the machines and part into wooden boxes in LCL shipping.
Delivery Time: 30 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: set 20 month
Detailed Product Description
Machine Size: 8.6*1.2*1.5m Machine Color: Blue And Orange
Material: Galvanized Coil Usage: Steel Roofing
Control System: PLC Control Cutting System: Hydraulic Cutting System
Condition: Brand New Voltage: 380V , 440V , 220V Or Customized
Cutting Blade: Cr12MoV Transmission Mode: By Chain

Steel Glazed Trapezoidal IBR Corrugated Roof Tile Three Deck Roll Forming Sheet Machine


1. Three layer roll forming machine introduction

Our machine is mainly producing steel roof/ wall sheet .The final products have three types,corrugated sheet and trapezoidal sheet and glazed tiles.As we know, steel roof/ wall sheet is widely used in large span factory building, warehouse, office buildings, villas, roof, cold storage, air purification room, stores, kiosks, and temporary housing.


2. Three layer roll forming machine for steel tile making parameters

No. Main parameter for Corrugated Sheet Making Machine
1 Suitable to process Galvanized/Aluminum/Color steel sheet
2 Width of plate 1250mm
3 Thickness of plate 0.3-0.8mm
4 Rollers High grade 45# steel, with hard chrome plating
5 Forming steps 16
6 Sprocket chain 1.5 inch
7 Pump station power 4kw
8 Shaft 75mm, high grade 45# steel, heat treatment
9 Hydraulic oil pump CB-E310
10 Weight About 5.0 tons
11 Productivity 8-12m/min
12 Cutting head Cr12 mould steel with quenched treatment
13 Control system TAIDA brand PLC control
14 Voltage 380V 3Phase 60Hz
15 Motor power 4kw
16 Dimension About 6.8m*1.5m*1.5m
17 Hydraulic pressure 10-12mpa
18 Index error of length ±1mm
19 The temperature range of working line -35-50°
Machine Components
No. Name QTY
1 Manual uncoiler 1 set
2 Feeding and leveling device 1 set
3 Roll forming system 1 set
4 Hydraulic punching and cutting 1 set
5 Product support frame 1 set
6 PLC Control System 1 set


3. roll forming machine company profiles

We are specialized in designing,manufacturing the roll forming machines e.g cable tray forming machine,supermarket rack forming machine,expressway guardrail forming machine,grain silo forming machine,solar strut forming machine etc. These products are used widely in the field of steel structure ,building construction,supermarkets,factory warehouses,schools roofing,grain silos etc . In addition we also can manufacture all types of steel coils slitting machine,coils cut to length machines and tube mills We are ready to establish the business relations with the overseas customers and we also believe" the opportunity here,here you are" Our commitment is high-quality and in-time service, our goal is customer satisfaction.



4. Payment terms

30% T/T as the deposit when contract signed, 70% balanced before shipping.
Equipment Use:Equipment of plate type is suitable for large factory,temporary housing,Outdoor steel structure roof panel,beautiful,Suitable for outdoor building,The plate for the lap type structure.
After-sales service and installation:Our factory with perfect after-sales service,And can according to user requirements design and manufacture of the special type,To the user guide at the same time, production, installation, debugging, maintenance.
Machine Features: Our sales of such type of tile press, by domestic and foreign customers consistent high praise, The equipment of exquisite workmanship, plate type standard, its biggest characteristic is suitable for site use, Good anticorrosive property, is the first choice for customers.


5. FAQ (about our roll forming machine)

Q1. What are the main key points for selecting right machines?

A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.
Good quality is for long-term business cooperation.



Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production
usage, machine speed, then machine specification will be some different.

Q3. What's your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for
competitive ocean freight.

Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.

Q5. How about the after-sale service?
A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if
parts still broken, we can send the new ones freely.

Q6. If I am in Beijing,Shanghai or Guangzhou,how to visit your company?
A6: 1) Beiing South Station to Cangzhou West Station (by fast train 1 hour).
2) Shanghai Hongqiao to Cangzhou West (4.5 hours)
3) Guangzhou Airport to Tianjin Airport, then Tianjin to Cangzhou West



6.Roll forming machine pictures:

Steel Glazed Trapezoidal IBR Corrugated Roof Tile Three Deck Roll Forming Sheet Machine 0Steel Glazed Trapezoidal IBR Corrugated Roof Tile Three Deck Roll Forming Sheet Machine 1Steel Glazed Trapezoidal IBR Corrugated Roof Tile Three Deck Roll Forming Sheet Machine 2
