Product Details:
Payment & Shipping Terms:
|
| Machine Size: | 8.6*1.2*1.5m | Machine Color: | Blue And Orange |
|---|---|---|---|
| Material: | Galvanized Coil | Usage: | Steel Roofing |
| Control System: | PLC Control | Cutting System: | Hydraulic Cutting System |
| Condition: | Brand New | Voltage: | 380V , 440V , 220V Or Customized |
| Cutting Blade: | Cr12MoV | Transmission Mode: | By Chain |

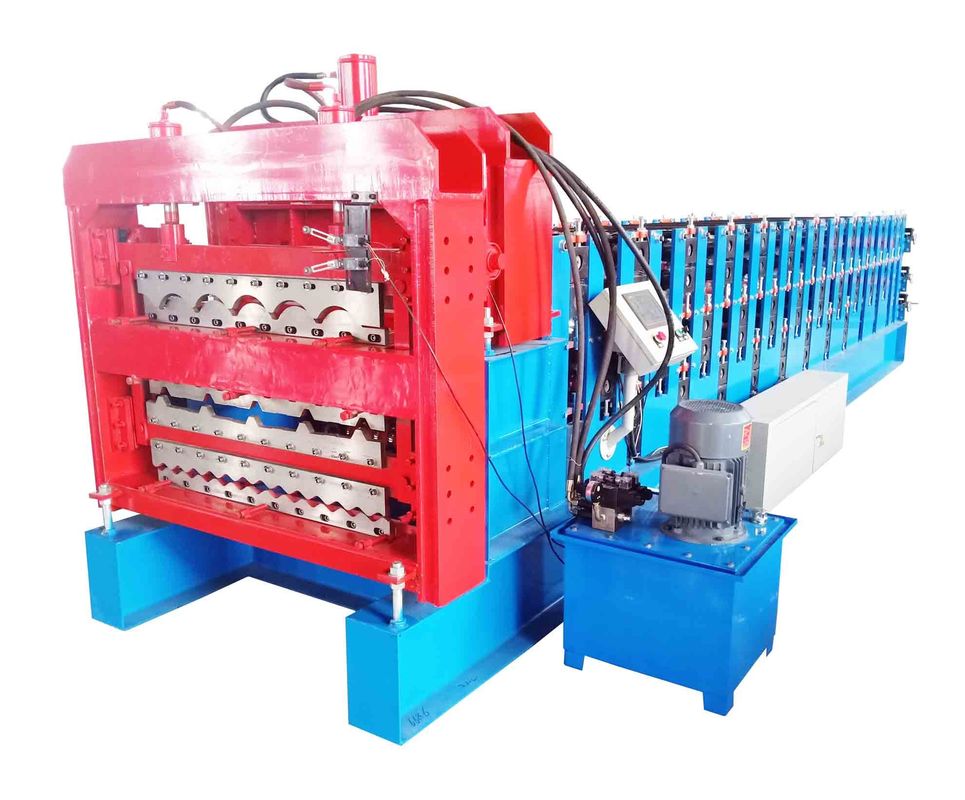

Steel Glazed Trapezoidal IBR Corrugated Roof Tile Three Deck Roll Forming Sheet Machine
1. Three layer roll forming machine introduction
Our machine is mainly producing steel roof/ wall sheet .The final products have three types,corrugated sheet and trapezoidal sheet and glazed tiles.As we know, steel roof/ wall sheet is widely used in large span factory building, warehouse, office buildings, villas, roof, cold storage, air purification room, stores, kiosks, and temporary housing.
2. Three layer roll forming machine for steel tile making parameters
| No. | Main parameter for Corrugated Sheet Making Machine | |
| 1 | Suitable to process | Galvanized/Aluminum/Color steel sheet |
| 2 | Width of plate | 1250mm |
| 3 | Thickness of plate | 0.3-0.8mm |
| 4 | Rollers | High grade 45# steel, with hard chrome plating |
| 5 | Forming steps | 16 |
| 6 | Sprocket chain | 1.5 inch |
| 7 | Pump station power | 4kw |
| 8 | Shaft | 75mm, high grade 45# steel, heat treatment |
| 9 | Hydraulic oil pump | CB-E310 |
| 10 | Weight | About 5.0 tons |
| 11 | Productivity | 8-12m/min |
| 12 | Cutting head | Cr12 mould steel with quenched treatment |
| 13 | Control system | TAIDA brand PLC control |
| 14 | Voltage | 380V 3Phase 60Hz |
| 15 | Motor power | 4kw |
| 16 | Dimension | About 6.8m*1.5m*1.5m |
| 17 | Hydraulic pressure | 10-12mpa |
| 18 | Index error of length | ±1mm |
| 19 | The temperature range of working line | -35-50° |
| Machine Components | ||
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
3. roll forming machine company profiles
4. Payment terms
30% T/T as the deposit when contract signed, 70% balanced before shipping.
Equipment Use:Equipment of plate type is suitable for large factory,temporary housing,Outdoor steel structure roof panel,beautiful,Suitable for outdoor building,The plate for the lap type structure.
After-sales service and installation:Our factory with perfect after-sales service,And can according to user requirements design and manufacture of the special type,To the user guide at the same time, production, installation, debugging, maintenance.
Machine Features: Our sales of such type of tile press, by domestic and foreign customers consistent high praise, The equipment of exquisite workmanship, plate type standard, its biggest characteristic is suitable for site use, Good anticorrosive property, is the first choice for customers.
5. FAQ (about our roll forming machine)
Q1. What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.
Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production
usage, machine speed, then machine specification will be some different.
Q3. What's your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for
competitive ocean freight.
Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.
Q5. How about the after-sale service?
A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if
parts still broken, we can send the new ones freely.
Q6. If I am in Beijing,Shanghai or Guangzhou,how to visit your company?
A6: 1) Beiing South Station to Cangzhou West Station (by fast train 1 hour).
2) Shanghai Hongqiao to Cangzhou West (4.5 hours)
3) Guangzhou Airport to Tianjin Airport, then Tianjin to Cangzhou West

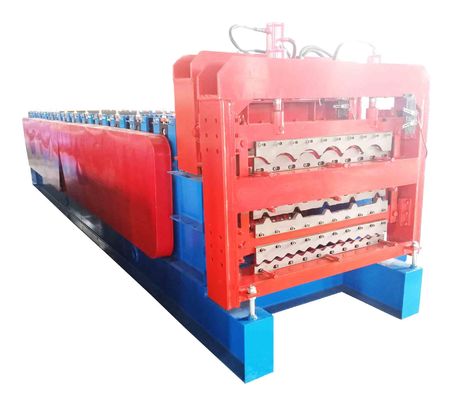

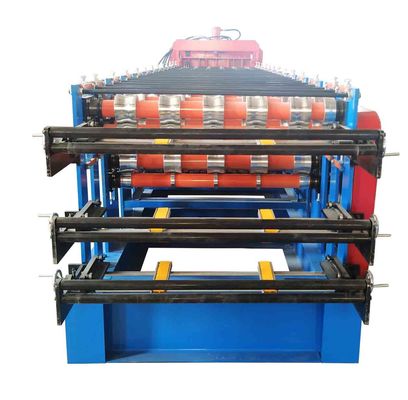

6.Roll forming machine pictures:
