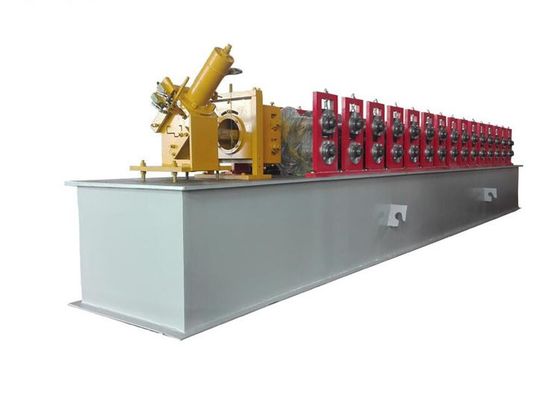

Automatic 0.7mm Door Frame Roll Forming Machine For Galvanized Steel Plate Tile

Automatic 0.7mm Door Frame Roll Forming Machine For Galvanized Steel Plate Tile

Automatic 0.7mm Door Frame Roll Forming Machine For Galvanized Steel Plate Tile
Automatic 0.7mm Door Frame Roll Forming Machine For Galvanized Steel Plate Tile
video play

Large Image :  Automatic 0.7mm Door Frame Roll Forming Machine For Galvanized Steel Plate Tile

Product Details:
Place of Origin: Cangzhou, China
Brand Name: SHITONG
Certification: ISO,CE
Model Number: D150
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact us to get the best price
Packaging Details: The machine is covered with plastic film if in FCL shipping; or we will put the machines and part into wooden boxes in LCL shipping.
Delivery Time: 40 - 60 days
Payment Terms: T/T, Western Union
Supply Ability: 20 sets/month
Detailed Product Description
Machine Size:: 5.5*1.4*1.3m Thickness Of Matrial: 0.7-1.2 Mm
Forming Steps: 16 Steps Middle Plate: 16mm Steel Board
Cutter Material: Cr12 Usage: Door Frame
Application: Door Frame Production Power: 380V 50Hz 3Phase Or Customized
Weight: 3.5T
High Light:

0.7mm door frame roll forming machine

,

galvanized door frame roll forming machine

,

0.7mm door frame making machine

Automatic Galvanized Steel Plate Tile Roller Shutter Door Frame Cold Roll Forming Making Machine



1. Steel door frame roll forming machine by customized

We can provide door frame equipment with accurate punching and beautiful molding to meet the customer's need for punching during the construction process,and solve the problem of the customer's appearance and surface appearance during use.And we can provide customized steel door frame equipment solutions used in the installation of interior doors in civil buildings.



2. Steel door frame roll forming machine by customized parameters

No. Type Specification







1





Row Material

Type Colored steel plate, Galvanized board, Aluminum plate ect
Feeding width 122mm or According to client’s requirement
Thickness 0.7-0.8mm

















2

















Main Body

Forming roller station 12 Stations
Straight roller station 3 Stations ( Up layer 2 rollers , down layer 3 rollers )
Diameter of shaft 40mm
Shaft material High grade 45# steel
Roller material High grade 45# steel , hard treatment and polishing ( plated chrome on surface )
Main body frame Whole set of square pipe
Frame thickenss 14 mm
Working speed 8-15 m/min
Size (L*W*H) About 6800*850*1310mm
Weight About 2.5 tons







3







Power

Motor power 3 kw
Hydraulic power 3 kw
Voltage 380V 50Hz 3phases or Customerization
Drving Way By Gear







4







PLC Control System

Language English and Chinese
Brand Of PLC Delta brand ( Touch Screen )
Operation Manual and Automatic ( Two Type )
Transducer Delta brand





5





Cutting Device

Cutting Type Hydraulic Cutting
Blade of Cutting Cr12 , quenching treatment
Cutting Tolerance ± 1mm
Machine Components
No. Name QTY
1 Manual uncoiler 1 set
2 Feeding and leveling device 1 set
3 Roll forming system 1 set
4 Hydraulic punching and cutting 1 set
5 Product support frame 1 set
6 PLC Control System 1 set



3. After-sales service

In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.

Installation:

(1) If installation is needed, Liming (the seller) will dispatch technician to the buyer’s factory abroad to assist regulating the machine with charge free. The buyer should assist Liming to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.

(2) If installation is needed, the buyer shall make the following preparation before arrival of technicians.

a) Position the machine in the buyer’s factory.

b) Prepare necessary electric wiring.

c) Prepare material of trial running.

d) Provide labors for assistance and installation during installation.

e) If possible, One Chinese-speaking interpreter so that the communication between the buyer and seller’s technician will go smoothly.


4. FAQ

4.1. Does one machine can only produce one style panel profile?

Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.



4.2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need

your machines running in order to keep your business running.



4.3. How to visit your company?

a.Fly to Beijing airport: By high speed train From Beijing Nan to CangZhou Xi (1 hour), then we can pick

up you.

b.Fly to Shanghai Airport: By high speed train From Shanghai HongQiao to Cangzhou Xi(4.5 hours), then

we can pick up you.



4.4. What can you do if the machine broken?

Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.if after warranty period,we can

through negotiation for to solve the problems,and we supply the technical support for the whole life of the

equipment.



4.5. Can you be responsible for transport?

Yes,please tell me the destination port or address.we have rich experience in transport.



5. Company strength introduction

Our technical force is abundant. Production equipment is advanced, detection means is complete. We specialize in the professional production of various types of roll forming machines, and the development and production of fully automatic intelligent control roll forming machines of C-shaped steel and dust collector anode plates, and other equipment.

Our factory has highly qualified and experienced professionals and highly skilled construction workers to serve you. Our factory can design and produce various kinds of special-shaped cold-formed molding equipment for different needs of the users.


6. Roll forming machine pictures

Automatic 0.7mm Door Frame Roll Forming Machine For Galvanized Steel Plate Tile 0Automatic 0.7mm Door Frame Roll Forming Machine For Galvanized Steel Plate Tile 1Automatic 0.7mm Door Frame Roll Forming Machine For Galvanized Steel Plate Tile 2
