Trapezoidal Chain Drive Tile Roll Forming Machine Ibr Roof Wall Panel Production

Trapezoidal Chain Drive Tile Roll Forming Machine Ibr Roof Wall Panel Production

Trapezoidal Chain Drive Tile Roll Forming Machine Ibr Roof Wall Panel Production
Trapezoidal Chain Drive Tile Roll Forming Machine Ibr Roof Wall Panel Production
video play

Large Image :  Trapezoidal Chain Drive Tile Roll Forming Machine Ibr Roof Wall Panel Production

Product Details:
Place of Origin: BOTOU, CHINA
Brand Name: SHITONG MACHINERY
Certification: CE , ISO9001
Model Number: ST765
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact us for more
Packaging Details: Nude packing in the container,fixed well with steel rope. Control cabinet, pump station and all the spare parts with waterproof in the wooden box.
Delivery Time: 40 working days
Payment Terms: T/T, Western Union
Supply Ability: 15 set per month
Detailed Product Description
Working Speed: 15-20m/min Shaft Material: High Grade 45# Steel
Shaft Diameter: 70 Mm Drive Motor: Hydraulic Motor
PLC System: Delta Or Saj Brand Usage: Roofing Tile Production
Machine Frame: Welded By 350H Steel Cutting Mode: Hydraulic Cutting
Driven Type: Drive By Chains Feeding Material: Steel Coils
High Light:

chain drive tile roll forming machine

,

ibr trapezoidal tile roll forming machine

,

hydraulic motor roof sheet forming machine

Trapezoidal Tile Sheet Metal Roll Forming Machine For IBR Roof Wall Panel Production



1. Brief of the machine

The complete metal roof roll forming machine , includes manual decoiler, main body of roll forming machine, hydraulic cutting system, PLC control system and discharge table. The users can set order as per their requirement to produce the special pieces and length products. This machine line can work automatically by PLC control system. It is easy to operate and running stably.

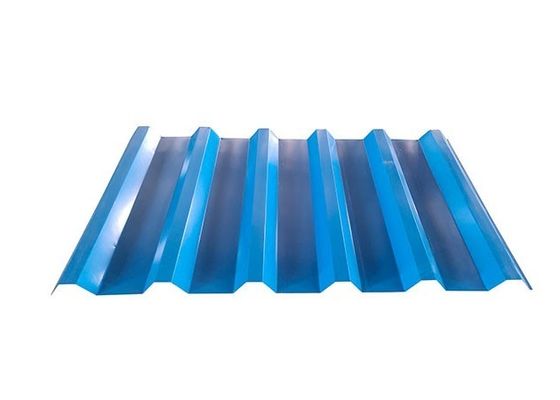

 Our roll forming machine can produce different kinds of steel panel tiles for roof and wall. The tiles is mainly used in temporary building site, steel constructure workshop,and other public building with fast building speed. It has advantage of pretty appearance, durable using and so on.

The metal sheet cold roll forming of us has characters of high speed ,high production, good performance, low labor and save cost. All the above characters are the best selections for producing the metal sheet cold roll form products.



2. Features of the roll forming machine production line

a) The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connecter is screw which make the machine flexible and stronger.
b) All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
c) We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
d) It is very easy to install the equipment and suitable for producing in the factory.
e) Low noise with high efficiency



3. Specifications of the roll forming production line

1.Weight capacity of decoiler 4T
2.Appearance Size(L*W*H) 6500*1500*1500
3.Raw material /feeding sheet material Colored steel & galvanized steel
4.Roller material 45used metal roof roll forming machine high grade steel
5.Shaft material 45used metal roof roll forming machine high grade steel
6.Kind of drive Chain drive
7.Cutting system Automatic hydyaulic cutting
8.Cutting blade material Cr 12 high grade steel
9.Frame material 300 H-high grade steel
10.Control system Totally automatic PLC control system
11.Main power 4 kw
12.Roller stations 13 rows
13.Speed of production 8-12m/min
14.Thickness of colored steel 0.2-0.8mm
15.Feeding width 1000mm
16.Effectiv width 840/900mm
15.Frame material 300 H-steel



4. Service aim of our company

​"The quality first, The prestige first" is the service aim of our company, we wish to customize the best machines for customers. So all stuff from SHITONG welcome anyone who are interested in our machines come to investigate and talk about cooperation.

SHITONG not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.


5. FAQ

1):How to maintenance?
A:If using frequently,best coating lubricant on the chain and two ends of the shaft every month, replace the hydraulic oil every 1-2 years.



2):What can you do if the machine broken?
A:Our machine's warranty period is 1 year,

if the broken parts can't repair,we can free send the new parts replace the broken parts to you except the solenoid valve,the solenoid valve you must pay the express cost yourself.

if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.



3):Can you make the machine according to my design or photo type?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.



4):Do you have any other service?

A: We can manufacture, design, installation and debug various roll forming machines including standard and customized machines.


6. Machine pictures for your reference
Trapezoidal Chain Drive Tile Roll Forming Machine Ibr Roof Wall Panel Production 0Trapezoidal Chain Drive Tile Roll Forming Machine Ibr Roof Wall Panel Production 1Trapezoidal Chain Drive Tile Roll Forming Machine Ibr Roof Wall Panel Production 2
