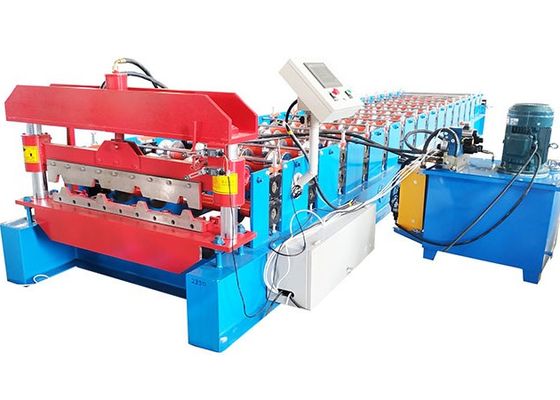

Color Steel Servo Motor Metal Roof Making Machine For Building Material Construction

Color Steel Servo Motor Metal Roof Making Machine For Building Material Construction

Color Steel Servo Motor Metal Roof Making Machine For Building Material Construction
Color Steel Servo Motor Metal Roof Making Machine For Building Material Construction
video play

Large Image :  Color Steel Servo Motor Metal Roof Making Machine For Building Material Construction

Product Details:
Place of Origin: BOTOU, CHINA
Brand Name: SHITONG MACHINERY
Certification: CE , ISO9001
Model Number: ST750
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact us for more
Packaging Details: Nude packing in the container,fixed well with steel rope. Control cabinet, pump station and all the spare parts with waterproof in the wooden box.
Delivery Time: 35 working days
Payment Terms: T/T, Western Union
Supply Ability: 15 set per month
Detailed Product Description
Working Speed: 15-20m/min Shaft Material: High Grade 45# Steel
Shaft Diameter: 70 Mm Drive Motor: Servo Motor
PLC System: Delta Brand Usage: Roofing Tile Production
Machine Frame: Welded By 350H Steel Cutting Mode: Hydraulic Cutting
Driven Type: Drive By Chains Feeding Material: Steel Coils
High Light:

servo motor metal roof making machine

,

building material metal roof making machine

,

servo motor metal sheet forming machine

Color Steel Roofing Sheet Metal Roll Forming Machine For Building Material Construction



1. Features of the machine

The roll forming line has high strength with big wave length. It adheres well to concrete. Used on high building, it not only saves steel mold plate, but also reduces the weight of storey. With the same bearing capacity, it economized steel and cuts down investment accordingly.

We can also supply the customized machines.

Applications of roll forming line:

The finished products are widely used in floor flat, after make embossing of the sheet, it will increase the strength between the steel and concrete, thereby increasing the floor of the fastness.






2. Specifications of the roll forming production line

No. Item Specification
1 Can Formed Material GI,AI
2 Equipment operation Automatic
3 Voltage 380V 60Hz 3Phase or as your requirement
4 Thickness of sheet (mm) 0.3-0.7mm
5 Material width(mm) As your requirement
6 Cover Width of the sheet after formed as your drawing
7 The size of the roll forming machine 5500mmx1200mmx1400mm
8 Speed 15-20m/min
9 Diameter of shaft 70mm
10 Weight of the Machine 3500KGS
11 Material of rollers Cr12 steel quenched and chromed
12 Motor brand Siemens or Guomao
13 PLC Siemens or Delta or Mitsubushi
14 Total power (kw) 8kw
15 Power of hydraulic system 4kw
16 Power of main molding core 4kw
17 Transmission Chain with gears


3. Features of the roll forming machine production line

a) The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connecter is screw which make the machine flexible and stronger.
b) All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
c) We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
d) It is very easy to install the equipment and suitable for producing in the factory.
e) Low noise with high efficiency



4. Components of the roll forming machine

Machine Components
No. Name QTY
1 Manual uncoiler 1 set
2 Feeding and leveling device 1 set
3 Roll forming system 1 set
4 Hydraulic pressing and cutting 1 set
5 Product support frame 1 set
6 PLC Control System 1 set


5. FAQ

Q1, If our country's voltage is different from yours, how to solve that?
A1, The usual voltage is 380v,220v,415v. If yours are not one of them, we will design the electric motor to suit your voltage.
Q2, We bought your roll forming machine line, but we couldn't install and debug it?
A2, Don't worry about that, when finished the machine, we will send you the manual book which shows you how to use the machine; if you still don't know, we can record a video to teach you how to operate the machine.
Q3, About the after service, if the machine has problem out of guarantee?
A3, All the machines are one guaranteed, life maintenance. It means if you order our machine, you will be our customer for lifetime, you can ask us anytime about the machine issues.


6. Machine pictures for your reference
Color Steel Servo Motor Metal Roof Making Machine For Building Material Construction 0Color Steel Servo Motor Metal Roof Making Machine For Building Material Construction 1Color Steel Servo Motor Metal Roof Making Machine For Building Material Construction 2
