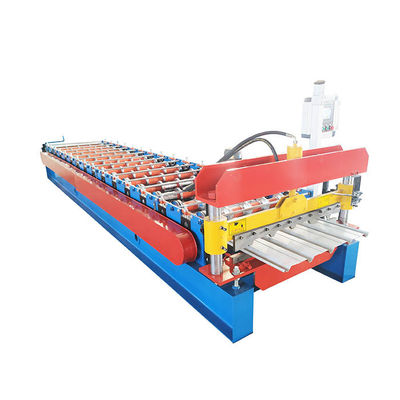

PLC Color Steel Sheet 25m/Min Metal Forming Machines

PLC Color Steel Sheet 25m/Min Metal Forming Machines
PLC Color Steel Sheet 25m/Min Metal Forming Machines PLC Color Steel Sheet 25m/Min Metal Forming Machines PLC Color Steel Sheet 25m/Min Metal Forming Machines

Large Image :  PLC Color Steel Sheet 25m/Min Metal Forming Machines

Product Details:
Place of Origin: China
Brand Name: ST
Certification: ISO CE
Model Number: 1000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: contact us
Packaging Details: nude
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 sets per month
Detailed Product Description
Warranty: 2 Years Weight: 4 Tons
Voltage: 220/380/415/420/440V Condition: New
Color: Blue Or As Your Request Dimension(l*w*h): 6*1.5*1.5 M
Speed: 10-25m/min Color: Green
Power: 4Kw Control System: PLC
Highlight:

25m/min sheet forming machines

,

25m/min metal forming machines

,

PLC metal forming machines

color steel roof panel Sheet Metal Forming Machines support customization



Machine Application

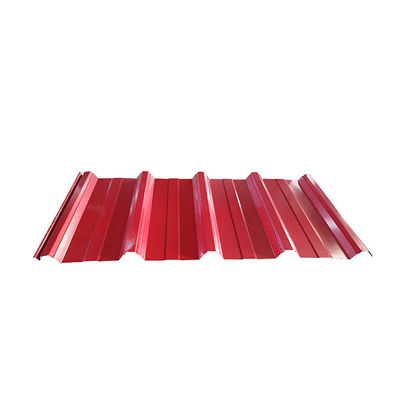

Our Galvanized Aluminium IBR Roof Sheet Roll Forming Making Machine can produce various of steel roof and wall panel, gutter system, shutter door etc. It is a new building material, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

Main Advantages

1) Young factory with advanced technology , and experienced Engineer , professional foreign trade team .

2) Standard design for your choose from , custom design also acceptable .

3) Adopt updated design and structure , making machine durable and better than always .

4) Short delivery time , free trainning , free technical support for whole life .

5) Futher research for local market , help client grow up and development .



Machine Parameters

No Item Parameter
01 Material feeding width 1000mm
02 Material thickness 0.3~0.8 mm
03 Uncoiler Manual Uncoiler
04 Loading weight 5 ton
05 Forming speed 20-25 m/min
06 Forming Steps 13 stations
07 Shafts materials 45# high quality steel
08 Shafts diameter 70 mm
09 Roller materials 45# high quality steel, hard chrome coated 0.05mm
10 Transmission Chains-sprockets
11 Main motor power 4 kw
12 Cutting blade Cr12 with quenched treatment 60-62
13 Hydraulic power 4 kw
14 This machine will automatically measure and cut the length and quantity as per clients set on the PLC touch screen
15 Length cut Accuracy ±1mm
16 PLC control system Delta
17 Frequency converter TAIAN
18 Screen TouchWin
19 Voltage 380V/50HZ/3Phase
20 Total weight Approx 4 tons
21 Overall dimensions

6500x1500x1500mm





PACKAGE:

LCL Loading Packaging: Steel pallet and plywood case.

——FCL Loading Packaging: Steel pallet with plastic film.



1. Q: How to visit our company?

A: Fly to Beijing Airport: Take an express train from Beijing South Railway Station to Cangzhou West Railway Station (1 hour), and then we can pick you up to the factory (40 minutes).

2. Q: If I want to customize the machine, what should I provide?
Answer: You need to provide outline drawing, material, thickness, voltage and special requirements.

3. Q: What is the warranty?

Answer: Within 12 mouths, all technicians are available to serve you at any time.

4. Q: What should I do if the machine breaks down?
A: The warranty period of our machine is 12 months. If the damaged parts cannot be repaired, we will provide new parts to replace the damaged parts for free, but if after the warranty period, you need to pay the express delivery fee. We can negotiate to solve the problem and provide technical support for the entire service life of the equipment.

5. Question: What should we do if we need technicians to go to the workshop for debugging and teaching?
Answer: We send technicians to your country to repair the machine.
The buyer should bear the expenses including: visa, round-trip air ticket and appropriate accommodation, and the buyer should pay 100USD/day.
