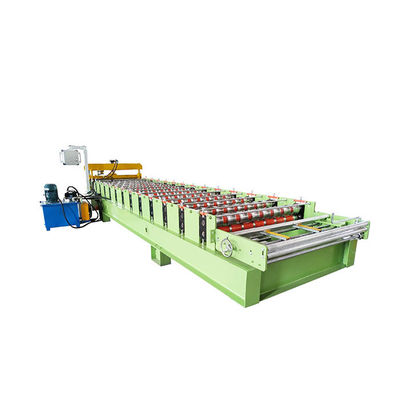

4Kw PLC 20m/Min Metal Roof Forming Machine

4Kw PLC 20m/Min Metal Roof Forming Machine
4Kw PLC 20m/Min Metal Roof Forming Machine 4Kw PLC 20m/Min Metal Roof Forming Machine 4Kw PLC 20m/Min Metal Roof Forming Machine

Large Image :  4Kw PLC 20m/Min Metal Roof Forming Machine

Product Details:
Place of Origin: China
Brand Name: ST
Certification: ISO CE
Model Number: 1000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: contact us
Packaging Details: nude
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 sets per month
Detailed Product Description
Warranty: 2 Years Weight: 4 Tons
Voltage: 220/380/415/420/440V Condition: New
Color: Blue Or As Your Request Dimension(l*w*h): 6*1.5*1.5 M
Speed: 10-25m/min Color: Green
Power: 4Kw Control System: PLC
High Light:

4kw metal roof forming machine

,

plc metal roof forming machine

,

20m/min metal roof forming machine

 IBR color steel roof panel Sheet Metal Roll Forming Machines



Machine Application



Our Galvanized Aluminium IBR Roof Sheet Roll Forming Making Machine can produce various of steel roof and wall panel, gutter system, shutter door etc. It is a new building material, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

Main Advantages

1) Young factory with advanced technology , and experienced Engineer , professional foreign trade team .

2) Standard design for your choose from , custom design also acceptable .

3) Adopt updated design and structure , making machine durable and better than always .

4) Short delivery time , free trainning , free technical support for whole life .

5) Futher research for local market , help client grow up and development .



Machine Parameters

No Item Parameter
01 Material feeding width 1250 mm
02 Material thickness 0.3~0.8 mm
03 Uncoiler Manual Uncoiler
04 Loading weight 5 ton
05 Forming speed 20-25m/min
06 Forming Steps 13 stations
07 Shafts materials 45# high quality steel
08 Shafts diameter 70 mm
09 Roller materials 45# high quality steel, hard chrome coated 0.05mm
10 Transmission Chains-sprockets
11 Main motor power 4 kw
12 Cutting blade Cr12 with quenched treatment 60-62
13 Hydraulic power 4 kw
14 This machine will automatically measure and cut the length and quantity as per clients set on the PLC touch screen
15 Length cut Accuracy ±1mm
16 PLC control system Delta
17 Frequency converter TAIAN
18 Screen TouchWin
19 Voltage 380V/50HZ/3Phase
20 Total weight Approx 4 tons
21 Overall dimensions

6500x1500x1500mm





PACKAGE:

LCL Loading Packaging: Steel pallet and plywood case.

——FCL Loading Packaging: Steel pallet with plastic film.

——Shipping: by sea

FAQ

-1. Bare, made of waterproof cloth and building blocks. The imported computer control system is equipped with waterproof cloth and cardboard.
-2. The production line is maintained free of charge for 18 months. When using the machine in China, we will install and debug the machine free of charge; when using it abroad, we will send professional technicians to debug it. All expenses should be borne by technicians traveling abroad.
-3. All parts in the roll forming machine can be maintained free of charge. If the company bears the cost of replacing damaged parts (such as new parts costs and courier costs) within 18 months, the company can maintain free of charge. For more than a month, we will also be responsible for repairing damaged parts free of charge, but if you want to send out new parts, the buyer needs to bear the courier fee.
-4. When transporting the molding machine, we will also send you a set of CDs and specifications (in Chinese and English) together with the machine, they can teach you how to operate the machine.

- Collect the feedback for the machine working
