Product Details:
Payment & Shipping Terms:
|
| Certification: | CE/ISO9001 | Use: | Roof And Wall |
|---|---|---|---|
| Voltage: | 380V 50Hz 3phases | Motor Brand: | Lichao, Shanghai |
| Production Capacity: | 8-12m/min | Driving Method: | Electrical Motor |
| Cutting Blade Material: | Cr 12 High Grade Steel | Control System: | PLC Control System |
| Color: | Blue | Power: | 4KW |
| High Light: | plc sheet metal roll forming machines,8m/min sheet metal roll forming machines,8m/min sheet metal forming machine |
||

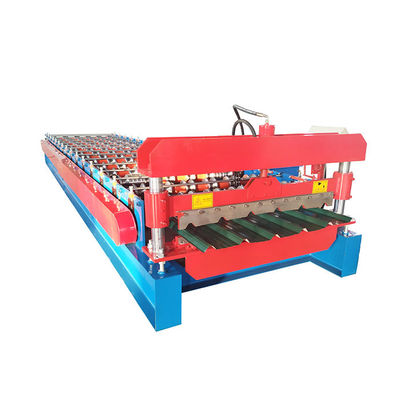

Blue steel tile type and roof panel layer rolling making forming machine
1. Instruction of the roll forming machine production line
This double layer corrugated and glazed cold roof panel metal sheet roll forming machine is widely used in many kinds of industrial factory, workshop, civilian buildingsand so on , It has advantage of pretty appearance, durable using lower cost,high efficiency,reliable working and so on. - each layer has the standalone feeding table, the width is fixed by screw as customer's drawing.
| Hydraulic decoiler ( 5 Tons ) | 1 unit |
| Main Roll Forming Machine | 1 unit |
| Cutting Device | 1 unit |
| Electrical System with PLC Control | 1 unit |
| Hydraulic station | 2 unit |
| Auto stacker | 1 unit |
2. The roll forming machine parameters
| no | item | specifacation |
| 1 | Decoiler | 5-6tons |
| 2 | Formed Material |
PPGI,GI,AI |
| 3 | Equipment operation | Automatic |
| 4 | Voltage | 380V 60Hz 3Phase or as your requirement |
| 5 | Thickness of sheet | 0.3mm-0.8mm |
| 6 | The size of the roll forming machine | 6500*1300*1100 |
| 7 | Speed | 8-15/min |
| 8 | Diameter of shaft | 70-80mm |
| 9 | Material of rollers | 45# Forged Steel |
| 10 | Material of shaft | High grade 45# steel |
| 11 | Total power (kw) | 5.5KW |
| 12 | PLC | delta |
| 13 | cutting system | Hydraulic cutter |
| 14 | Driving way | Chain transmission |
SHITONG specializes in producing and designing each kind of roll forming machine such as roll forming machines for metal roofing tiles, wall panels. While consummating the old model, with the continuous efforts of our scientific researchers, our company developed one after another of Automatic Cutting and Punching C-type Steel Roll Forming Machine, Automatic Cutting and Punching Z-type roll forming machine, the production line of Glazed Tile Roll Forming Machine, Automatic Panel Machine, Guardrail Forming Machine, Shutter Door Forming Machine, which have the advanced technical level.
4. Our company history
- We have passed 15 years in the field of cold roll forming machines, and we are specially in allotypic metal material roll forming machines, we already export machines more then 70 countries over the world, like Africa(Nigeria, South Africa, Morocco, Algeria, Zambia etc), Europe(Kosovo, Slovenia, Spanish, Romania, etc ), South America( Brazil, Mexico, Uruguay, Chile, Paraguay, Peru, Bolivia etc.)
5. Roll forming machine pictures:
FAQ
1. Q: Are you a manufacturer?
A: Yes, we are manufacturing
2. Q: What should I do if I want to order my machine?
Answer: If so, please send me your design drawings.
Or tell me your design ideas. I arranged for my engineer to draw it for your confirmation.
3. Q: What machine details should you get from me.
A: I will confirm all the details with you, such as the voltage in your city.
4. Question: I am a newbie in this field. How can I understand this machine well
Answer: Please contact me, I assure you that you will become professional after getting your help from me. it is true
5. Q: I have received a lot of quotations, and the range of quotations is very large. How should I choose?
Answer: I have many simple ways to solve it. Fox example, I can teach you how to find traders. please contact me. Contact me for free.
6. Q: Can you give me a suggestion for ordering the machine?
Answer: No problem. When you see a beautiful picture of a machine or factory, please don't believe your eyes. You will encounter more when contacting you.
7. Q: I don’t have whatsapp and skype, how can I contact you?
Answer: Please give me an inquiry at the end of this page. Leave your contact information to me. I will contact you. This is free.
8. Q: What do you think is the most important for the roll forming machine
A painting ! Painting! painting
9. Q: If I want, can you use other brands of spare parts for me?
Answer: If you want to pay, no problem.
