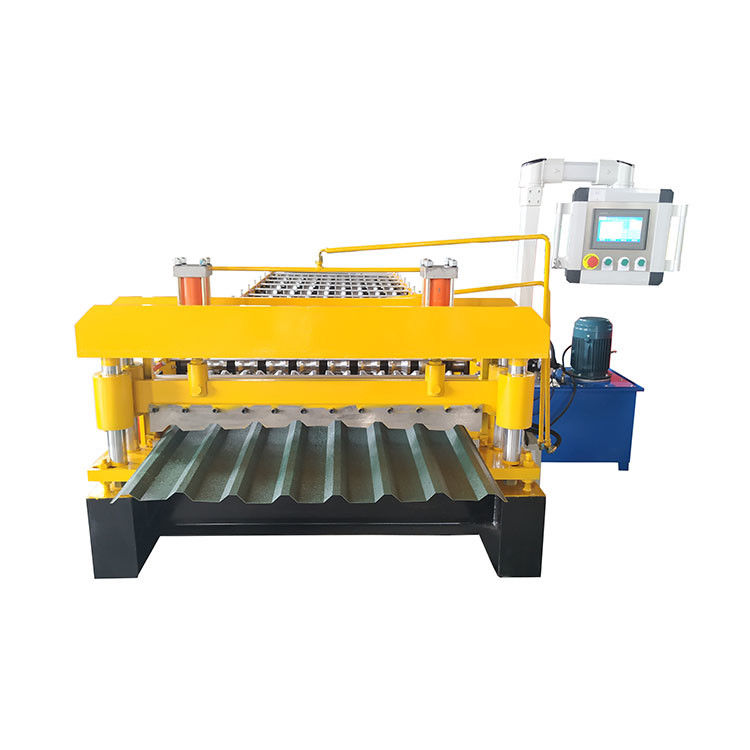

Galvanized Coil 0.8mm Sheet Metal Roll Forming Machines 20m/Min

Galvanized Coil 0.8mm Sheet Metal Roll Forming Machines 20m/Min
Galvanized Coil 0.8mm Sheet Metal Roll Forming Machines 20m/Min Galvanized Coil 0.8mm Sheet Metal Roll Forming Machines 20m/Min

Large Image :  Galvanized Coil 0.8mm Sheet Metal Roll Forming Machines 20m/Min

Product Details:
Place of Origin: Cangzhou, China
Brand Name: SHITONG
Certification: ISO,CE
Model Number: 20-200-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact us get the best price
Packaging Details: Loading container
Delivery Time: 30days
Payment Terms: L/C,T/T
Supply Ability: 20sets/month
Detailed Product Description
Name: Sheet Metal Roll Forming Machines Machine Color:: Blue And Orange
Material:: Galvanized Coil Usage:: Roofing Sheet Making
Machine Power: Electric And Hydraulic Voltage: 380V 50Hz 3Phase
Color: Yellow Thickness: 0.3-0.8mm
Speed: 20-25m/min Power: 4Kw
Highlight:

0.8mm sheet metal roll forming machines

,

20m/min sheet metal roll forming machines

,

20m/min profile roll forming machine

Customized profile design sheet matal roll forming machine for steel sheet forming


1. Customized profile design sheet matal roll forming machine for steel sheet forming
---- One machine can produce one profile design, the design according to customer's requirements.
---- Flat sheet after many different roller can be the right profile you need.
---- High efficiency help customer save more time cost.
---- Machine suitable for custraction company or roofing sheet retail traders.



2. Customized profile design sheet matal roll forming machine for steel sheet forming parameters

Raw material
material PPGI, PPGL, GI, Steel, Aluiminum
thickness of coil sheet 0.3 to 0.8 mm
material expand width 914mm/1000mm/1200mm/1220mm/1250mm
Efficiency width 695mm/750mm/1000mm/1050mm
Machine details
roller material high grade NO. 45 forged steel with 0.05mm hard chrome plating
shaft material high grade NO. 45 carbon wrought steel
cutting blade Cr12 mould steel with quenched treatment
diameter of shaft 70mm
main frame 300-400mm H steel
forming steps 15 stations
productivity 20-25m/min
hydraulic station power 4 KW
hydraulic pressure 10-12MPa
appearance size 6700mm*1500mm*1500mm
hydraulic oil 40# hydraulic oil
Electric tension 380V 50 Hz 3 Phase or as your requirement
Cut Mode Hydraulic forming after cutting off
Cutter materia Cr12 Heat Treatment
Electronic control system PLC, Touch Screen, Encoding counter
Color Blue, green or yellow or as your requirement
Rolling material 45# steel,roller surfaces polishing, hard plating
Service life 10 years



Machine Components
No. Name QTY
1 Manual uncoiler 1 set
2 Feeding and leveling device 1 set
3 Roll forming system 1 set
4 Hydraulic punching and cutting 1 set
5 Product support frame 1 set
6 PLC Control System 1 set



3. Shitong cold roll forming machine company profiles


Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.


4. FAQ (about our roll forming machine)


1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.



2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We needyour machines running in order to keep your business running.



3. How to visit your company?
A. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
B. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi (4.5 hours), then we can pick up you.



4. What can you do if the machine broken?
Our machine's warranty period is 12months, if the broken parts can't repair, we can send the new parts replace the broken parts freell, but you need pay the express cost yourself.if after warranty period, we can through negotiationfor to solve the problems, and we supply the technical support for the whole life of the equipment.



5. You are Trade Company or factory?
We are trade company but we also have own factories. Building Trade Company is just for exporting various types of cold roll forming machines.



6. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.

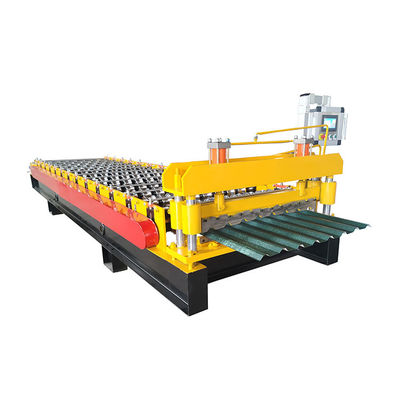

5. Roll forming machine pictures:
Galvanized Coil 0.8mm Sheet Metal Roll Forming Machines 20m/Min 0
