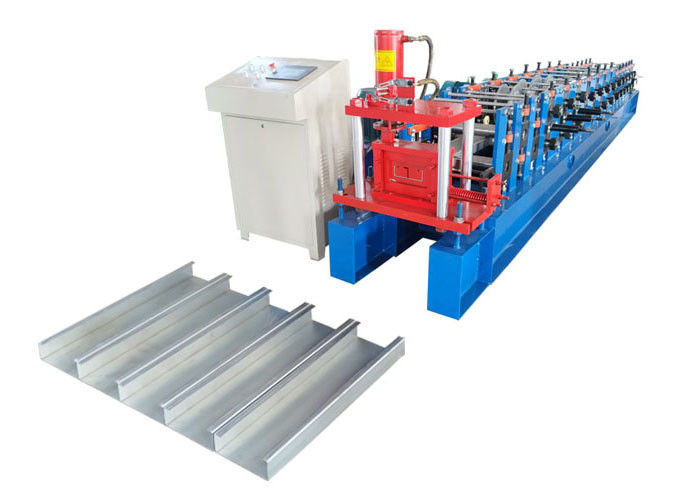

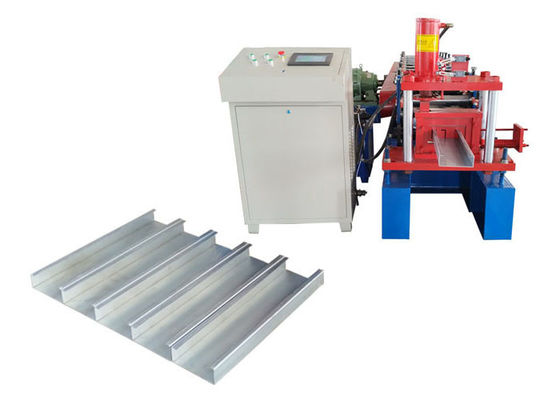

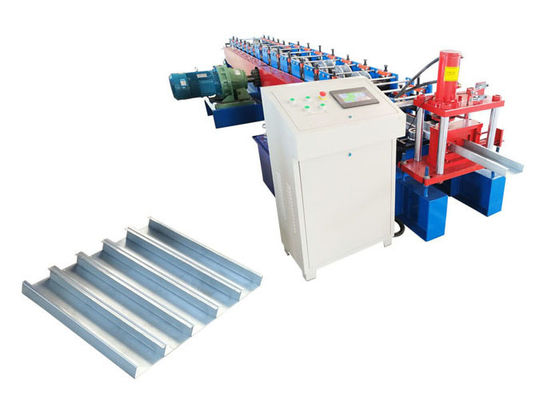

Fast Speed C Steel Profile Roll Forming Machine Dimension 7000*800*1200mm

China BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD certification
China BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD certification
My requirements are completely, I know that. But you provide enough patience and technic suggestion. Finally I got the best solution and good quality machine from you. Thank you very much!

—— Thomas

The machine is good, I bought it three years, still in a good working situation.If any body ask me how about SHITONG MACHINERY, I will recommend them to buy the machine from SHITONG MACHINERY.

—— Otto Mashaba

This is my second time buy machine from this company, because my besiness is expanded in the past three years. The first machine I bought from SHITONG is good, so when I need new machines, I decide buy from them again.

—— Frances Badical

Thanks for support me on my machine project! Wish your business booming and have a bright future!

—— Mahammed

I'm Online Chat Now

Fast Speed C Steel Profile Roll Forming Machine Dimension 7000*800*1200mm

Fast Speed C Steel Profile Roll Forming Machine Dimension 7000*800*1200mm
Fast Speed C Steel Profile Roll Forming Machine Dimension 7000*800*1200mm Fast Speed C Steel Profile Roll Forming Machine Dimension 7000*800*1200mm Fast Speed C Steel Profile Roll Forming Machine Dimension 7000*800*1200mm

Large Image :  Fast Speed C Steel Profile Roll Forming Machine Dimension 7000*800*1200mm

Product Details:
Place of Origin: China
Brand Name: ST
Certification: CE ISO
Model Number: 75-150
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: contact me
Packaging Details: nude
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 sets per month
Detailed Product Description
Voltage: 380V Or As Customize Weight: 6.5T
Warranty: 2 Years Dimension(l*w*h): 7000*800*1200
Production Capacity: 10-15m/min Name: Steel Profile Roll Forming Machine
High Light:

purlin roll former

,

steel frame roll forming machine

hydraulic drive fast speed C steel profile Purlin Roll Forming Machine



Equipment Detailed Parameters:

Raw material
material spec sheet, galvanized steel sheet, aluminum sheet
thickness of coil sheet 0.8-2 mm
Machine details
roller material High grade NO. 45 forged steel with 0.05mm hard chrome plating
shaft material High grade NO. 45 carbon wrought steel
cutting blade Cr12 mould steel with quenched treatment
diameter of shaft 90 mm
forming steps 12 rows
productivity 8-12 m/min
hydraulic station power 11 KW
hydraulic pressure 10-12MPa
controlling system famous PLC computer control
material of cutting table Cr 12 mould steel with quenched treatment
appearance size 7500mm*1000mm*1500mm
hydraulic oil 40# hydraulic oil
Electric tension 380V 50 Hz 3 Phase or as your requirements



Guarantee:

12 Months guarantee. if some part of the machine is broken. we will supply the best part,but if the damaged parts due to operate error,buyer will pay for the shipping fee.

After-sale service:

We sent technician to your country to fix the machine.the buyer shoule bear all the cost includng:visa,roundtrip ticket and suitable accommodation,also buyer should pay the salary 100USD/DAY.


FAQ

Q:Are you manufacturer?
A:Yes,we are manufacturer.We have our own technical team.Welcome to visit us.

Q:What kind o f payment term you can do?
A:We are flexible about payment terms,we can also help you on financing,please contact us for details.

Q:What info you need before you make the proposal?
A:The pipe diameter and thickness range which you need or the profile drawings,material information,your special requirements.

Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant pre-sales service.Also we can help you to solve the material(steel coil)purchase,worker train,international market price.

Fast Speed C Steel Profile Roll Forming Machine Dimension 7000*800*1200mm 0Fast Speed C Steel Profile Roll Forming Machine Dimension 7000*800*1200mm 1
