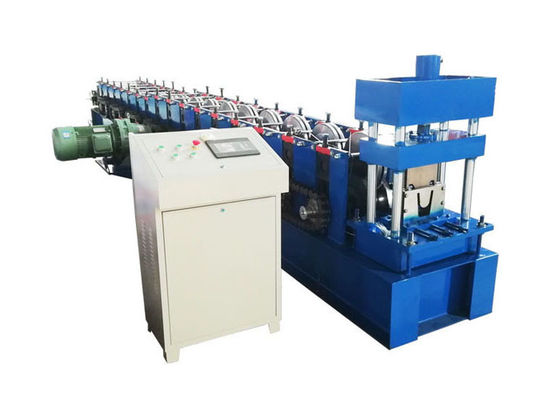

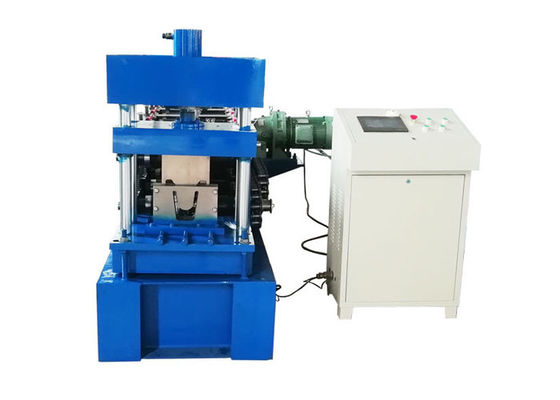

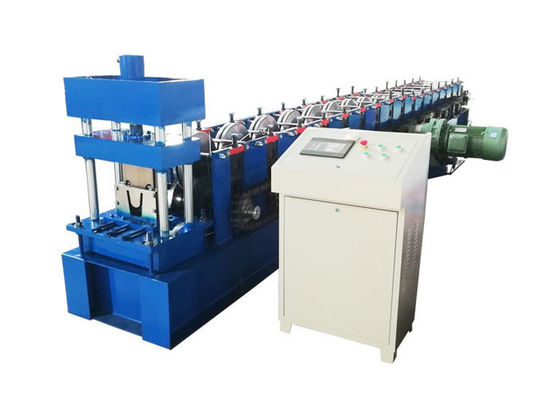

Fast Speed U Purlin Roll Forming Machine Tension Type Decoiler Maximum Load Capacity 5 Ton

Fast Speed U Purlin Roll Forming Machine Tension Type Decoiler Maximum Load Capacity 5 Ton
Fast Speed U Purlin Roll Forming Machine Tension Type Decoiler Maximum Load Capacity 5 Ton Fast Speed U Purlin Roll Forming Machine Tension Type Decoiler Maximum Load Capacity 5 Ton Fast Speed U Purlin Roll Forming Machine Tension Type Decoiler Maximum Load Capacity 5 Ton

Large Image :  Fast Speed U Purlin Roll Forming Machine Tension Type Decoiler Maximum Load Capacity 5 Ton

Product Details:
Place of Origin: China
Brand Name: ST
Certification: ISO CE
Model Number: 80
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: contact me
Packaging Details: nude
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 sets per month
Detailed Product Description
Use: Steel Structure Power(w): 22 Kw
Name: Purlin Roll Forming Machine Control System: PLC
Roller Material: Cr12mov, Heated And Quenched
High Light:

purlin making machine

,

purlin roll former

hydraulic fast speed design galvanized U Purlin Roll Forming Machine



Detail Description

(1)Tension type decoiler



①Functional Configuration It is used to support the steel coil and uncoil it in a turntable way.
②technical parameters

The maximum load capacity 5 Ton

The coil inside diameter φ500-508mm

(2) Main machine system
  • Roll forming system



  • Roll forming system consists of machine frame, drive disk assembly and cold bending rollers, ect.
  • The machine Section production and then splicing it
  • Cr12 Heat Treatment,roller surfaces polishing, hard plating .
  • Support structure in the form of roller shaft.
  • All motors use dedicated motor, has excellent mechanical properties.
  • Powered by a hydraulic motor system, it has small machine noise, and stable speed rapid prototyping.
②System for forming after cutting off
  • Adopting rolling forming then cut the sheet. No waste here, Cutting knife is made of the Cr12 after quenching.
  • Using combined frame type to cut the machine frame. The characteristics is good maintainability and easy to adjust.
  • Hydraulic stations offer the cutting power.
  • Structural features



  • Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
  • Cut-off tool: Use of high strength wear thicker type mold, it is advantageous to avoid cutting off at deformation



Advantages:

In Botou, we are the first to do pressure roll forming machine export business

♥ As a manufacturer we are specialized in all kinds of roll forming machine.

♥ Good experience of 20 years to make roll forming machine.

♥ Good experience for export more then 40 countries.

♥ Provide best price,good quality and fast delivery.

Fast Speed U Purlin Roll Forming Machine Tension Type Decoiler Maximum Load Capacity 5 Ton 0

Fast Speed U Purlin Roll Forming Machine Tension Type Decoiler Maximum Load Capacity 5 Ton 1
