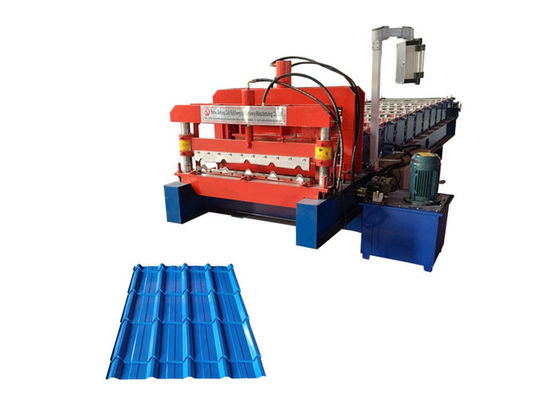

Metal Roof Glazed Tile Roll Forming Machine Speed 3-5 M/Min With Frequency Converter

Metal Roof Glazed Tile Roll Forming Machine Speed 3-5 M/Min With Frequency Converter

Metal Roof Glazed Tile Roll Forming Machine Speed 3-5 M/Min With Frequency Converter
Metal Roof Glazed Tile Roll Forming Machine Speed 3-5 M/Min With Frequency Converter Metal Roof Glazed Tile Roll Forming Machine Speed 3-5 M/Min With Frequency Converter Metal Roof Glazed Tile Roll Forming Machine Speed 3-5 M/Min With Frequency Converter

Large Image :  Metal Roof Glazed Tile Roll Forming Machine Speed 3-5 M/Min With Frequency Converter

Product Details:
Place of Origin: CANGZHOU , CHINA
Brand Name: SHITONG
Certification: CE , ISO9001
Model Number: ST-840
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact me
Packaging Details: Nude packing in the container,fixed well with steel rope. Control cabinet, pump station and all the spare parts with waterproof in the wooden box.
Delivery Time: 35 working days
Payment Terms: T/T, Western Union
Supply Ability: 16 set per month
Detailed Product Description
Feeding Material: PPGI Steel Coil Working Speed: 3-5m/min
Shaft Material: High Grade 45# Steel Pump Power: 5.5kw
Machine Type: Driven By Chains PLC System: Delta Or Clients' Demand
Material Width: 1000mm Material Thickness: 0.3-0.6mm
Name: Glazed Tile Roll Forming Machine
High Light:

roof tile making machine

,

step tile roll forming machine

Metal roof profile tiles making machine glazed tile roll forming machine



1. Know about our machine

The glazed tile roofing panel roll forming machine is a new and beautiful color steel production, used on quickly building,steel construction,such as workshop, factory, warehouse, gym, farm and so on,As roof, it is rainproof,light,easy assemble,stable and long time life time,It is classic overview,smooth and beautiful,And the machine,is full automatic control by PLC,we make the control box and PLC inside,touch screen control panel outside, input data and turn on the machine, it can work automatically.



2. Specifications of the roll forming production line

Name of Roll Forming Machine Metal sheet glazed tile roll forming machine color steel tile roofing production line
1 Suitable raw material PPGI/PPGL/GI/GL Steel Coils
2 Thickness of coil sheet 0.3-0.8mm
3 Feeding Coil width 914mm
4 Effective width 762mm
5 Under frame 350H-beam
6 Diameter of Soild shaft 70mm, high grade 45# steel, finish turning, cylindrical grinding, with keyway
7 Roller

High grade 45# steel, processed by CNC lathe, Quenched and tempered treatment,

hard chrome coated 0.05-0.07mm

8 Thickness of middle plate 16mm
9 Forming stations 13 stations
10 Drive type By chains
11 Power of main motor 5.5kw, Lichao, Shanghai
12 Power of pump station 5.5kw, Lichao, Shanghai
13 Forming speed About 3-5m/min
14 Hydraulic cutting Controlled by PLC
15 PLC DELTA, TAIWAN / Mitsubishi, Japan
16 Material of cutting blade Cr12Mov, quenching 58-62℃
17 Frequency converter

It has the advantage of slowing down before cutting, to

ensure thelength accuracy(±1mm, far better than industrial

standard ±3mm).

18 Switch CHNT
19 Transducer SAJ



3. The advantages of the machine

The Advantages of Roll forming machine: solid shaft, PLC control, hydraulic system, fast production speed,long spanlife

Can design the machine as your drawing,machine color do you favor.

Delivery: Large capacity and Fast delivery,can accept third-party check before delivery

Perfect after-sales service: Our engineer can teach you how to install and operate the machine at your place,all machine parts are available.

The whole line including:uncoiler,roll forming machine,hydraulic station,hydraulic cutter,PLC control system, receiving table.



4. Our company profile

Our equipment keeps a foothold in the domestic market, at the same time, we've developed international market in many countries. Having exported our equipment to Europe, Africa, South America, Russia, Burma, Pakistan, Sri Lanka, Uzbekistan and other countries and regions, we have received high praise from the foreign customers.

We have developed many new style Profile Forming Equipment, which enriches our products, makes our machinery more reasonable, artistic and practical. Therefore, we obtain the consistently high praise of new and regular customers.



5. Some machine pictures for your reference

Metal Roof Glazed Tile Roll Forming Machine Speed 3-5 M/Min With Frequency Converter 0Metal Roof Glazed Tile Roll Forming Machine Speed 3-5 M/Min With Frequency Converter 1Metal Roof Glazed Tile Roll Forming Machine Speed 3-5 M/Min With Frequency Converter 2



6. FAQ

Q1, If our country's voltage is different from yours, how to solve that?
A1, The usual voltage is 380v,220v,415v. If yours are not one of them, we will design the electric motor to suit your voltage.
Q2, We bought your roll forming machine line, but we couldn't install and debug it?
A2, Don't worry about that, when finished the machine, we will send you the manual book which shows you how to use the machine; if you still don't know, we can record a video to teach you how to operate the machine.
Q3, About the after service, if the machine has problem out of guarantee?
A3, All the machines are one guaranteed, life maintenance. It means if you order our machine, you will be our customer for lifetime, you can ask us anytime about the machine issues.
