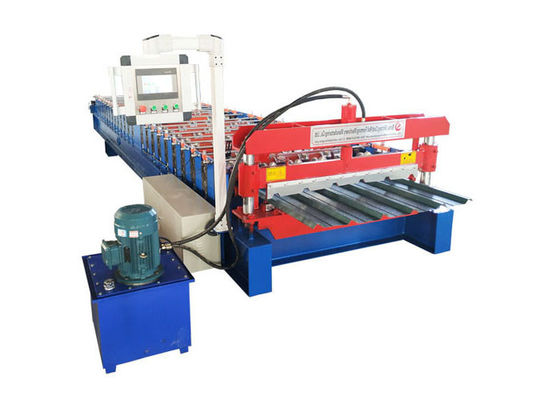

Mild Steel Sheet Metal Roll Forming Machines Main Frame 350 H Beam Chain Size 20mm

Mild Steel Sheet Metal Roll Forming Machines Main Frame 350 H Beam Chain Size 20mm
Mild Steel Sheet Metal Roll Forming Machines Main Frame 350 H Beam Chain Size 20mm Mild Steel Sheet Metal Roll Forming Machines Main Frame 350 H Beam Chain Size 20mm Mild Steel Sheet Metal Roll Forming Machines Main Frame 350 H Beam Chain Size 20mm

Large Image :  Mild Steel Sheet Metal Roll Forming Machines Main Frame 350 H Beam Chain Size 20mm

Product Details:
Place of Origin: CANGZHOU , CHINA
Brand Name: SHITONG
Certification: CE , ISO9001
Model Number: SJ-980
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact me
Packaging Details: Nude packing in the container,fixed well with steel rope. Control cabinet, pump station and all the spare parts with waterproof in the wooden box.
Delivery Time: 28 working days
Payment Terms: T/T, Western Union
Supply Ability: 23 set per month
Detailed Product Description
Feeding Material: Colored Steel Coil Frame Of Machine: 350H Steel
Shaft Material: High Grade 45# Steel Pump Power: 5.5KW LICHAO Shanghai
Machine Type: Single Layer Machine Name: Sheet Metal Roll Forming Machines
Usage: Roofing And Wall Panel Machine Weight: 3800KGS
High Light:

metal roof roll forming machine

,

steel sheet roll forming machine

Mild steel metal sheet roofing roll forming machines with customized roof models​



1. The general introduction of this machine

This machine takes GI/PPGI as raw material, through a series steps and can produce the metal roofing sheets.

The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry. The general process flow as below: Decoiler--Manual prectting--Material Guiding--Roll forming M/C--Hydraulic System--Post Cutting--discharge Rack



2. Specifications of the roll forming production line

Control System PLC Delta Inverter
Power Supply 3-Phase,380V,50Hz
Main Frame 350 H-Beam
Main Power 5.5kw
Pump Power 3kw
Forming Speed 10 m/min
Roller Station 15 stations
Roller Diameter 70mm
Hydraulic Pressure 10-12 MPa
Forming Size 850mm(852),840mm
Feeding Thickness 0.3-1.2mm
Feeding Width 1000mm
Backboard Thickness 16mm
Chain Size 20mm
Cutter Standard Cr12
Roller Standard Cr12
Cr-Plating Size 0.05mm
Overall Size 7000×1500×1600mm
Total Weight 4.5T



3.  Our after sale service

Our machines have one year guarantee, within one year, if the machine parts has some problem, we will be in charge of the repairing or replace. Also we will deliver the customer some spare parts together with the machine when loading the machine. If you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.



4. The mian features of our machine

1). Rollers

High quality rollers will help to produce the beautiful and high quality profile.That will satisfy your customers.Using high quality thick shaft, the strength is more durable.

2). Machine body

The main body of the body without welding, all the use of cast steel, prevent the host body deformation.

3). PLC Control System

Usually we provide the Delta PLC control system, but we can make that according to your need.

4). Roofing design

We can customize the roofing and wall panel designs as per clients' demand. If clients don't have an idea which model they want, we can also give suggestion based their country market.



5. Some machine pictures for your reference

Mild Steel Sheet Metal Roll Forming Machines Main Frame 350 H Beam Chain Size 20mm 0Mild Steel Sheet Metal Roll Forming Machines Main Frame 350 H Beam Chain Size 20mm 1Mild Steel Sheet Metal Roll Forming Machines Main Frame 350 H Beam Chain Size 20mm 2

6. Some details you may care about

1):  What service can you provide before order?

- About the pre-sale service. We provide you answers of all your questions on our machines, such as technical parameter, price, payment terms, ect. If you wanna visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.

2):  If our country's voltage is different from yours, how to solve that?
- The usual voltage is 380v,220v,415v. If yours are not one of them, we will design the electric motor to suit your voltage.

3): Can you finish the machine during the delivery time?

- We will finish the machine in time according to determined lead time.

4): Can you provide some spare parts?

- Yes, of course. The quick-wear parts are sent to you together with the machine.
