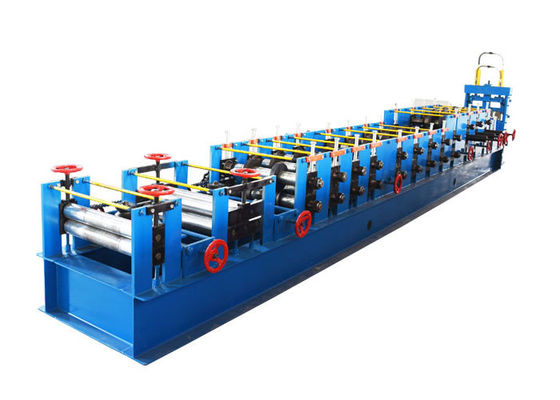

Hydraulic Drive Automatic Roll Forming Machine , C Purlin Machine Shaft Diameter 80mm

Hydraulic Drive Automatic Roll Forming Machine , C Purlin Machine Shaft Diameter 80mm
Hydraulic Drive Automatic Roll Forming Machine , C Purlin Machine Shaft Diameter 80mm Hydraulic Drive Automatic Roll Forming Machine , C Purlin Machine Shaft Diameter 80mm Hydraulic Drive Automatic Roll Forming Machine , C Purlin Machine Shaft Diameter 80mm

Large Image :  Hydraulic Drive Automatic Roll Forming Machine , C Purlin Machine Shaft Diameter 80mm

Product Details:
Place of Origin: HEBEI
Brand Name: ST
Certification: CE, ISO
Model Number: 120-300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: contact the sales,she will give you the best offer
Packaging Details: the machine is nude
Delivery Time: 30-40 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 set per month
Detailed Product Description
Controlling System: Famous PLC Computer Control Material Of  cutting Table: Cr 12 Mould Steel With Quenched Treatment
Material Spec: Sheet, Galvanized Steel Sheet, Aluminum Sheet Thickness Of Coil Sheet: 0.7-3mm
Weight Of Machine: 7 Tons Name: C Purlin Machine
High Light:

purlin making machine

,

steel frame roll forming machine

hydraulic drive automatic quick change model C purlin roll forming machine



1. Company information



We have established in 2001 as a professional manufacturer of ROLL FORMING MALCHINE. We use AUTO CAD design software. With more than 10 years of experience and strict quality control, our products meet International Standard. We are the leading manufacturer of roll forming machine in China.We manufacture various kinds of roll forming machines for producing such products as Roof Tile, Wall Panel, Roofing Corrugated Sheet, Floor Deck, C & Z Purling, Highway Guardrail, Sandwich Panel, Container Board, Car Panel, Roll Shutter Door, Downspout, Decorated gusset, Steel Pipe, etc.



2. Technical parameters:



Raw material
material spec sheet, galvanized steel sheet, aluminum sheet
thickness of coil sheet 0.5-3mm
Machine details
roller material High grade NO. 45 forged steel with 0.05mm hard chrome plating
shaft material High grade NO. 45 carbon wrought steel
cutting blade Cr12 mould steel with quenched treatment
diameter of shaft 80mm
forming steps 12 rows
productivity 20-25m/min
hydraulic station power 22 KW
hydraulic pressure 10-12MPa
controlling system famous PLC computer control
material of cutting table Cr 12 mould steel with quenched treatment
appearance size 7500mm*1150mm*1510mm
hydraulic oil 40# hydraulic oil
Electric tension 380V 50 Hz 3 Phase or as your requirements



Device Configuration

No   number
(1) Manual decoiler 1 set
(2) Guiding device 1 set
(3) Main roll forming machine 1 set
(4) Hydraulic cutting device 1 set
(5) PLC electric control system 1 set
(6) Hydraulic driving system 1 set
(7) Special tools and parts 1 set





Characteristic



  • Adopt touch screen control box through the man-machine interface, convenient operation, good appearance, consistent with the whole equipment.
  • The main components will stable performance, good reputation, global procurement.
  • Using a number of control technology, automation degree is high.
  • Encoder count, length accurately.

3. Machine picture
Hydraulic Drive Automatic Roll Forming Machine , C Purlin Machine Shaft Diameter 80mm 0Hydraulic Drive Automatic Roll Forming Machine , C Purlin Machine Shaft Diameter 80mm 1Hydraulic Drive Automatic Roll Forming Machine , C Purlin Machine Shaft Diameter 80mm 2

4. Installation and training:

A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also trainyour workers/technician face to face.

B. Without visiting, we will send you user manual and video to teach you to install and operate.

C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.



5. Our Machine Advantage

1. Good quality: We have a professional designer and experienced engineer team.And the raw material and accessories we use are good.

2. Good service: we provide the technical support for whole life of our machines.

3. Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.

4. Easy operation:All machine cotrolling by PLC computer controlling systerm.

5. Elegant apperance:Protect the machine from rust and the painted colour can be customized

6. Reasonable price:We offer the best price in our industry.



6. FAQ

A: - What is the after- sale service?

- About the after-sales service. We can send technician to your country to fix the machine. The buyer should

bear all the cost including: visa, Roundtrip ticket and suitable accommodation, also buyer should pay the salary100USD/day.

The warranty is one year. And we will provide the technical support for the whole life. It is free to maintain the machine the first year after buying, including changing the main components. The first year hence, you will pay

for our technician $100 per day to maintain the machine. And the components are not free, if you need to get

it from us.

B: - Any other service?

- We can manufacture, design, installation and debug various roll forming machines including standard and customized machines.

It is free to assemble machine and train your works, but the buyer should pay for the round-trip airplane ticket,

and arrange accommodation during that time.

C: - What is the payment term?

- Our payment term is TT, 30%TT as the deposit, before shipping pays the last 70%TT

D: - Any certification:

- Yes, we have CE TUV BV certification
