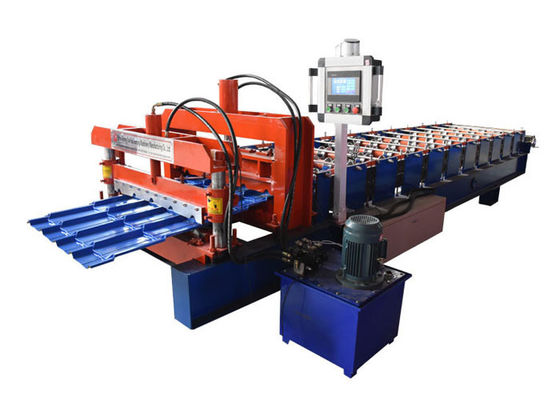

Profiled Aluminium Roll Forming Machine , Galvanized Color Steel Roll Forming Machine

Profiled Aluminium Roll Forming Machine , Galvanized Color Steel Roll Forming Machine
Profiled Aluminium Roll Forming Machine , Galvanized Color Steel Roll Forming Machine Profiled Aluminium Roll Forming Machine , Galvanized Color Steel Roll Forming Machine Profiled Aluminium Roll Forming Machine , Galvanized Color Steel Roll Forming Machine

Large Image :  Profiled Aluminium Roll Forming Machine , Galvanized Color Steel Roll Forming Machine

Product Details:
Place of Origin: China
Brand Name: ST
Certification: ISO CE
Model Number: 840
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: contact me
Packaging Details: nude
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 stes per month
Detailed Product Description
Name: Aluminium Roll Forming Machine Thickness Of Coil Sheet: 0.3-0.7 Mm
Forming Steps: 11 Stations Productivity: 3-4 M/min
Appearance Size: 6500*1500*1500 Mm Weight: 3.5 Tons
High Light:

roof tile making machine

,

glazed tile making machine

profiled galvanized aluminum color steel Glazed Tile Roll Forming Machine



hydraulic pressure 10-12MPa
controlling system famous PLC computer control
material of cutting table Cr 12 mould steel with quenched treatment
appearance size 7500mm*1000mm*1500mm
hydraulic oil 40# hydraulic oil
Electric tension 380V 50 Hz 3 Phase or as your requirements



Components and Technical Specification

  Technical Specification

Main Roll Forming Machine



Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

Shearing Mechanism



It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12,quenching treatment

Hydraulic System





Power:4kw,Hydraulic oil: 40#

Hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.

Computer Control Cabinet



The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The PLC system is easy to operate and use.



Profiled Aluminium Roll Forming Machine , Galvanized Color Steel Roll Forming Machine 0Profiled Aluminium Roll Forming Machine , Galvanized Color Steel Roll Forming Machine 1

Our main products include

Villa Keel Roll Forming Machine Stud and Track Keel Roll Forming Machine
Omega Profiles Keel Roll Forming Machine Profiles Bending Roll Forming Machine
Ceiling Keel Roll Forming Machine Double Layer Roofing Tile Roll Forming Machine
Metal Roofing Roll Forming Machine Floor Deck Roll Forming Machine
C-Purlin Forming Machine Light Steel Forming Machine
Ridge Tile Forming Machine Bending Machine
Container house Shearing Machine



1. Design: architecture, Interior decoration, structural and landscape design.

2. Manufacture: roof truss, external & internal wall stud, floor deck, staircase, etc.

3. Customization: we can manufacture different machines to fit various requirements from different customers.
