Payment & Shipping Terms:
|Feeding Material:||Prepainted Steel Coil||Frame Of Machine:||300H Steel|
|Model Of Roofing:||IBR Roofing||Name:||Metal Roofing Sheet Making Machine|
|Machine Type:||Single Layer Machine||Voltage:||440v , 3phase , 60Hz|
|Cutting Type:||Hydraulic Cut Device||Drive Type:||By Chains|
metal roof roll forming machine,
metal roofing sheet making machine

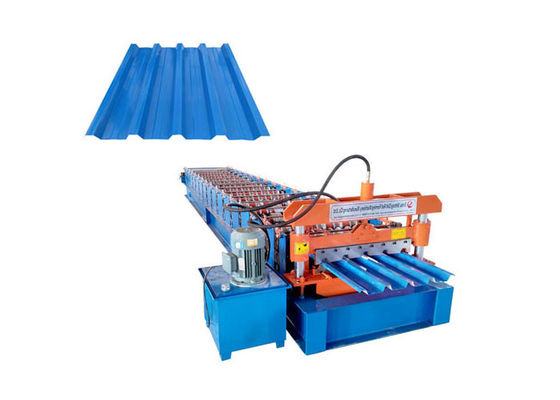

Prepainted galvanised iron metal sheet roll forming machines 1050 model roofing panel
1. The general process flow of production line
Manual decoiler -----------> main body of roll forming machine -----------> hydraulic cutting system -----------> PLC control system -----------> discharge table.
This machine line can work automatically by PLC control system, it is very easy to operate, welcome all customers from the world to inquiry.
2. Components of the roll forming production line
(1) Manual Decoiler ------- 1 set
Un-powered, manual control
Max Feeding width: 1250mm, coil ID range 450mm to 550mm
Bearing Capacity: 5 Tons
(2) Main body of machine
|2.||Hydraulic Motor Power||5.5KW|
|7.||Forming Steps||16 steps|
|8.||Usage||Floor Decking Panel|
(3) Hydraulic Cutting device
It is controlled by gear wheel oil pump.
After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job.
The system includes: a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves.
Power of the oil pump motor: 4kw Hydraulic oil :46#
(4) PLC Control System
It adopts industrial computer to control.
The target piece’s length is adjustable and digit of it can be adjusted.
Computed mode has two Modes: automatic one and manual one. The system is easy to operate and use.
It contains programmer, transformer for the electronic machines and kits of every part.
Language screen:Chinese,English language .
(5) Discharge table
Un-powered, manual type
Function: collect the finished products
3. Same model machine picture for referene
4. After sales service
Our machines have one year guarantee, within one year, if the machine parts has some problem, we will be in charge of the repairing or replace. Also we will deliver the customer some spare parts together with the machine when loading the machine. If you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
5. Brief of our company
Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
"The quality first, The prestige first" is the service aim of our company, we wish to customize the best machines for customers. So all stuff from our company welcome anyone who are interested in our machines come to investigate and talk about cooperation.
6. Frequently asked questions
>> How to maintenance?
A:If using frequently,best coating lubricant on the chain and two ends of the shaft every month, replace the hydraulic oil every 1-2 years.
>> What can you do if the machine broken?
A:Our machine's warranty period is 1 year,
if the broken parts can't repair,we can free send the new parts replace the broken parts to you except the solenoid valve,the solenoid valve you must pay the express cost yourself.
if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.
>> Can you be responsible for transport?
A:Yes,please tell me the destination port or address.we have rich experience in transport.
