Hydraulic Rain Gutter Roll Forming Machine / Round Downspout Machine Input Width 300mm

China BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD certification
China BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD certification
My requirements are completely, I know that. But you provide enough patience and technic suggestion. Finally I got the best solution and good quality machine from you. Thank you very much!

—— Thomas

The machine is good, I bought it three years, still in a good working situation.If any body ask me how about SHITONG MACHINERY, I will recommend them to buy the machine from SHITONG MACHINERY.

—— Otto Mashaba

This is my second time buy machine from this company, because my besiness is expanded in the past three years. The first machine I bought from SHITONG is good, so when I need new machines, I decide buy from them again.

—— Frances Badical

Thanks for support me on my machine project! Wish your business booming and have a bright future!

—— Mahammed

I'm Online Chat Now

Hydraulic Rain Gutter Roll Forming Machine / Round Downspout Machine Input Width 300mm

Hydraulic Rain Gutter Roll Forming Machine / Round Downspout Machine Input Width 300mm
Hydraulic Rain Gutter Roll Forming Machine / Round Downspout Machine Input Width 300mm Hydraulic Rain Gutter Roll Forming Machine / Round Downspout Machine Input Width 300mm Hydraulic Rain Gutter Roll Forming Machine / Round Downspout Machine Input Width 300mm

Large Image :  Hydraulic Rain Gutter Roll Forming Machine / Round Downspout Machine Input Width 300mm

Product Details:
Place of Origin: HEBEI
Brand Name: ST
Certification: CE, ISO
Model Number: 330
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: contact the sales,she will give you the best offer
Packaging Details: the machine is nude
Delivery Time: 30-40 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 set per month
Detailed Product Description
Certification: CE/ISO9001,CE/ISO Condition: New
Weight: Depend On Design NAME: Round Downspout Machine
Roller Material: High Grade NO. 45 Forged Steel With 0.05mm Hard Chrome Plating Shaft Material: High Grade NO. 45 Carbon Wrought Steel
High Light:

gutter making machine

,

downspout roll forming machine

hydraulic water round gutter roll forming machine manufacturing



1. Company information

BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD. was established in 2001.Our company is a comprehensive enterprise intergrating production,sales and service.We are mainly devoted to the development and manufacturing of metal plate cold bending roll forming equipment.



2. Product Application

This machine takes GI/PPGI as raw material, through a series steps and can produce the barrel type roofing sheets.

The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.


3. Working Flow:

Decoiler-------Feeding-------Roll forming-------Cutting------Finished product



4. Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.



5. Technical parameters:

Raw material

material spec sheet, galvanized steel sheet, aluminum sheet
Input width 300mm
thickness of coil sheet 0.5-0.7mm

Machine details

roller material high grade NO. 45 forged steel with 0.05mm hard chrome plating
shaft material high grade NO. 45 carbon wrought steel
cutting blade Cr12 mould steel with quenched treatment
diameter of shaft 80mm or as your requirement
main frame 300 H steel
forming steps 18 rows
productivity 20-25 m/min
hydraulic station power 22KW
hydraulic pressure 10-12MPa
controlling system famous PLC computer control
material of cutting table Cr 12 mould steel with quenched treatment

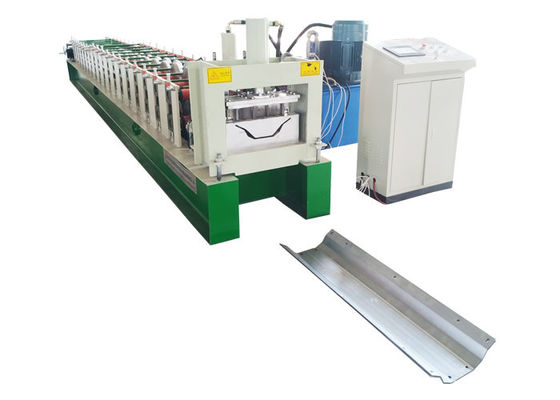

6. Machine picture

Hydraulic Rain Gutter Roll Forming Machine / Round Downspout Machine Input Width 300mm 0Hydraulic Rain Gutter Roll Forming Machine / Round Downspout Machine Input Width 300mm 1Hydraulic Rain Gutter Roll Forming Machine / Round Downspout Machine Input Width 300mm 2

7. package and Warranty:

1. All the parts in the roll forming machine is free to maintain all the life,if in 18 months our company bear the cost for exchanged the broken part like the new parts cost and express cost,if more than 18 month,we also free to maintain the broken parts but for send the new parts,the buyer need bear the express cost.

2. When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.
