Customized PPGI roofing sheet metal roll forming machines for abroad customers
1. Usage and introduction of this production line
The complete Customized PPGI roofing sheet metal roll forming machines for abroad customers includes manual decoiler, main body of roll forming machine, hydraulic cutting system, PLC control system and discharge table. This machine line can work automatically by PLC control system. Welcome to inquiry our machinery.
2. Components of the roll forming production line
(1) Manual Decoiler 1 set
Un-powered, manual control
Max Feeding width: 1250mm, coil ID range 508mm±50mm
Bearing Capacity: Max. 5 Ton
Weight: 200kgs
(2) Main body of machine
Feeding material | PPGI / GI plate |
Frame type | steel board welded |
Width of the plate | 1000mm |
Thickness of the plate | 0.3 - 0.8mm |
Dimensions | 7000mm*1500mm*1400mm |
Diameter of the shaft | Φ75mm |
Roller station | 15rows |
Productivity | 8 - 12m/min |
Drive mode | A / C motor |
Motor power to drive the machine | 5.5 + 4 kw |
Voltage | 380V 50Hz 3phase |
Weight | 7600kgs |
Material of the cutting head | Gr12 , heat treatment HRC58-60 |
Machine frame | 350 H steel |
(3) Hydraulic Cutting device
It is controlled by gear wheel oil pump.
After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job.
The system includes: a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves.
Power of the oil pump motor: 4kw Hydraulic oil :46#
(4) PLC Control System
It adopts industrial computer to control.
The target piece’s length is adjustable and digit of it can be adjusted.
Computed mode has two Modes: automatic one and manual one. The system is easy to operate and use.
It contains programmer, transformer for the electronic machines and kits of every part.
Language screen:Chinese,English language .
(5) Discharge table
Un-powered, manual type
Function: collect the finished products
Dimension: 4000mm*1000mm*700mm
Weight: 80kgs

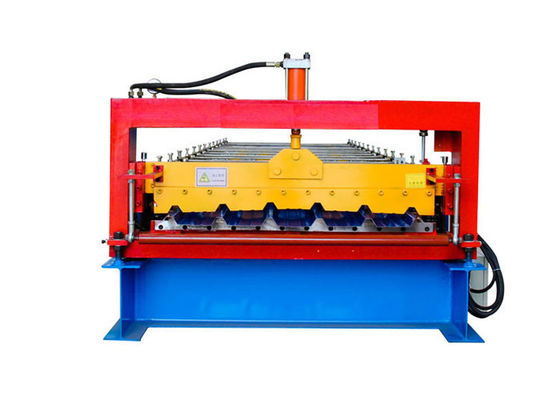

3. Same model machine picture for referene
4. After sales service
Once you paid the deposit, we will start the production as soon as possible. When the machine is finished, you can come to check the machine, we will arrange your accommodation and relative schedule. If you don't come, we can test the machine and send you test video. It's no problem. Our machine warranty is one year, we will charge to repair if any spare parts are broken.
5. Brief of our company
Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufacture of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.
6. FAQ
1) - Can you finish the machine during the delivery time?
- We will finish the machine in time according to determined lead time.
2) - Can you provide some spare parts?
- Yes, of course. The quick-wear parts are sent to you together with the machine.
3) - Do you have any other service?
- We can manufacture, design, installation and debug various roll forming machines including standard and customized machines.
