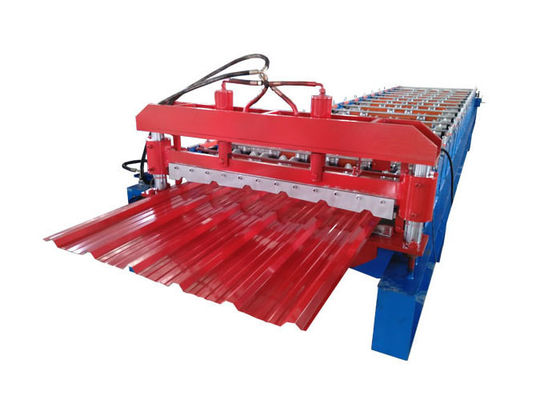

Hydraulic Drive Sheet Metal Roll Forming Machines Material Expand Width 1200mm

Hydraulic Drive Sheet Metal Roll Forming Machines Material Expand Width 1200mm
Hydraulic Drive Sheet Metal Roll Forming Machines Material Expand Width 1200mm Hydraulic Drive Sheet Metal Roll Forming Machines Material Expand Width 1200mm Hydraulic Drive Sheet Metal Roll Forming Machines Material Expand Width 1200mm

Large Image :  Hydraulic Drive Sheet Metal Roll Forming Machines Material Expand Width 1200mm

Product Details:
Place of Origin: China
Brand Name: Shitong
Certification: CE ISO
Model Number: 1000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: contact me for best price
Packaging Details: nude
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 sets per month
Detailed Product Description
After-sales Service Provided: Engineers Available To Service Machinery Overseas Name: Sheet Metal Roll Forming Machines
Type: Full- Automatic Raw Material: PPGI PPGL GI GL Alumin Color Steel Coil
Weight: 3 Tons Voltage: 380/415/420V Etc
High Light:

steel sheet roll forming machine

,

metal roofing sheet making machine

New Model 1000 Hydraulic Drive Color Roof Sheet Metal Roll Forming Machines



thickness of coil sheet 0.2-0.8 mm
material expand width 1200mm
Efficiency width 1000mm
Wave height 20mm
Wave length 200mm
productivity 20-25m/min



1. Production Process:



Uncoiling→ Feeding material into machine →Roll forming → Auto cutting →Products receiving



2. Standard Configuration:



5 tons Manual decoiler 1 set
Main roll forming machine 1 set
Hydraulic pump system 1 set
PLC control system 1 set
Receiving Table 1 set
Spare parts 1 set



3. Packing Method



Main machine is packaged with plastic film



4. Transportation



All machines need one 40 feet container to hold



5. Payment Term



30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.



6. Delivery Time



Within 30 days after receiving deposit.



7. Warranty



Two years, and we will provide technical support for wholelife of the equipment.

If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.



8. Our Product



Our main products include roll forming machines, guardrail roll forming machines, steel deck forming machines, door & window frame roll forming equipment, steel metal door making lines, guide rail rollforming machines, upright post roll formers, pipe and tube roll formers, purlin cold roll forming machines, T-bar forming machines, grape trellis roll forming machines, roof tile forming machines, steel metal panel roll forming machines, stud and track forming machines, cable tray roll forming machines, shelf rack making machines, gutter roll forming machines, roller shutter manufacturing lines, car bumper forming machines, car door forming machines, distribution cabinet making machines, channel roll forming machines and so on. Welcome your inquiry.





Hydraulic Drive Sheet Metal Roll Forming Machines Material Expand Width 1200mm 0Hydraulic Drive Sheet Metal Roll Forming Machines Material Expand Width 1200mm 1
