Payment & Shipping Terms:
|Processing Material:||Colored Steel Plate, Galvanized Board, Aluminum Plate||Thickness:||0.3mm-0.8mm|
|Efficienty Width:||1000mm||Coil Width:||1200mm|
|Forming Steps:||13 Steps||Shaft Diameter:||70 Mm|
metal roof roll forming machine,
metal roofing sheet making machine

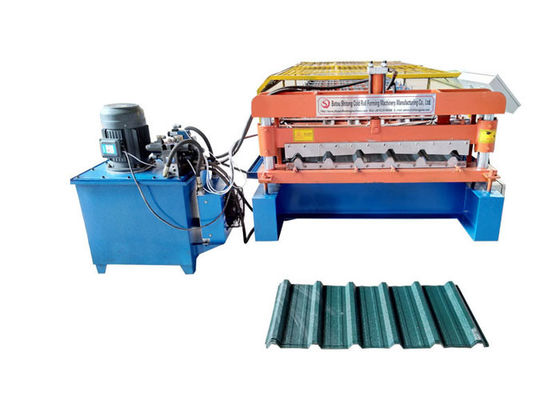

full automatic roof galvanized iron sheet metal roll forming machines
1. Company information
BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD. was established in 2001.Our company is a comprehensive enterprise intergrating production,sales and service.We are mainly devoted to the development and manufacturing of metal plate cold bending roll forming equipment.
We have high quality professional teams,skillful talents,strong technical force,strong and indenpendent reaserch and development capabilities,advanced production equipment and a perfect after-sales service system.We have great confidence in the quality and precision of our product.Our customers feedback said that it is a great machine,no noise,clean,very advanced technology ,and it also has the features of light sturcture and reasonable design.
2. Technical parameters:
|configurations||manual decoiler, main machine of roll forming, cutting device, output table, electric motor, PLC control system|
|Material||processing material||Colored Steel plate, Galvanized Board, Aluminum Plate|
|Manual decoiler||The maximum load capacity:5 ton||Expand by band|
|The coil inside diameter:450-550mm|
|Suitable Coil width:1250mm|
|Main Forming machine||Forming steps||13steps|
|Shaft diameter||70 mm|
|Thick of arch frame||16mm|
|Frame body||High strength steel pipe weld with color steel sheet cover|
|roller material||45# steel|
|shaft material||45# steel|
|cutter material||Cr12 mold steel with quenched treatment|
|Transmission||By 1” chain|
|Hydraulic system||Automatic hydraulic cutting after forming, without wasting.|
Program language: English/Chinese(or as required)
|Operating mode||Button+touch screen|
|Total power||4 kw|
|Main body color||Blue and orange(or as required)|
|Voltage||380v/50hz/3ph(or as required)|
A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine,
and also trainyour workers/technician face to face.
B. Without visiting, we will send you user manual and video to teach you to install and operate.
C. If buyer needs our technician to go to your local factory, please arrange board and lodging and
other necessary things.
5. After service
A. One year guarantee for whole machine.
B. 24 hours technical support by email or phone call.
C. If there is any problem found of the machine, we will repair it for free in one year.
