Machine Size:: | 6.6*1.2*1.5m | Machine Color:: | Blue And Orange |
---|---|---|---|
Material: | Galvanized Coil | Usage: | Roofing Tile Production |
Machine Power: | Electric And Hydraulic | Machine Color: | Bule And Orange |
Driven Type: | Drive By Chains | Cutting Type: | Hydraulic Cutting |
Machine Frame: | Welded By 350H Steel | Warranty: | 1 Year |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Raw Material: | PPGI PPGL GI GL Alumin Color Steel Coil |
Highlight: | metal roof roll forming machine,steel sheet roll forming machine |
Long Service Life Sheet Metal Roll Forming Machine With High Strength Steel Frame
1. Long use life sheet matal roll forming machine with high strength steel frame
---- This machine adopt high strength GB standard steel frame, ensure machine have strong enough frame.
---- The rollers are after heat treatment, ensure machine have a long lifetime.
---- We cooperate with all the famous electric parts supplier, ensure machine electric system quality.
---- We provide all extra free easy broken part with new machine.
2. Long use life sheet matal roll forming machine with high strength steel frame parameters
Raw material | |
material | PPGI, PPGL, GI, Steel, Aluiminum |
thickness of coil sheet | 0.3 to 0.8 mm |
material expand width | 914mm/1000mm/1200mm/1220mm/1250mm |
Efficiency width | 695mm/750mm/1000mm/1050mm |
Machine details | |
roller material | high grade NO. 45 forged steel with 0.05mm hard chrome plating |
shaft material | high grade NO. 45 carbon wrought steel |
cutting blade | Cr12 mould steel with quenched treatment |
diameter of shaft | 70mm |
main frame | 300-400mm H steel |
forming steps | 15 stations |
productivity | 8-12 m/min |
hydraulic station power | 4 KW |
hydraulic pressure | 10-12MPa |
appearance size | 6700mm*1500mm*1500mm |
hydraulic oil | 40# hydraulic oil |
Electric tension | 380V 50 Hz 3 Phase or as your requirement |
Cut Mode | Hydraulic forming after cutting off |
Cutter materia | Cr12 Heat Treatment |
Electronic control system | PLC, Touch Screen, Encoding counter |
Color | Blue, green or yellow or as your requirement |
Rolling material | 45# steel,roller surfaces polishing, hard plating |
Service life | 10 years |
Machine Components | ||
No. | Name | QTY |
1 | Manual uncoiler | 1 set |
2 | Feeding and leveling device | 1 set |
3 | Roll forming system | 1 set |
4 | Hydraulic punching and cutting | 1 set |
5 | Product support frame | 1 set |
6 | PLC Control System | 1 set |
3. Shitong cold roll forming machine company profiles
Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.
The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
4. FAQ (about our roll forming machine)
Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We needyour machines running in order to keep your business running.
3. How to visit your company?
A.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
B.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi (4.5 hours), then we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 24 months, if the broken parts can't repair, we can send the new parts replace the broken parts freelly, but you need pay the express cost yourself. If after warranty period, we can through negotiationfor to solve the problems, and we supply the technical support for the whole life of the equipment.
5. Can you be responsible for transport?
Yes, please tell me the destination port or address.we have rich experience in transport.
6. You are Trade Company or factory?
We are trade company but we also have own factories. Building Trade Company is just for exporting various types of cold roll forming machines.

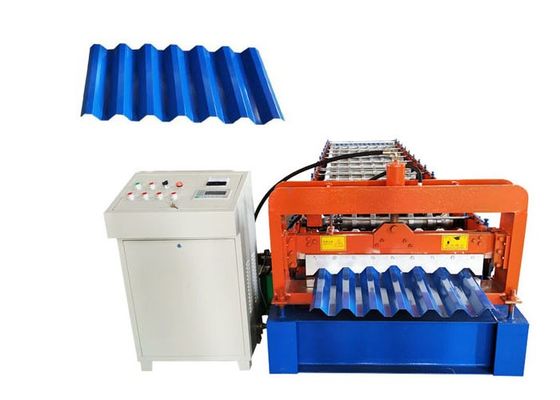

5. Roll forming machine pictures:
