Payment & Shipping Terms:
|Machine Size::||9.6*1.2*1.5m||Machine Color::||Blue And Orange|
|Material::||Galvanized Coil||Usage::||Roofing Sheet Making|
|Machine Power:||Electric And Hydraulic||Machine Color:||Bule And Orange|
metal roof roll forming machine,
metal roofing sheet making machine

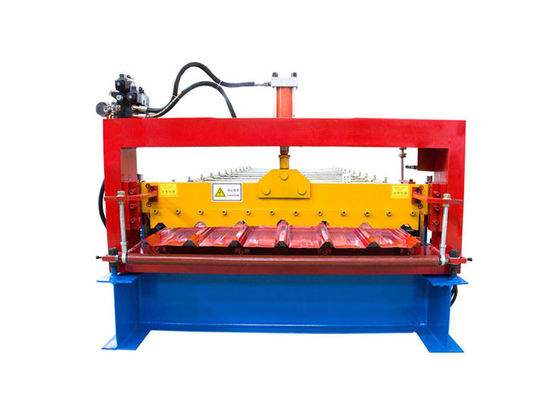

Hydraulic cutter steel roofing sheet metal roll forming machine high efficiency
1. Hydraulic cutter steel roofing sheet metal roll forming machine high efficiency
---- Our company use high quality electric motors.
---- A hydraulic cutting systme enusre the cutter working stablely.
---- PLC control system can provide a automaticly working situation.
---- We provide satisfy after sale service.
2. Hydraulic cutter steel roofing sheet metal roll forming machine high efficiency parameters
|thickness of coil sheet||0.3-0.8 mm|
|material expand width||914mm/1000mm/1200mm/1220mm/1250mm|
|roller material||high grade NO. 45 forged steel with 0.05mm hard chrome plating|
|shaft material||high grade NO. 45 carbon wrought steel|
|cutting blade||Cr12 mould steel with quenched treatment|
|diameter of shaft||70mm|
|main frame||300-400mm H steel|
|forming steps||15 stations|
|hydraulic station power||4 KW|
|hydraulic oil||40# hydraulic oil|
|Electric tension||380V 50 Hz 3 Phase or as your requirement|
|Cut Mode||Hydraulic forming after cutting off|
|Cutter materia||Cr12 Heat Treatment|
|Electronic control system||PLC, Touch Screen, Encoding counter|
|Color||Blue, green or yellow or as your requirement|
|Rolling material||45# steel,roller surfaces polishing, hard plating|
|Service life||10 years|
|1||Manual uncoiler||1 set|
|2||Feeding and leveling device||1 set|
|3||Roll forming system||1 set|
|4||Hydraulic punching and cutting||1 set|
|5||Product support frame||1 set|
|6||PLC Control System||1 set|
3. Shitong cold roll forming machine company profiles
The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
4. FAQ (about our roll forming machine)
1.Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We needyour machines running in order to keep your business running.
3. How to visit your company?
A.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
B.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi (4.5 hours), then we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 24 months, if the broken parts can't repair, we can send the new parts replace the broken parts freelly, but you need pay the express cost yourself. If after warranty period, we can through negotiationfor to solve the problems, and we supply the technical support for the whole life of the equipment.
5. You are Trade Company or factory?
We are trade company but we also have own factories. Building Trade Company is just for exporting various types of cold roll forming machines.
6. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.
5. Roll forming machine pictures:
