Product Details:
Payment & Shipping Terms:
|
| Feeding Material: | Color Steel Coil | Working Speed: | 5m/min |
|---|---|---|---|
| Shaft Material: | High Grade 45# Steel | Pump Power: | 11kw |
| Drive Motor: | Servo Motor | PLC System: | Delta Or Clients' Demand |
| Usage: | Roofing Tile Production | Machine Frame: | Welded By 350H Steel |
| Cutting Type: | Hydraulic Cutting | Driven Type: | Drive By Chains |
| Highlight: | ppgl glazed tile machine,high speed glazed tile machine,ppgl glazed tile forming machine |
||
High speed glazed tile roll forming machine with combined cutting / pressing device
1. Brief of the machine
---- According to customer requirements, the machine can produce glazed tile roofing sheet with faster speed than normal type, it can reach around 5 m/min.
---- Customer can control the roofing tile length by the PLC.
---- Machine have a combined cutting and pressing device in order to improve the working capacity.
---- Free accessories are provided with new machine, and we will instruct you how to use the machines.
2. Specifications of the roll forming production line
| Name of Roll Forming Machine | High speed glazed tile roll forming machine with combined cutting / pressing device | |
| 1 | Suitable raw material | PPGI/PPGL/GI/GL Steel Coils |
| 2 | Thickness of coil sheet | 0.3-0.8mm |
| 3 | Feeding Coil width | 1219mm |
| 4 | Effective width | 1000mm |
| 5 | Under frame | 350H-beam |
| 6 | Diameter of Soild shaft | 70mm, high grade 45# steel, finish turning, cylindrical grinding, with keyway |
| 7 | Roller |
High grade 45# steel, processed by CNC lathe, Quenched and tempered treatment, hard chrome coated 0.05-0.07mm |
| 8 | Thickness of middle plate | 16mm |
| 9 | Forming stations | 14 stations |
| 10 | Drive type | By chain(1.0 inch) link bearing model 6210 |
| 11 | Power of main motor | 5.5kw with Cycloidal reducer, Lichao, Shanghai |
| 12 | Power of pump station | 5.5kw, Lichao, Shanghai |
| 13 | Forming speed | About 3-5m/min |
| 14 | Hydraulic cutting | Controlled by PLC |
| 15 | PLC | DELTA, TAIWAN / Mitsubishi, Japan |
| 16 | Material of cutting blade | Cr12Mov, quenching 58-62 HRC |
| 17 | Frequency converter |
It has the advantage of slowing down before cutting, to ensure the length accuracy(±1mm, far better than industrial standard ±3mm). |
| 18 | Switch | CHNT |
| 19 | Transducer | SAJ |
3. The features of the machine
1) Machine Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
2) Roll station: about 18 stations (according the final design)
3) Roller material:ASTM1045 chrome plated surface with chrome,CNC,
4) Shaft diameter: ￠70mm material: SAE1045 with quenching and tempering
4. Our company profile
Our company specializes in producing and designing each kind of roll forming machine such as roll forming machines for metal roof tiles, wall sheets. While consummating the old model, with the continuous efforts of our scientific researchers, our company developed one after another of Automatic Cutting and Punching C-Type Steel Roll Forming Machine, automatic cutting and punching Z shape roll forming machine, the production line of Glazed Tile Machine in the style of antiquity, Automobile Panel Machine, Guardrail forming machine, shutter door forming machine, which have the advanced technical level.
5. Components of the roll forming machine
| Machine Components | ||
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
6. FAQ
1. Can you accept OEM?
- We can accept OEM.
2. Any certification:
- Yes, we have CE TUV BV certification.
3. Can you make the machine according to my design or photo type?
- Yes. We have an experienced team to work out the most suitable design and production plan for the machine.

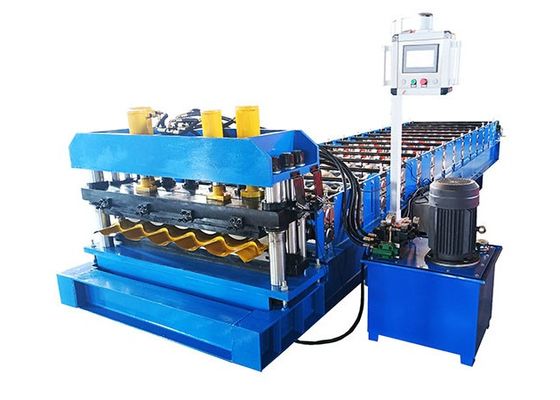

7. Machine pictures for your reference
