Color Steel Roofing Sheet Corrugated Shape Roll Forming Machine With PLC Control System

China BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD certification
China BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD certification
My requirements are completely, I know that. But you provide enough patience and technic suggestion. Finally I got the best solution and good quality machine from you. Thank you very much!

—— Thomas

The machine is good, I bought it three years, still in a good working situation.If any body ask me how about SHITONG MACHINERY, I will recommend them to buy the machine from SHITONG MACHINERY.

—— Otto Mashaba

This is my second time buy machine from this company, because my besiness is expanded in the past three years. The first machine I bought from SHITONG is good, so when I need new machines, I decide buy from them again.

—— Frances Badical

Thanks for support me on my machine project! Wish your business booming and have a bright future!

—— Mahammed

I'm Online Chat Now

Color Steel Roofing Sheet Corrugated Shape Roll Forming Machine With PLC Control System

Color Steel Roofing Sheet Corrugated Shape Roll Forming Machine With PLC Control System
Color Steel Roofing Sheet Corrugated Shape Roll Forming Machine With PLC Control System Color Steel Roofing Sheet Corrugated Shape Roll Forming Machine With PLC Control System Color Steel Roofing Sheet Corrugated Shape Roll Forming Machine With PLC Control System Color Steel Roofing Sheet Corrugated Shape Roll Forming Machine With PLC Control System

Large Image :  Color Steel Roofing Sheet Corrugated Shape Roll Forming Machine With PLC Control System

Product Details:
Place of Origin: China
Brand Name: SHITONG
Certification: CE, ISO 9000
Model Number: 17-86-836
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 7000-9000 set
Packaging Details: Container
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: set 20 month
Detailed Product Description
Machine Size: 6*1.2*1.5m Machine Color: Blue And Orange
Material: Galvanized Coil Usage: C Purlin Making
Control System: PLC Control Cutting System: Hydraulic Cutting System
Highlight:

purlin roll former

,

steel frame roll forming machine

Color Steel Roofing Sheet Corrugated Shape Roll Forming Machine With PLC Control System
1.Color Steel Roofing Sheet Corrugated Shape Roll Forming Machine With PLC Control System
---- We adopted a no stop cutting system to enhance the machine running speed.
---- Hydraulc drive motor provide strength power to make the machine running fast.
---- High precision machining parts ensure machine's high speed.
---- Good service let you no any trouble.
2. Color Steel Roofing Sheet Corrugated Shape Roll Forming Machine With PLC Control System parameters





Suitable Material Material GI, PPGI, PPGL
Width 1000mm
Thickness 0.3-1.0mm
Material of rollers High grade 45# forged steel, surface hard chromium plating
Rows of rollers 18 stations
Material of shafts High grade 45# forged steel
Diameter of shafts 70mm
Material of cutting blade Cr12 Heat Treatment
Cutting Mode Hydraulic Guide Column
Speed 20-25 m/min
H steel 300 mm
Total power 4 kw
Voltage 380V 50HZ 3Phase
Appearance size (About) 9800mm*1300mm*1500mm
Weight(About) 6 tons
Length measurement Encoder
Control mode PLC
Operating mode Button + Touch screen



Machine Components
No. Name QTY
1 Manual uncoiler 1 set
2 Feeding and leveling device 1 set
3 Roll forming system 1 set
4 Hydraulic punching and cutting 1 set
5 Product support frame 1 set
6 PLC Control System 1 set


3. roll forming machine company profiles

Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
4. FAQ (about our roll forming machine)
1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We needyour machines running in order to keep your business running.
3. How to visit your company?
A.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
B.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi (4.5 hours), then we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 12months, if the broken parts can't repair, we can send the new parts replace the broken parts freell, but you need pay the express cost yourself.if after warranty period, we can through negotiationfor to solve the problems, and we supply the technical support for the whole life of the equipment.
5. Can you be responsible for transport?
Yes, please tell me the destination port or address.we have rich experience in transport.
6. You are Trade Company or factory?
We are trade company but we also have own factories. Building Trade Company is just for exporting various types of cold roll forming machines.
7. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free quality assurance.
8. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.
5.Contact details
Contact person: Robin Su
Phone: +86 13292795279
Wechat/whatsapp:+86 13292795279
QQ: 2905612395
We are warm welcome any informations from you!

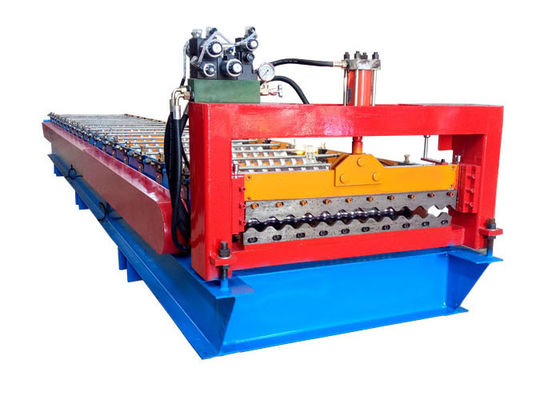

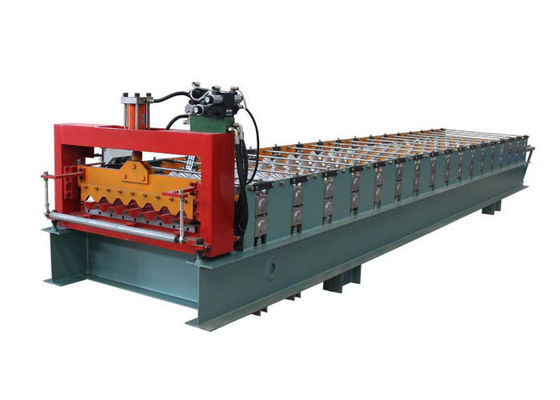

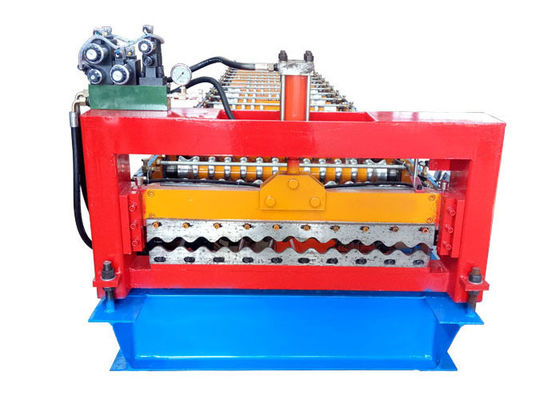

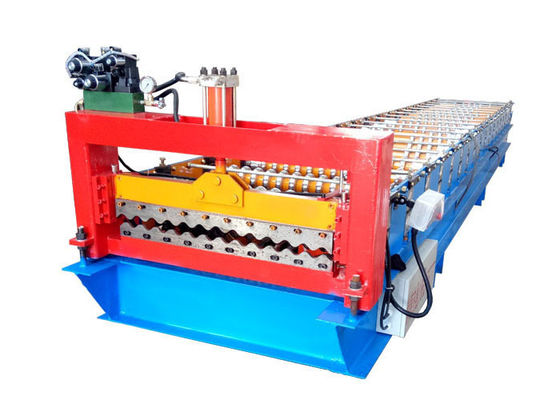

6.Roll forming machine pictures:

Color Steel Roofing Sheet Corrugated Shape Roll Forming Machine With PLC Control System 0
