Product Details:
Payment & Shipping Terms:
|
| Machine Size:: | 5.6*1.4*1.5m | Thickness Of Matrial: | 0.5-1 Mm |
|---|---|---|---|
| Forming Steps: | 12 Steps | Control System: | PLC Automatically Control |
| Name: | Steel Frame Roll Forming Machine | Punching: | Hydraulic Punching System |
| Material Of Shafts: | High Grade 45# Forged Steel | Material Of Blade: | Cr12 Heat Treatment |
| Weight(About): | 1.6tons | Speed: | 4-6 M/min |
| High Light: | hydraulic punching profile roll forming machine,hydraulic punching profile forming machine,4m/min profile roll forming machine |
||

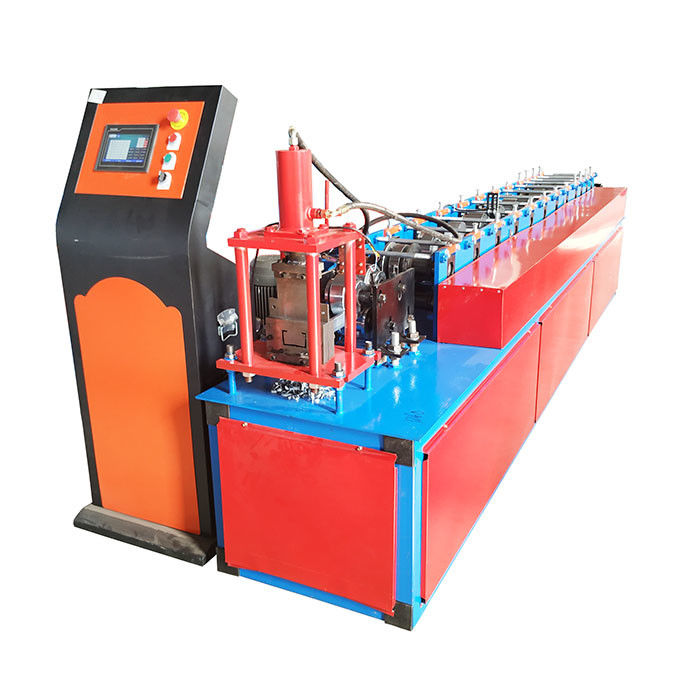

High Performance C-shaped steel profile light keel steel roll forming machine
Product advantages
We are the first hydraulic drive roll forming machine manufacturer in north of China, and the most authoritative and professional hydraulic drive roll forming machine manufacturer in local.
1The finsihed purlins are standard as the profile drawings
2 The finished purlins are straightness and perpendicularity to standard
3 The finished purlins with stamping and punching precision and punching error within 1mm
Processing Flow Diagram of Machine:
Production Process:
Uncoiling→ Feeding material into machine →Roll forming → Auto cutting →Products receiving
Technical parameters:
| Suitable Material | Material | Steel, galvanized steel |
| Thickness | 1.5 mm | |
| Material of rollers | High grade 45# forged steel, surface hard chromium plating | |
| Rows of rollers | 16 stations | |
| Material of shafts | High grade 45# forged steel | |
| Diameter of shafts | 55 mm | |
| Material of blade | Cr12 Heat Treatment | |
| Speed | 10-15 m/min | |
| Side plate thickness | 16 mm | |
| Total power | 5.5 kw | |
| Voltage | 380V 50HZ 3Phase |
| Appearance size (About) | 7000mm*1000mm*1500mm |
| Weight(About) | 2.5 tons |
| Electronic control system | PLC + Touch Screen |
Packing Method:
Main machine is packaged with plastic film
Transportation:
All machines need one 20 feet container to hold
Payment Term:
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time:
Within 35 days after receiving deposit.
Warranty:
Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
FAQ
1.What's your advantage?
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
4.How about the delivery time?
A: Within 35 days after we confirm you requirement.
5.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
