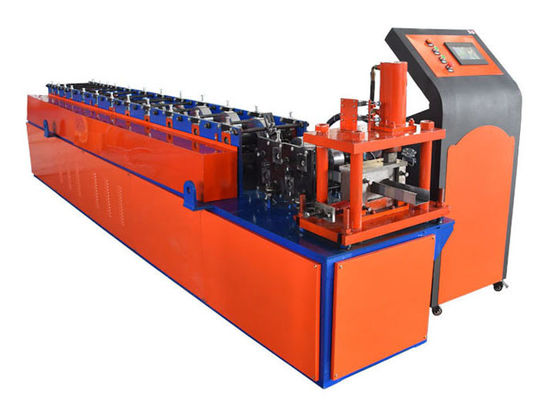

Construction Light Steel Keel Roll Forming Machine Motor Drive For CD / UD Profile

Construction Light Steel Keel Roll Forming Machine Motor Drive For CD / UD Profile

Construction Light Steel Keel Roll Forming Machine Motor Drive For CD / UD Profile
Construction Light Steel Keel Roll Forming Machine Motor Drive For CD / UD Profile Construction Light Steel Keel Roll Forming Machine Motor Drive For CD / UD Profile Construction Light Steel Keel Roll Forming Machine Motor Drive For CD / UD Profile Construction Light Steel Keel Roll Forming Machine Motor Drive For CD / UD Profile

Large Image :  Construction Light Steel Keel Roll Forming Machine Motor Drive For CD / UD Profile

Product Details:
Place of Origin: China
Brand Name: ST
Certification: CE ISO
Model Number: C80
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: contact me
Packaging Details: nude
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 sets per month
Detailed Product Description
Name: Light Steel Keel Roll Forming Machine Speed: 10-15 M/min
Side Plate Thickness: 16 Mm Total Power: 4 Kw
Appearance Size (About): 5000mm*1000mm*1500mm Weight(About): 1.5 Tons
High Light:

stud and track roll forming machine

,

keel making machine

motor drive CD UD profile Light Steel Keel Roll Forming Machine for construction



Part details Item Name Specification
Manual uncoiler carrying capacity 3 tons
Stype Manual
Raw coil Coil material PPGI
Coil thickness 0.3-0.8 mm
Machine body Roller station 10 station
Roller material 45# steel
Shaft material 45# steel
Shaft diameter 75 mm
Machine weight About 4.5 tons
Machine size 4.5*1.5*1.5 m
Speed 8*12 m/min
Cutter Operate Hydraulic cutting
Blade material Cr12
Power Operate Chain transmission
Chain size 1 inch chain
Control system PLC brand Delta made in Taiwan
Motor power 5.5 kw
Hydraulic pump power 4 kw
Voltage 380V 50Hz 3phase
Machine color As ur need
Machine language Chinese and English



Components and Technical Specification

No   Technical Specification
1

Manual Uncoiler



Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:5T

Inner diameter: 500-508mm

2

Feeding Table





Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

3

Main Roll Forming Machine



Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.



4

Hydraulic System





Hydraulic oil: 40#

hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

6 Computer Control Cabinet

The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use

PLC:EURA



Shearing Mechanism



It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12,quenching treatment

7

Output table



It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.







Construction Light Steel Keel Roll Forming Machine Motor Drive For CD / UD Profile 0Construction Light Steel Keel Roll Forming Machine Motor Drive For CD / UD Profile 1
