High Strength Light Steel Keel Roll Forming Machine Easy Operation For Omega Profile

High Strength Light Steel Keel Roll Forming Machine Easy Operation For Omega Profile
High Strength Light Steel Keel Roll Forming Machine Easy Operation For Omega Profile High Strength Light Steel Keel Roll Forming Machine Easy Operation For Omega Profile High Strength Light Steel Keel Roll Forming Machine Easy Operation For Omega Profile

Large Image :  High Strength Light Steel Keel Roll Forming Machine Easy Operation For Omega Profile

Product Details:
Place of Origin: Cangzhou, China
Brand Name: SHITONG
Certification: ISO,CE
Model Number: steel frame-M
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact us
Packaging Details: 1. one 20ft container for loading one set machine with manual decoiler; 2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film
Delivery Time: 52 working days
Payment Terms: L/C,T/T
Supply Ability: 26 sets/month
Detailed Product Description
Certification: CE/ISO9001 Tile Type: M Type Frame
Machine Weight: 3.5 Tons Motor Brand: Lichao, Shanghai
Operate Style: Automatic Cutting Blade: Cr12MoV
Cutting Blade Material: Cr 12 High Grade Steel Structure: Column Type
High Light:

stud and track roll forming machine

,

keel making machine

galvanized drywall used omega profile light gauge steel framing cold roll forming machine equipment



1. Usage And Introduction Of This Production Line



The complete roll forming gauge machine line , includes manual decoiler, main body of roll forming machine, hydraulic cutting system, PLC control system and discharge table. The users can set order as per their requirement to produce the special pieces and length products. This machine line can work automatically by PLC control system. It is easy to operate and running stably.



uncoiler 1set
coil sheet guiding device 1set
main roll forming system 1set
punching device 1set
cutting device 1set
Hydraulic station 1set
PLC control system 1set
support table 1set



2. The roll forming machine parameters

Item Description
Working efficiency 20-40 m/min
Thickness of Material 0.4--0.7mm(can be changed according to customers need)
Control system PLC(The brand can be choose)
Uncoiler system 1.5Ton Manual Operation(1250mm width)
Forming by rolling 9 rows (According to the machine design)
Roller material Cr12MOVO
Main part power 3kw
Hydraulic motor power 3kw
Hydraulic pressure 12Mpa
Scissor material Cr12Mov, herd steel HRC 58-62°C
length tolerance ±1.5mm
voltage 380V, 50HZ,3 phase (adjustable by customer needs)
Frame form Memorial arch
Driving Method Chain
Color blue(adjustable)
weight about 2.2T

3. Our machine advantages

1. Low cost, light weight but high strength, short building period, and re-cycle use

2. Save material , no waste.

3. Easy operation, low maintenance cost

4. Infinite sizing(any size within machine range),help to save material

5. Optional Punch hole at any position of purlin web side and flange side



Some relative terms we can provide:

1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

Malaysia ,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.



4. FAQ (about our roll forming machine)

4.1:How to maintenance?
A:If using frequently,best coating lubricant on the chain and two ends of the shaft every month, replace the hydraulic oil every 1-2 years.

4.2:What can you do if the machine broken?
A:Our machine's warranty period is 1 year,

if the broken parts can't repair,we can free send the new parts replace the broken parts to you except the solenoid valve,the solenoid valve you must pay the express cost yourself.

if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.

4.3:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.we have rich experience in transport.

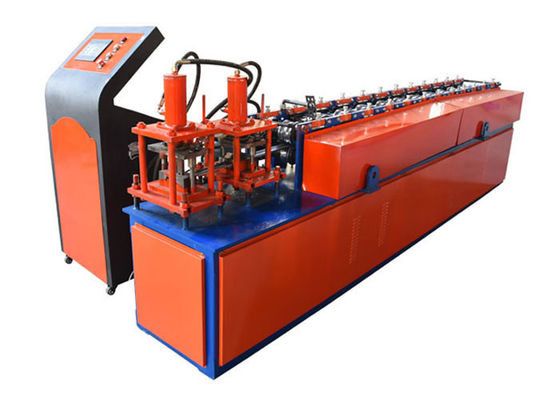

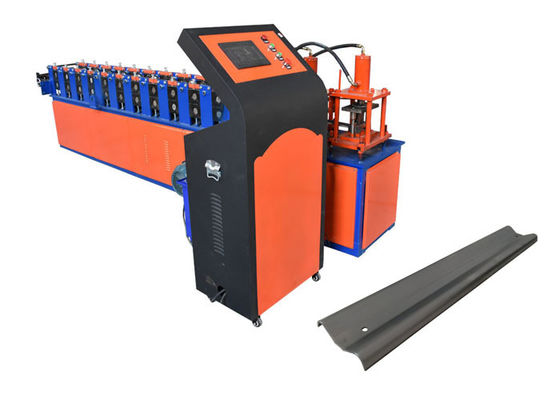

5. Roll forming machine pictures:

High Strength Light Steel Keel Roll Forming Machine Easy Operation For Omega Profile 0High Strength Light Steel Keel Roll Forming Machine Easy Operation For Omega Profile 1High Strength Light Steel Keel Roll Forming Machine Easy Operation For Omega Profile 2
