Cold Steel C And Z Purlin Machine , Profile Rolling Shutter Strip Making Machine

Cold Steel C And Z Purlin Machine , Profile Rolling Shutter Strip Making Machine

China Cold Steel C And Z Purlin Machine , Profile Rolling Shutter Strip Making Machine supplier
Cold Steel C And Z Purlin Machine , Profile Rolling Shutter Strip Making Machine supplier Cold Steel C And Z Purlin Machine , Profile Rolling Shutter Strip Making Machine supplier Cold Steel C And Z Purlin Machine , Profile Rolling Shutter Strip Making Machine supplier

Large Image :  Cold Steel C And Z Purlin Machine , Profile Rolling Shutter Strip Making Machine

Product Details:

Place of Origin: CHINA
Brand Name: shitong
Certification: CE/ISO9001
Model Number: C 80-300

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: 15500$
Packaging Details: main machine is nude
Delivery Time: 30 DAYS
Payment Terms: L/C, T/T
Supply Ability: 30 SETS PER MONTH
Contact Now
Detailed Product Description
Weight: 11Ton Warranty: 2 Years
Name: C And Z Purlin Machine After-sales Service Provided: Engineers Available To Service Machinery Overseas
Dimension(l*w*h): 7.5mx1.4mx1.3m Production Capacity: 25m/ Min
Power(w): 22kw Tile Type: Galvanized
Control System: PLC With Touch Screen Roller Material: Cr12mov

Fully Automatic Cold Steel Strip Profile Used C Z Purlin Roll Forming machine



quick detail:

Type:                                        Purlin Forming Machine

Production Capacity:               12-15meter/min

Certification:                             CE

Condition:                                 New

Tile Type:                                  Steel

Place of Origin:                         Hebei, China (Mainland)

Voltage:                                    380v 50hz 3 phase

Dimension(L*W*H):                  7.8*1.5*1.3

After-sales Service Provided:   Engineers available to service machinery overseas

forming speed:                         8-15 m/minute

Diameter of Shaft:                    70-90mm

Controlling system:                  PLC control

warranty:                                  one year

material:                                   prepainted or galvanized steel,aluminum

Middle plate thick:                    12-20mm

Control system:                        PLC(imported Brand)



Product Description
Hydraulic wring C/Z purlin roll forming machine
Items Specifications
Material of coil Material Thickness 2.5-3mm
Main frame Material 400H-beam steel
Wall plate welded steel plate
Reducer 8# cycloid reducer
De-coiler Weight 3 ton manual decoiler
Roll Forming system Rolling Speed 0-12 m/min
Roller Stations About 14 stations forming
Roller Material GCR15 steel with Hard chromium plated on the surface
Diameter of shaft 80 solid
Shaft Material 45# Steel Diameter 80mm shaft
Maim Motor Power 15 kw
Hydraulic cutting Power 5.5 kw
Cutting Material Of Cutting CR12 with quench treatment
Tolerance ±1mm
Cutting blade hydraulic shearing
Electrical control system Electric Source 380V, 50HZ, 3phase
Control System PLC(Delta) with touch screen
Weight About 6 tons
Way Of Drive By chain(2.0 inch) link bearing model 6210
Size of machine 8.2m*1.2m*1.2m

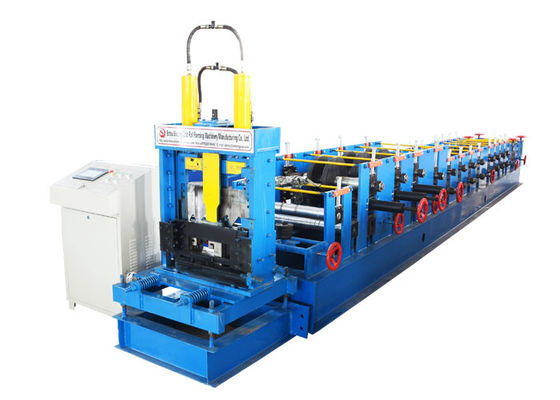

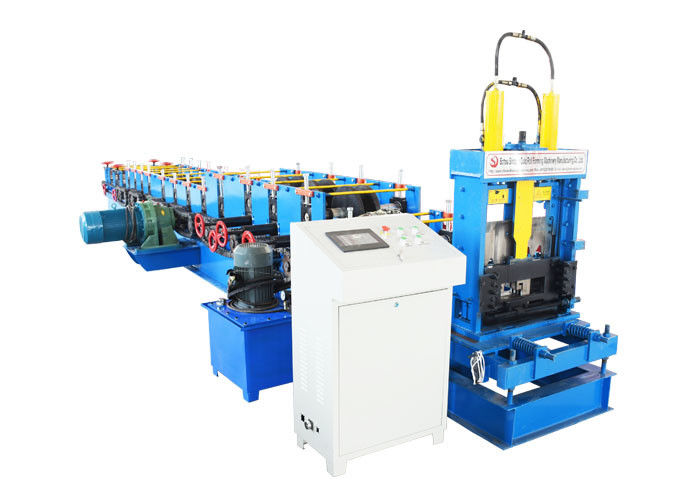

machine pictures:

Cold Steel C And Z Purlin Machine , Profile Rolling Shutter Strip Making MachineCold Steel C And Z Purlin Machine , Profile Rolling Shutter Strip Making MachineCold Steel C And Z Purlin Machine , Profile Rolling Shutter Strip Making Machine
