Product Details:
Payment & Shipping Terms:
|
| Certification: | CE/ISO9001 | Name: | C Purlin Roll Forming Machine |
|---|---|---|---|
| Voltage: | 380V/3Phase/50HZ | Motor Brand: | Lichao, Shanghai |
| Production Capacity: | 8-12m/min | Forming Stations: | About 15 Stations |
| Cutting Blade Material: | Cr 12 High Grade Steel | Control System: | PLC Control System |
| High Light: | purlin making machine,steel frame roll forming machine |
||
Automatic galvanized steel C / Z purlin roll forming machine with CE / ISO9001 / SGS certification
1. Instruction of the roll forming machine production line
The C Z purlin roll forming machine line has high strength with big wave length. It adheres well to concrete. Used on high building, it not only saves steel mold plate, but also reduces the weight of storey. With the same bearing capacity, it economized steel and cuts down investment accordingly.
We can also supply the customized machines.
Applications of Floor Decking Roll Forming Line:
The finished products are widely used in floor flat, after make embossing of the sheet, it will increase the strength between the steel and concrete, thereby increasing the floor of the fastness.
The components that each set machine includes:
| Hydraulic decoiler ( 5 Tons ) | 1 unit |
| Main Roll Forming Machine | 1 unit |
| Cutting Device | 1 unit |
| Electrical System with PLC Control | 1 unit |
| Hydraulic station | 2 unit |
| Auto stacker | 1 unit |
2. The roll forming machine parameters
| Suitable Material | Cold-rolled steel strip and heat-treated galvanized steel strip |
| Thickness of raw material | 1.5-3.2mm (235-345Mpa) |
| Size of C purlin | 100-305mm adjustable (special size available) |
| Material of roller | Cr12 mould steel being quenched treatment,HRC58-60 |
| Cr12 mould steel with quenched treatment, HRC58-60 | |
| Material of shaft | High quality 45# steel with heat treatment. |
| Roller grinder milling. | Cr12 mould steel with quench treatment, HRC58-60 |
| Power Requirement | Main motor power: 5.5X4 Kw(Depend on final design) |
| Hydraulic station power: 5.5Kw (Depend on final design) | |
| Diameter of shaft for rollers | 82mm |
| Controlling system | Mitsubishi PLC & converter |
SHITONG specializes in producing and designing each kind of roll forming machine such as roll forming machines for metal roofing tiles, wall panels. While consummating the old model, with the continuous efforts of our scientific researchers, our company developed one after another of Automatic Cutting and Punching C-type Steel Roll Forming Machine, Automatic Cutting and Punching Z-type roll forming machine, the production line of Glazed Tile Roll Forming Machine, Automatic Panel Machine, Guardrail Forming Machine, Shutter Door Forming Machine, which have the advanced technical level.
Our equipment keeps a foothold in the domestic market, at the same time, we've developed international market in many countries. Having exported our equipment to Europe, Africa, South America, Russia, Burma, Pakistan, Sri Lanka, Uzbekistan and other countries and regions, we have received high praise from the foreign customers.
4. Our after sales service
(1) Once you paid the deposit, we will start the production as soon as possible. When the machine is finished, you can come to check the machine, we will arrange your accommodation and relative schedule. If you don't come, we can test the machine and send you test video. It's no problem.
(2) Warranty: 1 year and life-long maintenance
*Installation and debugging: We will send professional engineer to make installation and debugging, Buyer pay our engineer each one 100 USD/day, and provide accommodation, food and the round-trip ticket fee.
* Installation Days: about 5-7 days

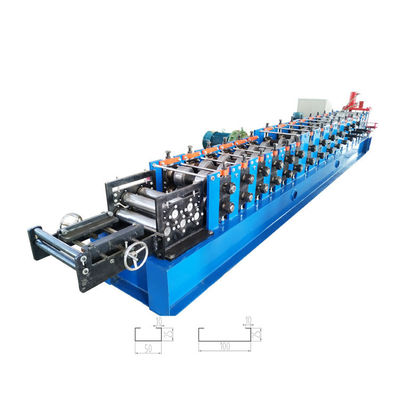

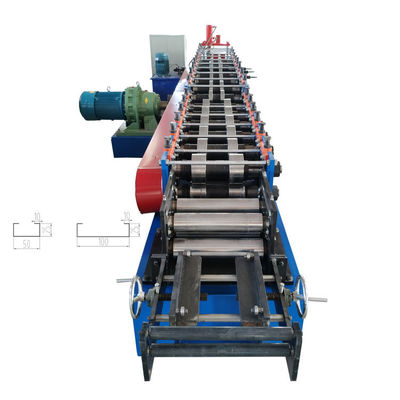

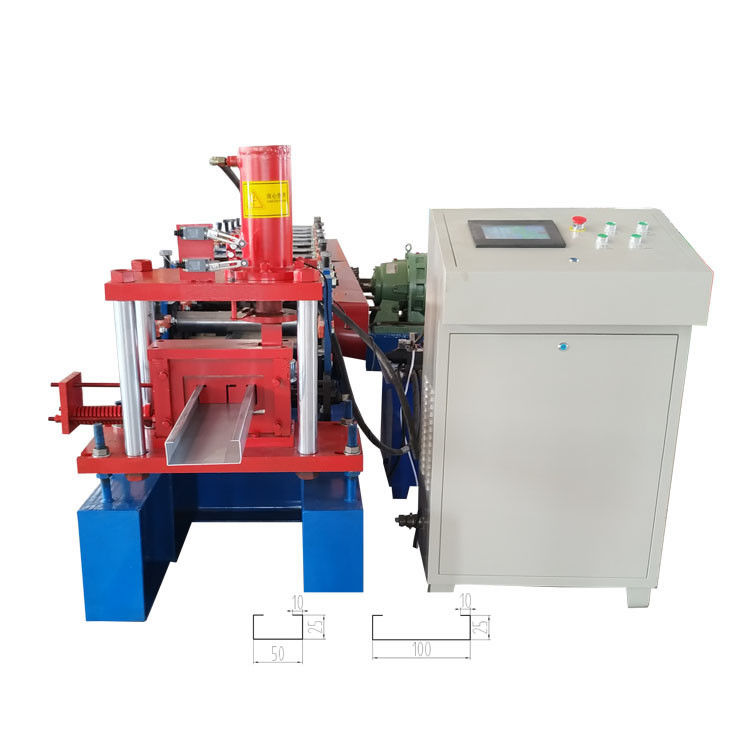

5. Roll forming machine pictures:
6. FAQ
6.1:- About the after service, if the machine has problem out of guarantee?
- All the machines are one guaranteed, life maintenance. It means if you order our machine, you will be our customer for lifetime, you can ask us anytime about the machine issues.
6.2:- Can you finish the machine during the delivery time?
- We will finish the machine in time according to determined lead time.
6.3:- Can you provide some spare parts?
- Yes, of course. The quick-wear parts are sent to you together with the machine.
